Architectural Awning / Casement Window

Commercial

Series 466

Architectural Awning / Casement Window

Share this product​

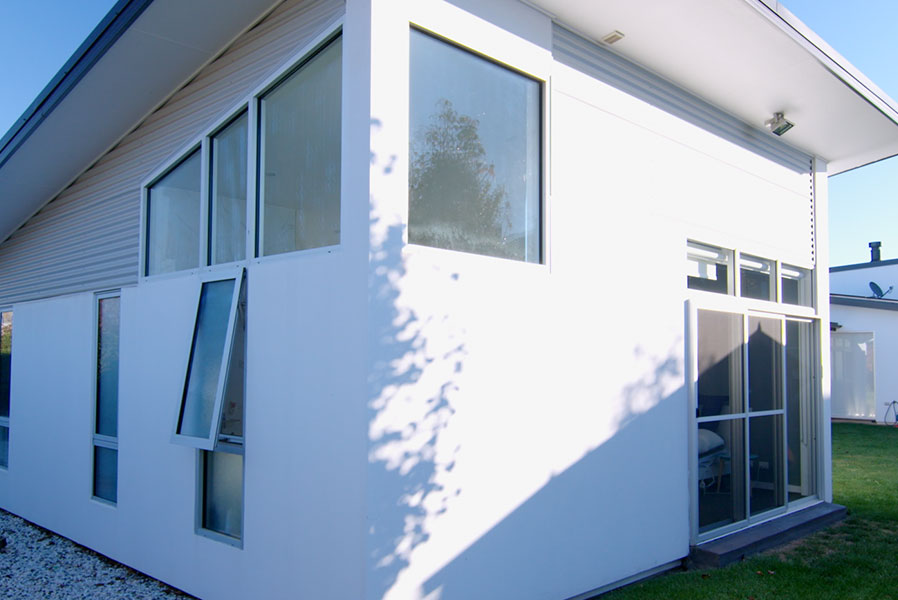

Superior elegance, performance and style are the hallmarks of the Elevate™ Architectural Awning and Casement windows.

Thank you for reading this post, don't forget to subscribe!
  • Designed to carry large expanses of glass and 24mm thick double-glazing, these elegant, architectural awning and casement windows can withstand the harshest of environments and keep you safe from the elements.
  • Awning sashes can be fitted with cam handles, manual chain winders or concealed electric winders.
  • Awning and casement designs both accept handy flyscreens for year-round protection from creepy crawlies.
  • These frames are easily installed into brick veneer and cavity brick building designs. So convenient!
  • Cleverly designed to allow for internal or external glazing – a great feature if the windows are hard to reach.

Product Details

Brochure
Colour(Powder Coat Range).pdf

Colour(Powder Coat Range).pdf

Cancel
Download
WERS Ratings WERS Ratings

Product Size

  • Maximum Frame Height (mm) Various
  • Maximum Panel Width (mm) Various
  • Maximum Glass Thickness (mm) ≤ 24

*Maximum Frame Height and Panel Widths indicated are interdependent and subject to individual site conditions.

Energy Performance

  • Uw Range 4.2 - 7
  • SHGC Range 0.14 - 0.57

AS2047

Tested + Certified

ACOUSTICS

Tested + Certified

BAL40

Tested + Certified

Key Features

  • This 102mm thick commercial grade awning window has been designed with bold frame lines and thick (strong) sashes that can carry heavy glass including 24mm thick double glazing.
  • The perimeter frame has been designed to make installation into brick veneer and cavity brick easier with built-in nailing fins (weather bars).
  • The extra strong sashes allow large sash windows to be fabricated for high wind load areas.
  • Splayed or square glazing beads available.
  • Awning sashes can be fitted with cam handles, manual chain winders or concealed electric winders. The winder options suit fixed flyscreen installation.
  • Sashes are hung on heavy duty four-bar stainless steel or aluminium stays.
  • Sashes will accept a variety of glass thicknesses from 4mm single panes to 24mm insulating glass units.
  • Two non-facing (recessed) sash designs cover internal and external glazing.
Operation

Operation

466 manual chainwinder comes standard with stainless chain, body can be coloured to match.
Sub-Sill

Sub-Sill

Unique self-draining sub-sill designed for reveal installation if required.
Sash

Sash

466 sashes can be supplied with internal bead or external as detailed.
Sill

Sill

Custom sub-sill (flashing tray) standard on 466 windows.
Stays

Stays

The 466 incorporates heavy duty friction or non-friction stays.
Drainage

Drainage

Custom head and transom with concealed drainage designed to shed water more efficiently.
