Architectural Awning/Casement Window with Truth™ Hardware

Commercial

Series 467

Architectural Awning/Casement Window with Truth™ Hardware

Share this product​

High performance windows for secure and convenient operation in any Australian environment.

Thank you for reading this post, don't forget to subscribe!
  • These high-performance CentreGLAZE awning and casement windows are designed to accept Truth™ Hardware for large installations. It’s all about giving you the security you demand along with ease of operation. In fact, the scissor-type winders require 50% less effort to operate than conventional chain winders and can be combined with stile latches to provide additional locking points for even more strength and security.
  • Extra-strong window sashes carry large glass spans to maximise your available view without compromising on strength or performance.
  • They’ve also been successfully tested to 450Pa water resistance so they’re ideal for any Australian environment.
  • Fixed sidelights/lowlights and highlights can be single or double glazed for better energy performance and comfort.
  • Installation into brick veneer and cavity brick has been made easier with built-in nailing fins (weather bars) in the perimeter frame.

Product Details

Brochure
Colour(Powder Coat Range).pdf

Colour(Powder Coat Range).pdf

Cancel
Download
WERS Ratings WERS Ratings

Product Size

  • Maximum Frame Height (mm) Various
  • Maximum Panel Width (mm) Various
  • Maximum Glass Thickness (mm) ≤ 24

*Maximum Frame Height and Panel Widths indicated are interdependent and subject to individual site conditions.

Energy Performance

  • Uw Range 4.2 - 7
  • SHGC Range 0.14 - 0.57

AS2047

Tested + Certified

ACOUSTICS

Tested + Certified

Key Features

  • This high performance awning and casement window has been designed to accept Truth™ Hardware. This allows us to offer very large casements, awnings and fixed windows fitted with scissor type winders with jamb to stile latches that secure the sashes in the closed position.
  • The extra strong sashes allow large sash windows to be fabricated for high wind load areas. Successfully tested to resist 450Pa water.
  • Fixed sidelights/lowlights and highlights can be single or double glazed.
  • The perimeter frame has been designed to make installation into brick veneer and cavity brick easier with built-in nailing fins (weather bars).
  • The Truth™ hardware can resist very high negative wind loads with the use of winders and side latches.
  • Series 467 accepts flyscreens that tuck into head and sill recess.
  • On casements it’s possible to clean the external glass face when the sash is in the 90º open position.

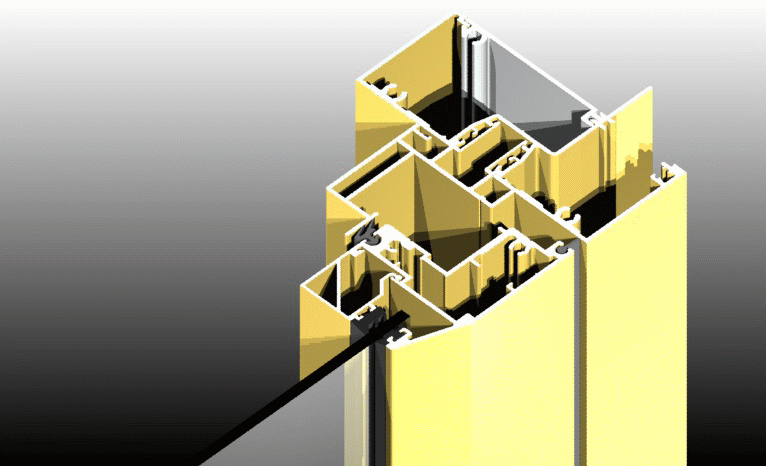

Framing

Framing

Custom sub-sill (flashing tray) standard on 467 windows.
Sashes

Sashes

Custon sash designed to accept Truth™ hardware.
Jambs

Jambs

Nailing fin jamb designed to go into brick veneer construction.
Glazing

Glazing

Accepts glazing up to 25mm double glazed units.
Corners

Corners

467 series can be coupled and adapted in various junction details.
Drainage

Drainage

Concealed drainage designed to shed water more efficiently.

Compatible Hardware​

Complementary Products​​

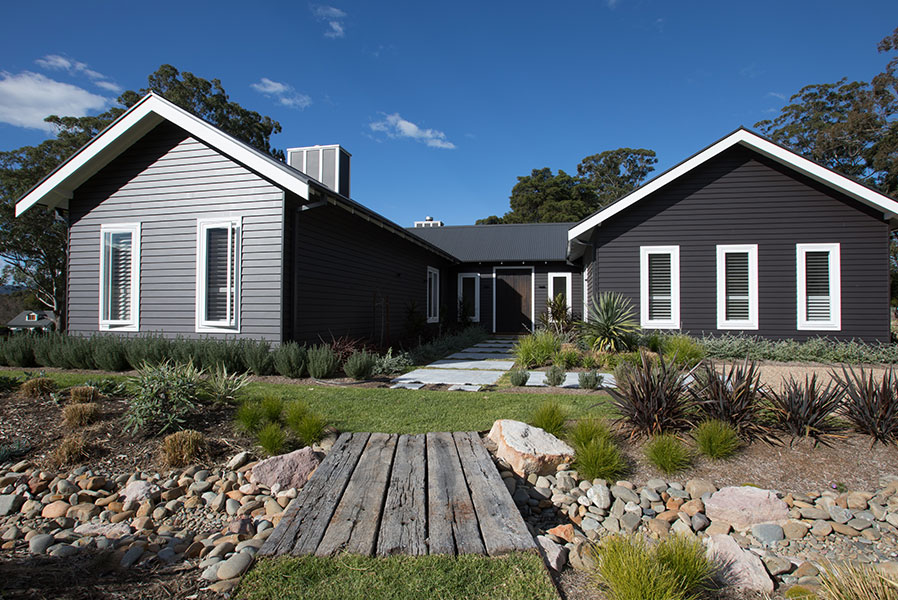

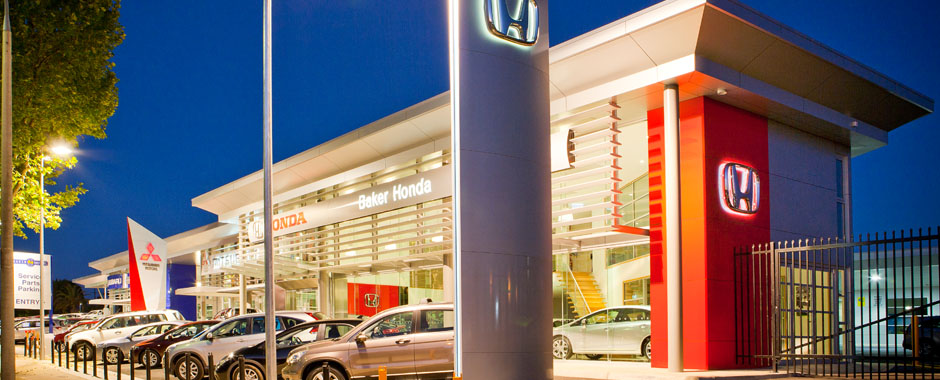

Project Features
