Architectural Sliding Window (double sash design)

Commercial, Residential

Series 462

Architectural Sliding Window (double sash design)

Share this product​

Commercial-grade sliding windows boasting bold frames and thick, strong sashes designed to carry large spans of heavy duty glass, including double glazing for unobstructed views even in high wind areas.

Thank you for reading this post, don't forget to subscribe!
  • Integrated PVC seals provide water resistance tested to 300Pa & 650Pa (configuration may determine rating) and are fully compliant with air conditioning energy requirements.
  • Flyscreens can be fitted for complete protection from the elements, plus the clever fixed and opening sashes can be installed, replaced or reglazed from the inside for easy maintenance.
  • Available in a wide variety of configurations with and without highlights and/or lowlights, these windows can be fitted easily into brick veneer and cavity brick buildings.
  • Surface or mortice deadlocks can also be fitted for a smooth, flush surface finish.

Product Details

Brochure
Colour(Powder Coat Range).pdf

Colour(Powder Coat Range).pdf

Cancel
Download
WERS Ratings WERS Ratings

Product Size

  • Maximum Frame Height (mm) 1600
  • Maximum Panel Width (mm) 1350
  • Maximum Glass Thickness (mm) ≤ 20

*Maximum Frame Height and Panel Widths indicated are interdependent and subject to individual site conditions.

Energy Performance

  • Uw Range 3.3 - 6
  • SHGC Range 0.18 - 0.66

AS2047

Tested + Certified

ACOUSTICS

Tested + Certified

BAL40

Tested + Certified

Key Features

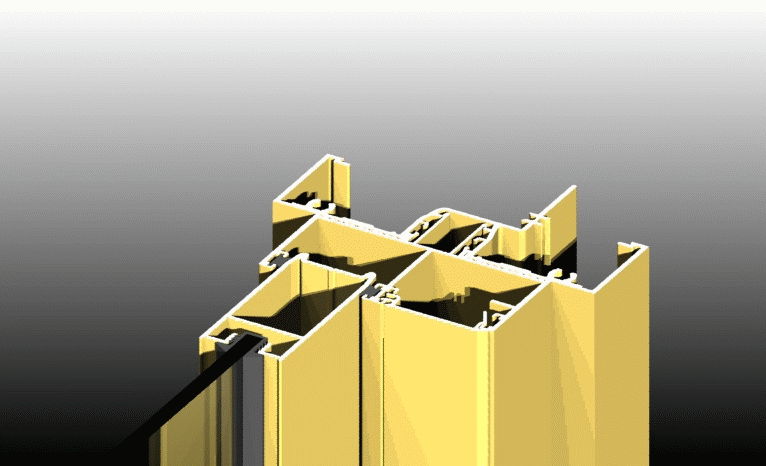

  • 102mm thick commercial grade sliding window, incorporates bold frame lines and thick (strong) sashes that can carry thick heavy glass, including double glazing.
  • The perimeter frame designed to make installation into brick veneer and cavity brick easier with built-in nailing fins (weather bars).
  • Extra strong sashes allow large sash windows to be fabricated for high wind load areas.
  • Double sash design with the external sash fixed.
  • Both fixed and opening sashes can be installed, replaced or reglazed from inside.
  • Large variety of sliding window combinations possible (SF, FS, SFS, SS or FSSF) with and without highlights and or lowlights.
  • Sliding windows can be fitted with surface or mortice deadlocks.
  • The Series 462 sliding window sashes run on heavy duty wheel carriages.
  • Flyscreens can be fitted. When there is no requirement for flyscreens, frame is fitted with cavity closers so there are no unwanted recesses.
  • Co-extruded PVC sill seal keeps water out of the system.
  • Built-in proprietary ball valve drainage to transfer any water that may get into the drainage trough to the tubular sump sill.
  • This sliding window will resist up to 650Pa water infiltration and comply with air conditioning requirements.
Glazing

Glazing

The 462 can accept varying thicknesses of glass up to 20mm.
Hardware

Hardware

Custom ANDO™ mortice lock with push button release. Face plate coloured to match.
Comparison

Comparison

The wide 44mm Series 462 jamb compared to conventional residential sliding window.
Nailing Fins

Nailing Fins

Most AWS Commercial products can incorporate nailing fins for residential construction.
Drainage

Drainage

The proprietary ball valve allows water out of sill while limiting air blow-back.
Rollers

Rollers

Sashes slide on extra heavy duty, large diameter wheels. With double bogey carriages under heavy sashes.
