Commercial, Residential

Series 753

ComfortEDGE™ Sliding Window

Share this product

The ComfortEDGE™ Sliding Window from the Vantage® Series delivers a highly energy efficient window using embedded technology. This significantly minimises exposed aluminium and drastically reduces heat transfer in and out of the building. Ideal for residential applications using standard aluminium framing.

Thank you for reading this post, don't forget to subscribe!

Patented technology using a fully embedded frame
Excellent energy performance
Incredible insulation of your home
Single and double reveal options
Adjustable, custom quad rollers for long term durability
Revolutionary in performance, styling and affordability

Product Details

Brochure

Colour(Powder Coat Range).pdf

ComfortEDGEu2122.pdf

Cancel

Download

WERS Ratings

Product Size

Maximum Frame Height (mm) 1500
Maximum Panel Width (mm) 2000
Maximum Glass Thickness (mm) ≤ 20

*Maximum Frame Height and Panel Widths indicated are interdependent and subject to individual site conditions.

Energy Performance

Uw Range 2.6 - 3.6
SHGC Range 0.23 - 0.62

AS2047

Tested + Certified

BAL40

Tested + Certified

Energy
Efficient Design Solution

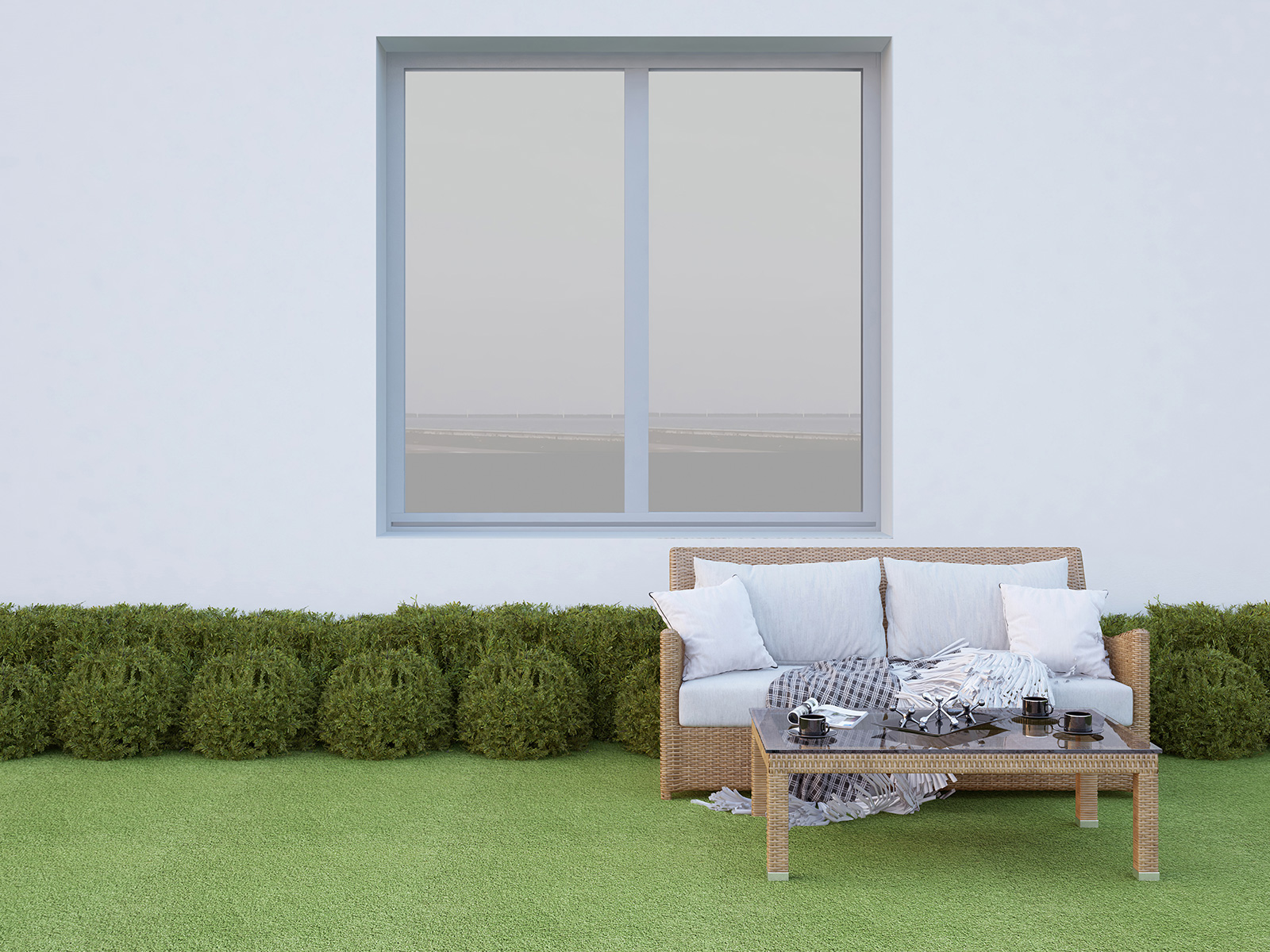

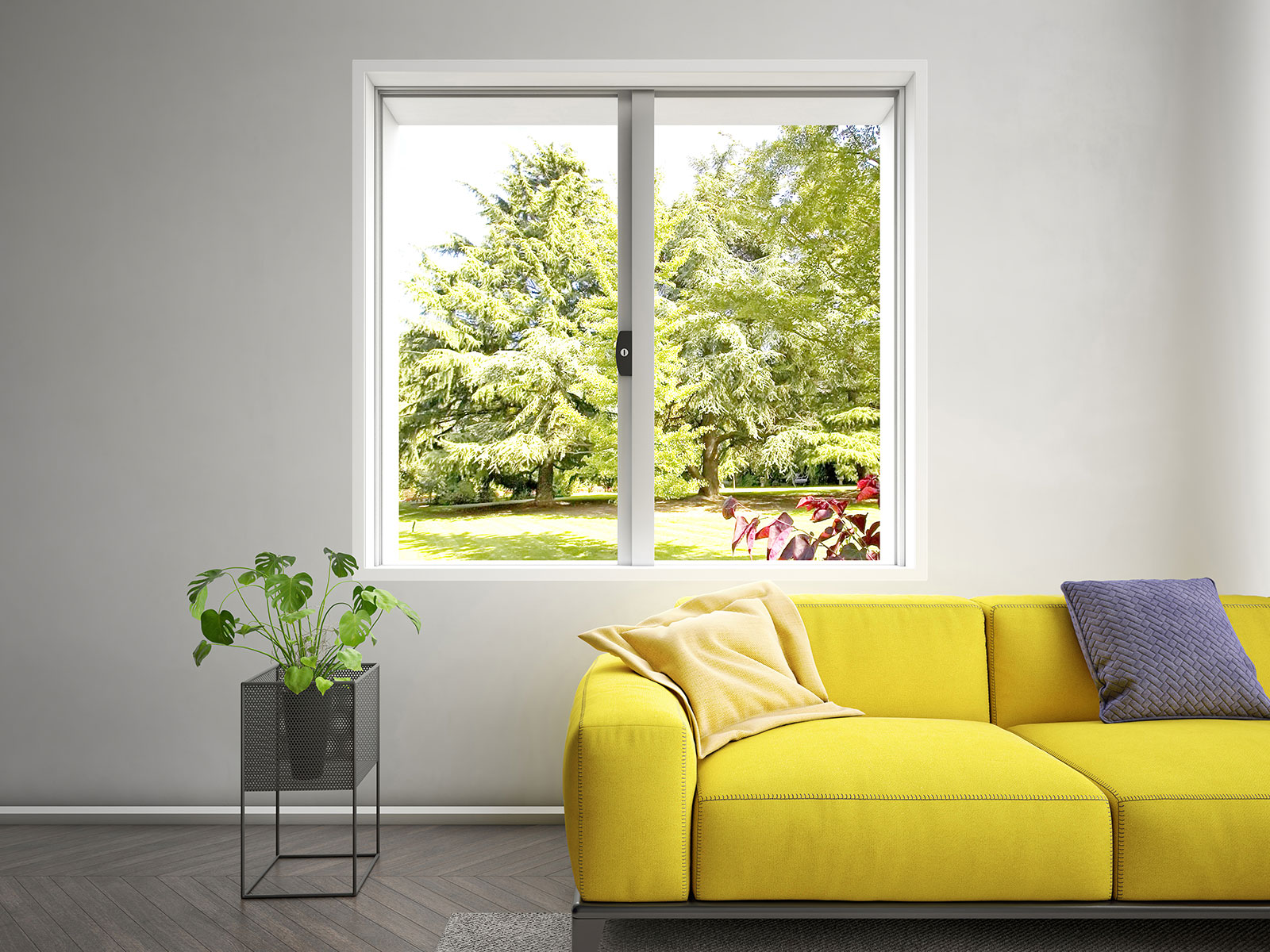

Gallery

Key Features

Series 753 ComfortEDGE™ sliding window is an energy efficient window system designed to have minimised sightline from the aluminium frame and sash.
Series 753 ComfortEDGE™ sliding windows have been successfully tested for compliance with Australian Standard AS 2047.
The sash is concealed below the reveal and maintains the same sightlines as the fixed lights. This greatly enhances thermal performance by reducing the exposed internal boundary condition and also achieves a clean minimalist architectural look on both the inside and outside.
The window has a unique patent thermal seal fitted to the essential top single reveal that greatly reduces thermal transmission through the window.
Water resistance rating of 300Pa allows fabricators to use this sliding window in most exposed locations in Australia.
Optional meeting stiles, mullions and transoms strengths cover a large variety of design wind load areas.
Will accept 18 to 20mm IGU’s allowing the inclusion of high performance glazing systems.

Centre Mullion Lock

Centre mullion key locks or alternate jamb locks are available to ensure security and peace of mind.

Concealed Sash

Concealed below the reveal, the sash maintains the same sightlines as the fixed lights for greatly enhanced thermal performance.

Patented Thermal Seal

The window's unique, patent thermal seal fitted to the essential top single reveal greatly reduces thermal transmission through the window. Concealed sashes give a clean minimalist architectural look on both the inside and outside.
