Home > Products > Commercial Stacking Sliding Door

Commercial

Series 442

Commercial Stacking Sliding Door

Share this product

In the market for the perfect door for your extra-wide building entrance? This amazing, commercial-grade stacking sliding door delivers strength, security and beauty – all in one.

Thank you for reading this post, don't forget to subscribe!

Two and three-panel configurations optimise your view.
Available with a 90° corner opening configuration for uninterrupted transition to the great outdoors.
High-performance rollers mean you can look forward to smooth, quiet operation.
These sliding doors comply with Australian air-conditioning standards to achieve better energy performance and comfort.
Tested for water resistance to 450Pa so they’re suitable for use in all Australian environments.
Compatible with external sliding fly screen doors to keep those creepy crawlies at bay all year round.

Product Details

Brochure

Care & Maintenance(For your Windows & Doors).pdf

Colour(Powder Coat Range).pdf

Elevateu2122(Aluminium Systems).pdf

Hardware(For Windows & Doors).pdf

Cancel

Download

WERS Ratings

Product Size

Maximum Frame Height (mm) 2700
Maximum Panel Width (mm) 1350
Maximum Glass Thickness (mm) ≤ 20

*Maximum Frame Height and Panel Widths indicated are interdependent and subject to individual site conditions.

Energy Performance

Uw Range
SHGC Range

AS2047

Tested + Certified

ACOUSTICS

Tested + Certified

BAL40

Tested + Certified

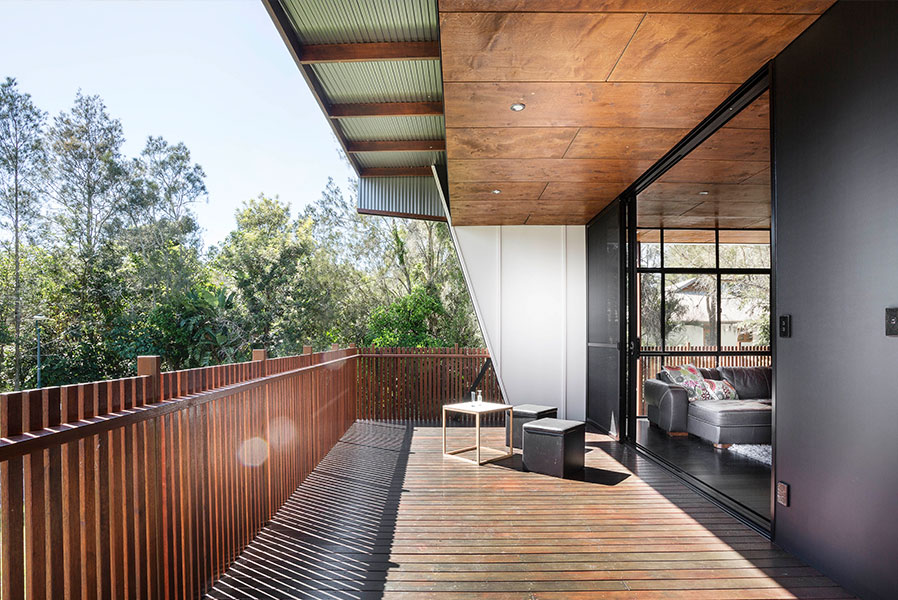

Gallery

Key Features

102mm commercial framing to accept 26mm thick door panels.
Available in a wide range of 2 and 3 panel configurations including corner opening.
Panels accept a variety of glass thickness from 4mm to 20mm IGUs. Dedicated sash rail and stiles for 8.38mm, 10.38mm laminated, and 16mm IGUs.
Compatible with all CentreGLAZE™ and FrontGLAZE™ framing.
Complies with the air-conditioning requirements of relevant Australian standards.
Tested to 450Pa water resistance.
Compatible with external sliding flydoors.
Can be configured as XF, FX, FXF, XFF, FFX, FXXF, XXF, FXX or FXXXXF
No visible drain holes when viewed from the inside.
Ideal for applications requiring competitive priced sliding doors with standard moderate panel sizes.

Diverter

Meeting style turbulence diverter fitted on doors where water resistance greater than 300Pa.

Sub-head

Heavy duty 50mm deep sub-head available for high wind load areas.

Sub-sill Flap

Sub-sill drainage slots protected by co-extruded santoprene flap.

Sill Toe Support

Front toe locks frame into sub-sill.

Optional Flydoor

Optional sliding flydoors available to be fitted on the outside. Flydoors are available with a variety of infills.

Sub-sill

The Series 442 is always fitted into the sub-sill.

Compatible Hardware

1 / 1

ANDO™

Single Point Surface Mounted Sliding Door Lock

ANDO™

Twin Point Surface Mounted Sliding Door Lock

ANDO™

Slimline Surface Mounted Sliding Door Lock

MIRO™

Sliding Door Lock

Complementary Products

1 / 1

Project Features

Register for SpecifyAWS

Gain access to essential tools and resources for your projects, including downloadable files for AutoCAD, REVIT, CNC software, ArchiCAD, and more. Register as a Specifier or Fabricator to streamline your workflow and enhance your project outcomes with our expert support and comprehensive product details.

REVIT

Collaborate on BIM projects with advanced design and documentation.

AutoCAD

Draft precise 2D and 3D designs with industry-leading tools.
