Commercial Stacking Sliding Door (150mm Framing)

Share this product

Are you thinking big? Really big? Then the Elevate™ Commercial Stacking Sliding Door is for you!

Thank you for reading this post, don't forget to subscribe!

Its 150mm commercial framing and high-performance, whisper-quiet rollers make it perfect for large projects and wide door spans.
Choose from a range of three panel configurations, including a 90° corner opening for a seamless connection with the outdoors.
Designed to accept a variety of glass thicknesses, including double glazing, these doors are compatible with external sliding fly screen doors to keep nature at bay.
Compliant with the Australian air-conditioning standards requirements to achieve better energy performance and comfort.
Tested for water resistance to 450Pa making them a great choice in any Australian environment.

Product Details

Brochure

Care & Maintenance(For your Windows & Doors).pdf

Colour(Powder Coat Range).pdf

Elevateu2122(Aluminium Systems).pdf

Hardware(For Windows & Doors).pdf

Cancel

Download

WERS Ratings

Product Size

Maximum Frame Height (mm) 2700
Maximum Panel Width (mm) 1200
Maximum Glass Thickness (mm) ≤ 20

*Maximum Frame Height and Panel Widths indicated are interdependent and subject to individual site conditions.

Energy Performance

Uw Range 3.2 - 6
SHGC Range 0.22 - 0.67

AS2047

Tested + Certified

ACOUSTICS

Tested + Certified

BAL40

Tested + Certified

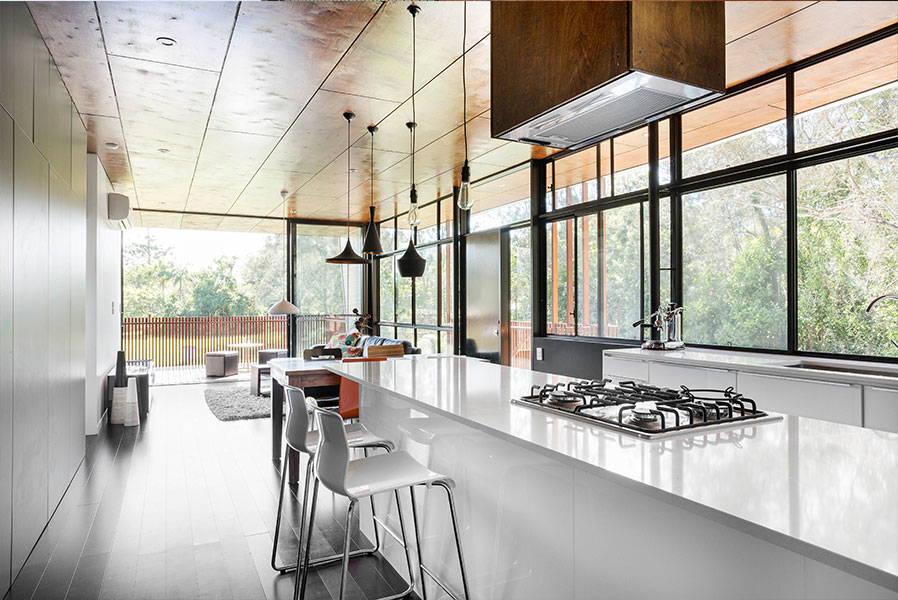

Gallery

Key Features

150mm commercial framing to accept 26mm thick door panels.
Available in a range of 3 panel configurations, including corner opening.
Panels accept a variety of glass thickness from 4mm to 20mm IGUs. Dedicated sash rail and stiles for 8.38mm, 10.38mm laminated, and 16mm IGUs.
Compatible with all CentreGLAZE™ and FrontGLAZE™ framing.
Complies with the air-conditioning requirements of relevant Australian standards.
Tested to 450Pa water resistance.
Compatible with external sliding flydoors.
Can be configured as XXF, FXX or FXXXXF.
No visible drain holes when viewed from the inside.
Ideal for applications requiring competitive priced sliding doors with standard moderate panel sizes.

Sub-head

Heavy duty 50mm deep sub-head available for high wind load areas.

Sill Support

642 sill support strengthened via T support allowing for larger panels.

Flydoor

Optional sliding flydoors available to be fitted on the outside. Flydoors are available with a variety of infills.
