Residential

Series 548B

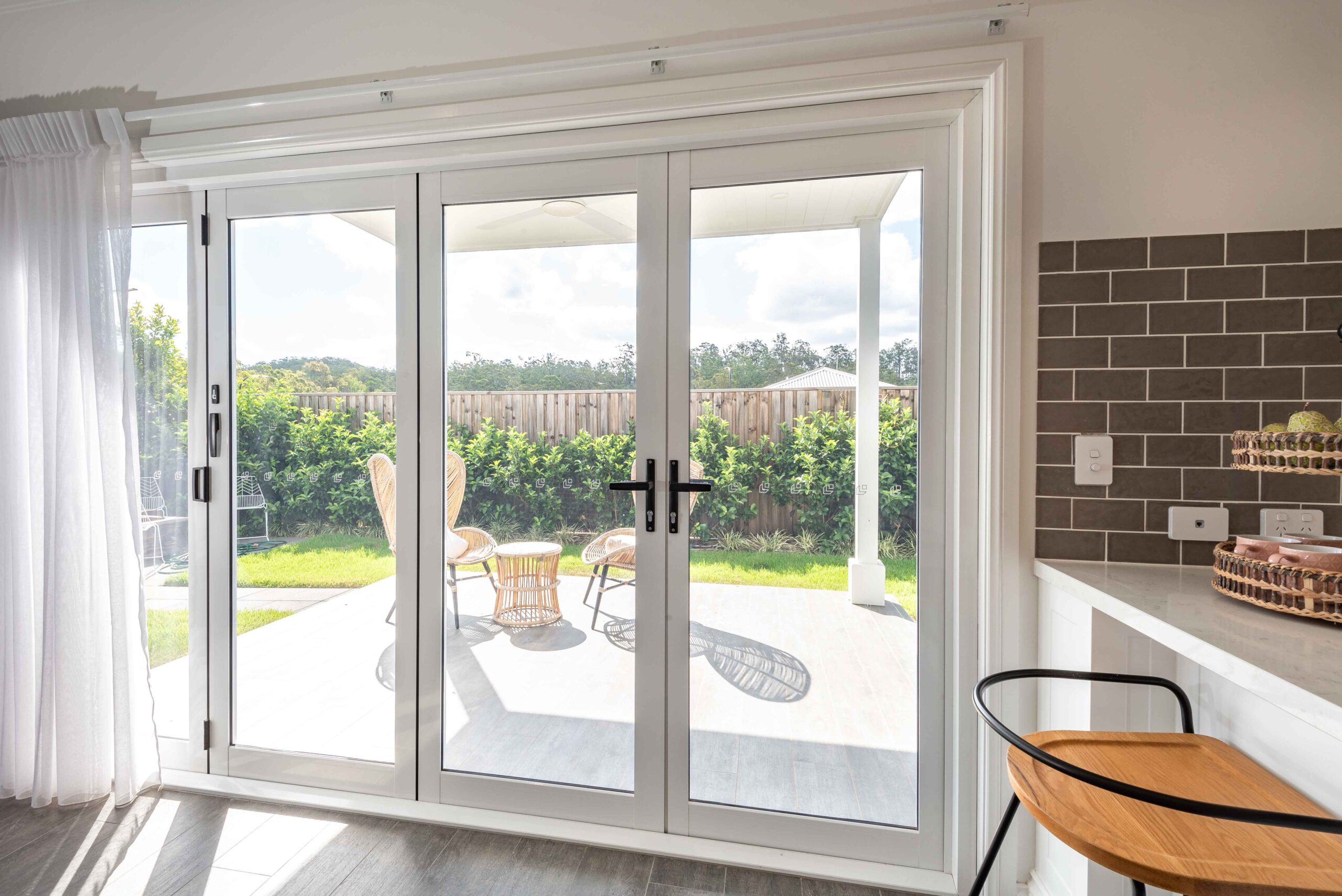

High Performance Bi-fold Door

Share this product​

You’re unique. And your home should reflect that! These Vantage® bi-fold doors are perfect if you want to create a seamless connection between your home’s interior and the great outdoors.

Thank you for reading this post, don't forget to subscribe!
  • Panels glide effortlessly on bottom rollers – no need for an overhead lintel to support the door.
  • Unique, stylish, extra-wide top and bottom rails give the door the chunky appearance of traditional timber designs.
  • Choose from a huge range of hardware options.
  • Features a hinge between the door panels and a built-in handle, making it easy to close.
  • Compatible with industry-leading Centor™ retractable flyscreens for a beautiful, integrated look.

Product Details

Brochure
Colour(Powder Coat Range).pdf

Colour(Powder Coat Range).pdf

Cancel
Download
WERS Ratings WERS Ratings

Product Size

  • Maximum Frame Height (mm) 2600
  • Maximum Panel Width (mm) 900
  • Maximum Glass Thickness (mm) ≤ 20

*Maximum Frame Height and Panel Widths indicated are interdependent and subject to individual site conditions.

Energy Performance

  • Uw Range 3.4 - 6.1
  • SHGC Range 0.17 - 0.57

AS2047

Tested + Certified

ACOUSTICS

Tested + Certified

BAL40

Tested + Certified

Key Features

  • Bi-fold doors run on rollers at the sill ensuring they don’t pull the bi-fold door lintel down and therefore they work smoothly over the long haul. Top clearance allows up to 6mm of lintel movement.
  • Series 548 bi-fold door transoms have a narrow profile. This allows a designer to include 2100mm-high doors plus an overlight in a standard 2400mm-high opening. (Opening sashes as well as fixed overlights are available).
  • Very deep water ‘head’ at the bottom. The bigger this measurement – from drainage hole to the inside leg – the more assured the water drainage in wet or stormy conditions.
  • The Vantage Series 548 High Performance Bi-fold door features an unusual design embellishment – extra wide top and bottom rails that give the door the chunky appearance of traditional timber designs.
  • The centre hinge between bi-fold door panels has a built-in handle to allow the home owner to easily pull the panels back into the closed position.
  • The Series 548 bi-fold door will accept Centor™ S1 screen.
Beading Options

Beading Options

Variety of beading options available.

Heavy Duty Rollers

Heavy Duty Rollers

Heavy duty rollers with colour matched option.

Sill Options

Sill Options

Recessed and fully recessed sill options available.

Overhead Roller Guide

Overhead Roller Guide

Concealed heavy duty overhead roller guide.

Glazing Options

Glazing Options

Will accept single and double glazing up to 20mm IGUs.

Compatible Hardware​

Complementary Products​​

Project Features
