Series 546

High Performance Bi-fold Window

Share this product

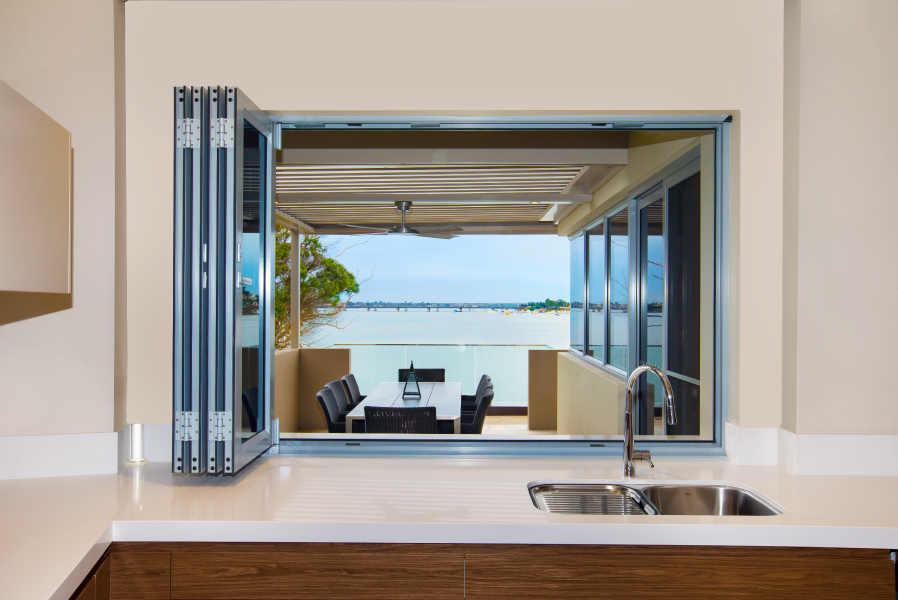

Bi-fold serveries are a home-entertainer’s dream! These beautiful Vantage® bi-fold windows are perfect for opening out onto your outdoor dining area.

Thank you for reading this post, don't forget to subscribe!

Running track can be recessed into servery benches to create a stylish, up-market finish.
Huge range of hardware options.
The perfect complement to the AWS range of French and bi-fold doors.

Product Details

Brochure

Colour(Powder Coat Range).pdf

Cancel

Download

WERS Ratings

Product Size

Maximum Frame Height (mm) 1600
Maximum Panel Width (mm) 900
Maximum Glass Thickness (mm) ≤ 20

*Maximum Frame Height and Panel Widths indicated are interdependent and subject to individual site conditions.

Energy Performance

Uw Range 3.6 - 6.1
SHGC Range 0.25 - 0.57

AS2047

Tested + Certified

ACOUSTICS

Tested + Certified

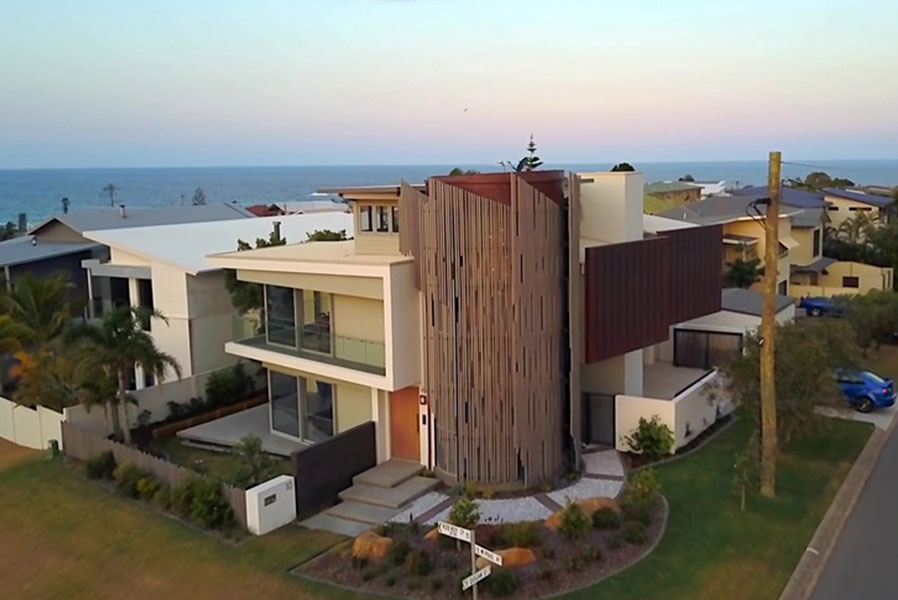

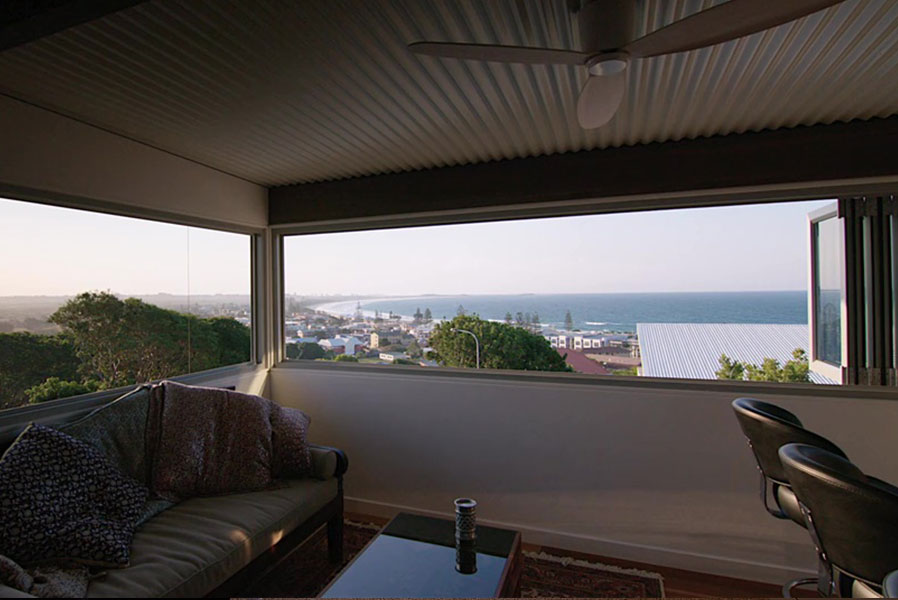

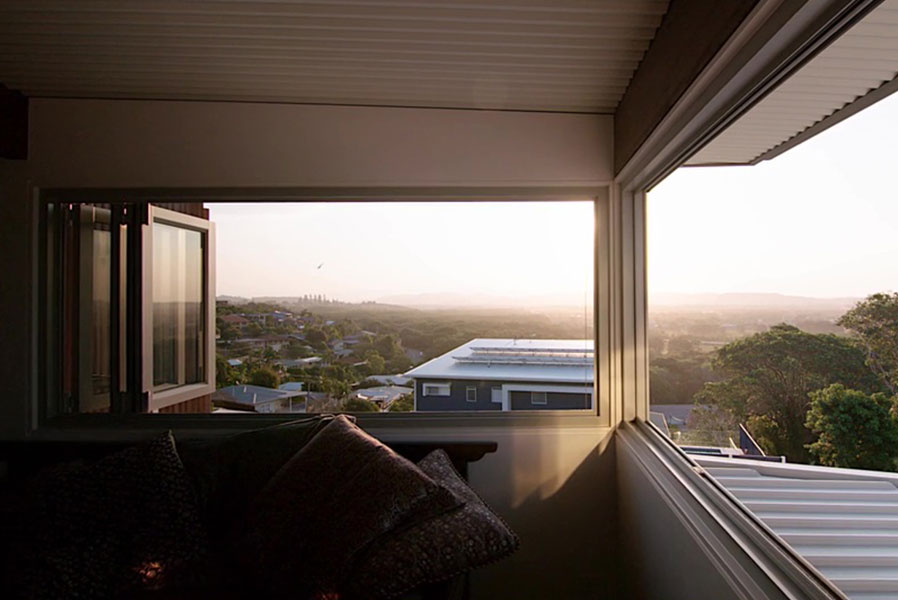

Gallery

Key Features

The Vantage Series 546 Bi-fold window is designed to complement the Series 548 Bi-folding door system.
The main difference between Series 546 bi-fold window and 548 is the narrow horizontal rails.
Series 546 uses the same overlight transom as the bi-fold door plus there is an additional transom for lowlights.
Bi-fold windows come in a large variety of combinations (BFW2, BFW4, BFW2+2, BFW6 and BFW4+2 or BFW2+4).
The Series 546 bi-fold window has been successfully water tested at 300Pa.
Mitred perimeter frame for maximum weather performance.
Custom hinges wrap around the window stile and jamb removing the need for notching and shimming. These custom components dramatically improve the appearance.
Custom bi-fold windows co-extruded Santoprene seal for maximum weather performance.
Bi-fold windows are supported on dual or quad rollers running on heavy duty dual bottom rails.

Configurations

Various configuration options including BFW2, BFW4 and BFW6.

Glazing Options

Variety of beading and glazing options, accepting up to 20mm IGUs.

Heavy Duty Rollers

Heavy duty rollers with colour matched option.

Overhead Roller Guides

Concealed heavy duty overhead roller guide.
