Hinged Entry Door

Residential

Series 549

Hinged Entry Door

Share this product​

The perfect alternative to a traditional timber entry door, the Vantage Residential Series entry door combines great style with all the durability of aluminium.

Thank you for reading this post, don't forget to subscribe!
  • Ideal for use as a front door or anywhere in your home.
  • Flyscreens tuck neatly into the outside frame – no more ugly rivets.
  • Extra-wide top and bottom rails for a clean architectural style.

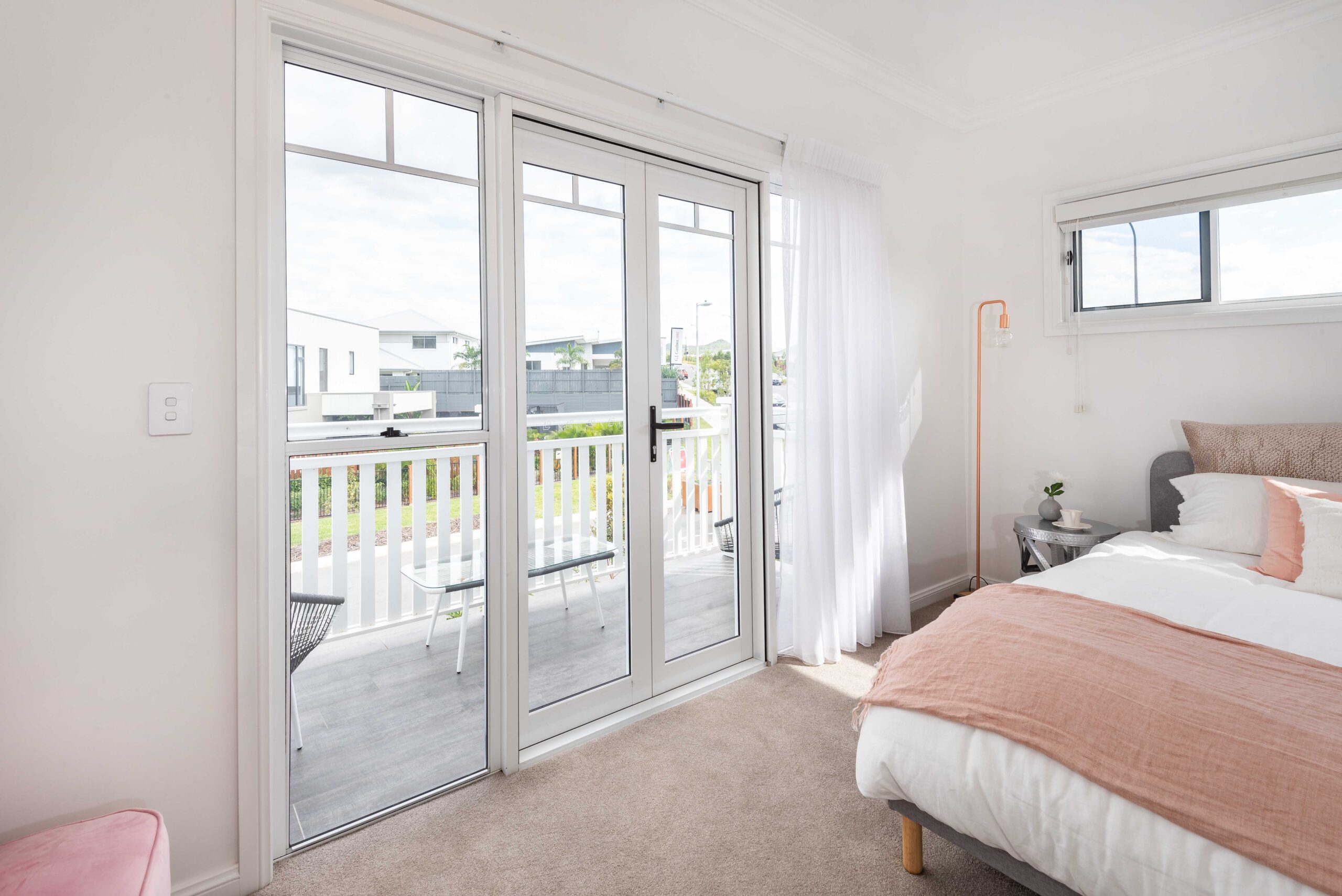

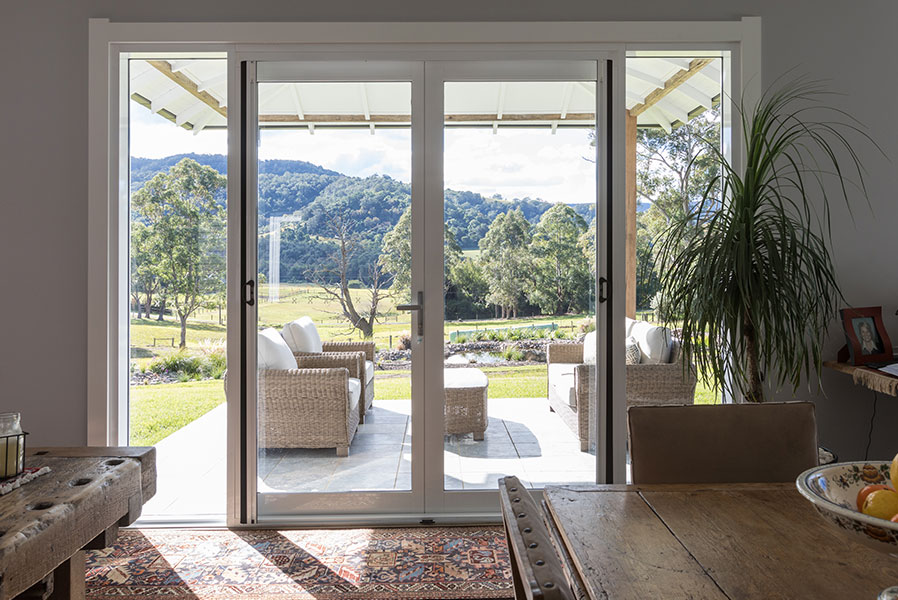

  • When used as a French door, the two doors achieve a seamlessly flush look.
  • Can be fitted with parliament hinges for 180o opening.

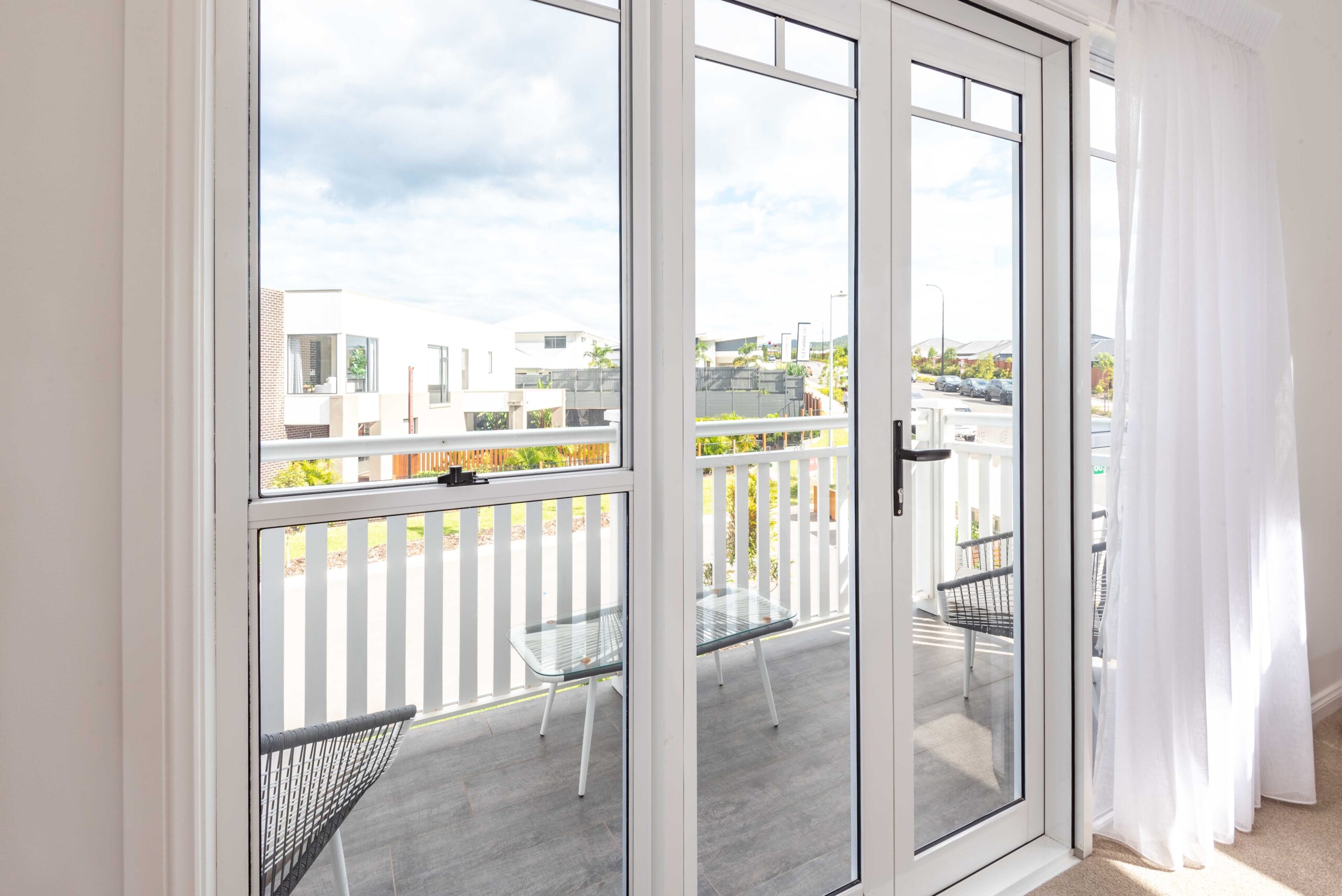

  • ClearVENT™ sashless double hung windows can be installed into the door panels for even better ventilation.

Product Details

Brochure
Colour(Powder Coat Range).pdf

Colour(Powder Coat Range).pdf

Cancel
Download
WERS Ratings WERS Ratings

Product Size

  • Maximum Frame Height (mm) 2350
  • Maximum Panel Width (mm) 900
  • Maximum Glass Thickness (mm) ≤ 20

*Maximum Frame Height and Panel Widths indicated are interdependent and subject to individual site conditions.

Energy Performance

  • Uw Range 3.2 - 5.9
  • SHGC Range 0.23 - 0.56

AS2047

Tested + Certified

BAL40

Tested + Certified

Key Features

  • Designed as a replacement for the traditional 135mm x 38mm timber entry door framing. Frames can be delivered to site pre-painted and with door panels and hardware fitted.
  • Self draining sill option on internal opening doors. Alternatively for those exposed locations we recommend the external swing splayed sill. Both internal and external swing doors fitted with sill section have been tested to Australian Standard AS2047 and will resist 200Pa water.
  • The aluminium entry door features extra wide top and bottom rails that give the door the chunky appearance of traditional timber designs.
  • Rebated door stiles give a flush appearance when the two doors meet and provide superior weather protection. Unsightly applied rebates are eliminated.
  • Throwing the lock tongue into timber framing has always been a security weakness. Series 549 aluminium frame will significantly improve this locking point.
  • Doors can be supplied with a lever lock installed in the door stile or with a tulip knob lock placed in a door chair rail.
  • Three proprietary lever lock set options including 316 stainless steel finish for costal applications.
  • Doors can be fitted with custom parliament hinges for those applications where doors have to lay open at 180º against the wall.
  • Rebated frame will accept 19mm screen doors.
  • Door panels can be fitted with ClearVENT™ sashless Double-Hung panels.
Beads

Beads

Variety of beading options available including square or splayed.

Head Details

Head Details

Standard and screen door applications.

Locking

Locking

Will accept ANDO™, MIRO™ and ICON™ hardware.

Drainage

Drainage

Sill incorporates built in drainage with anti-blowback valve.

Sill Design

Sill Design

Self draining sill to improve weather performance.
