MAGNUM™ Sliding Door

Residential

Series 618

MAGNUM™ Sliding Door

Share this product​

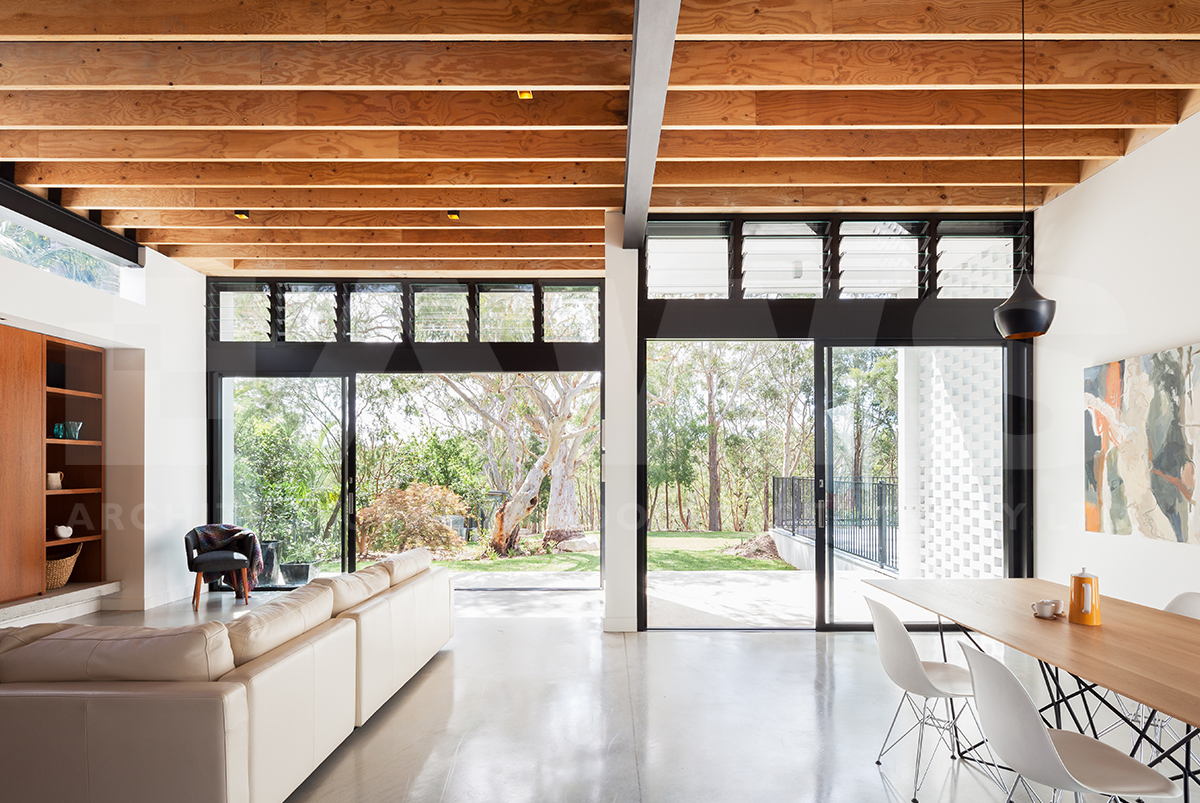

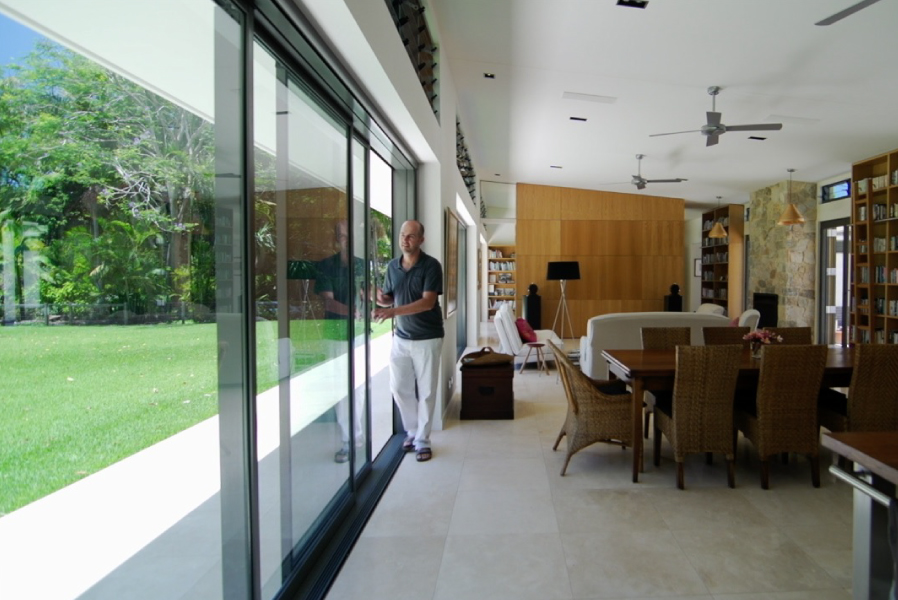

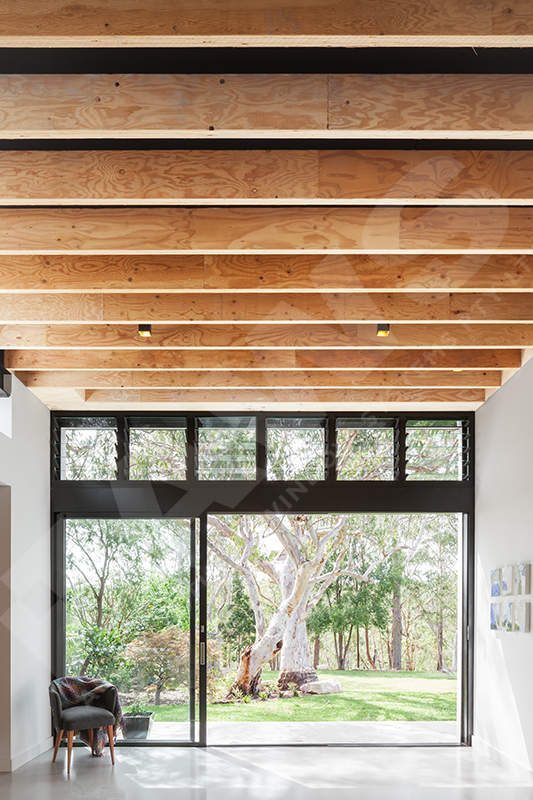

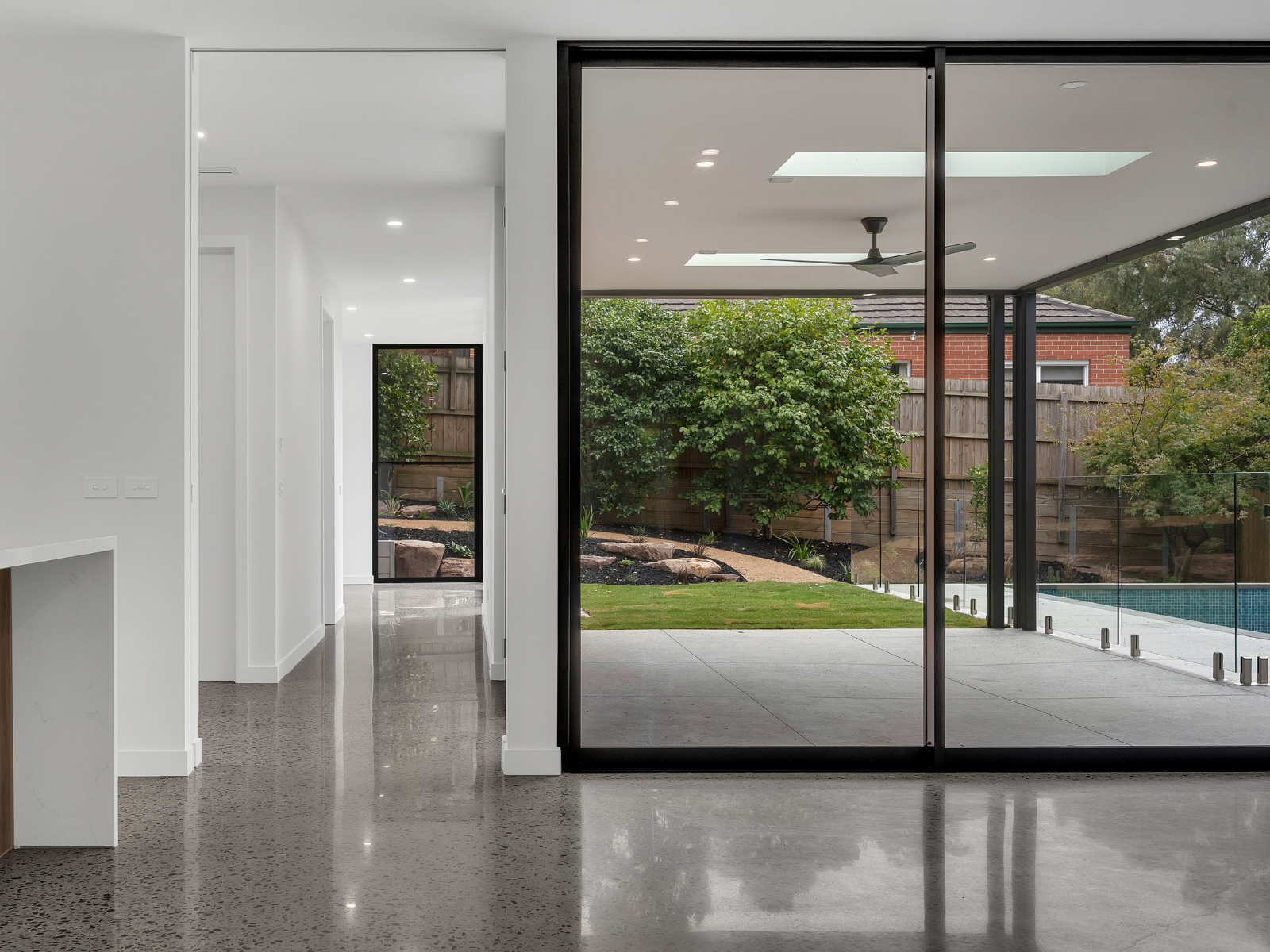

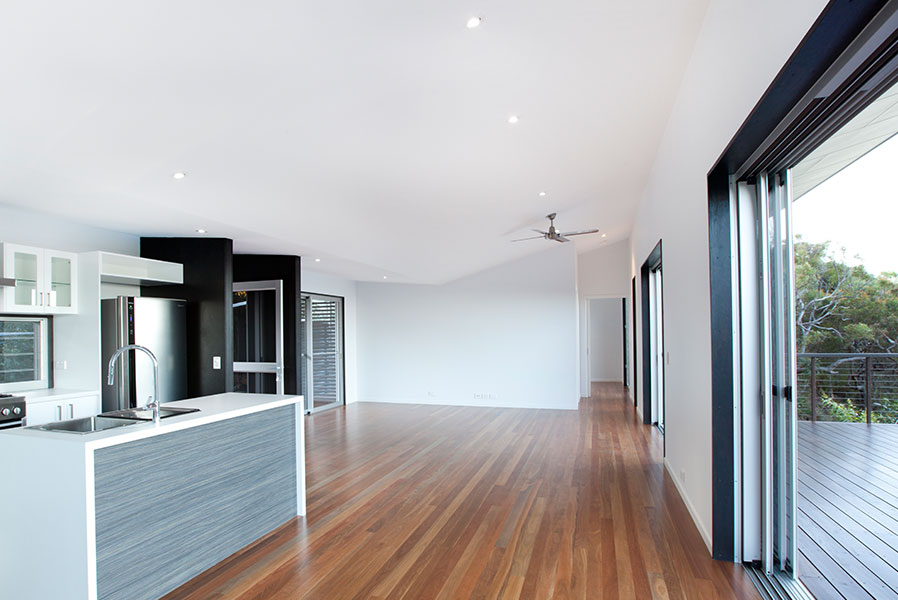

With its clean lines, strength and bold styling, the elegant Vantage® MAGNUM™ stacking sliding door never fails to make a statement.

Thank you for reading this post, don't forget to subscribe!
  • Get up to four panels in each direction, with the potential to span a massive 12-metres. Perfect for opening onto outdoor dining areas!
  • Frame a glorious view with panels up to three metres high.
  • A range of standard or high-performance sills.
  • Can be recessed into a slab for a beautiful, flush threshold.
  • Ideal for areas with high winds or heavy rain.
  • Can be configured as a 90o corner pull-away door, or with a cavity slide option so your doors disappear into your wall.
  • Accepts single or double glazing.
  • Heavy-duty rollers for smooth operation.

Product Details

Brochure
Colour(Powder Coat Range).pdf

Colour(Powder Coat Range).pdf

Cancel
Download
WERS Ratings WERS Ratings

Product Size

  • Maximum Frame Height (mm) 3000
  • Maximum Panel Width (mm) 2000
  • Maximum Glass Thickness (mm) ≤ 24

*Maximum Frame Height and Panel Widths indicated are interdependent and subject to individual site conditions.

Energy Performance

  • Uw Range 3 - 6.2
  • SHGC Range 0.22 - 0.67

AS2047

Tested + Certified

ACOUSTICS

Tested + Certified

BAL40

Tested + Certified

CYCLONE

Tested + Certified

Livable
Housing Design

Key Features

  • The Series 618 sliding door designed to complement the MAGNUM™ window systems.
  • The standard sliding door frame is 133mm wide and will snap to the 102mm wide MAGNUM™ window frames without unsightly screws or rivets.
  • 44mm and 50mm high flat sills are ideal for recessing this sliding door into the floor.
  • 44mm jambs and head match the standard 44mm flat square sill.
  • The 33mm thick stiles are ideal for extra large sliding doors in high wind load areas. Full height doors (2900mm) remove the need for highlights in most applications. This sliding door achieves very high water resistance.
  • Reinforced frame legs are designed to retain the door panels in high wind load areas and help us achieve the high ultimate ratings.
  • The accompanying optional stacking multi-panel external flydoor system nests into the main frame. The custom screen door system is designed to complement the glass door.
  • The high water resistance of 450Pa allows these doors to be installed into most residential projects.
  • Meeting stiles on this sliding door is fitted with custom end closers that restrict water turbulence under extreme conditions.
  • Unused frame recesses are closed off with snap-in flat fillers for improved appearance and water resistance.

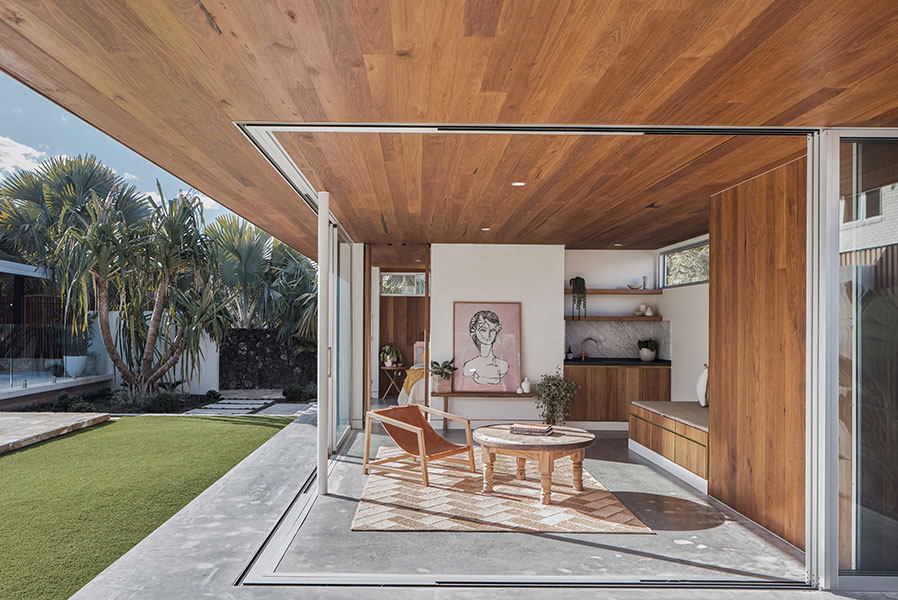

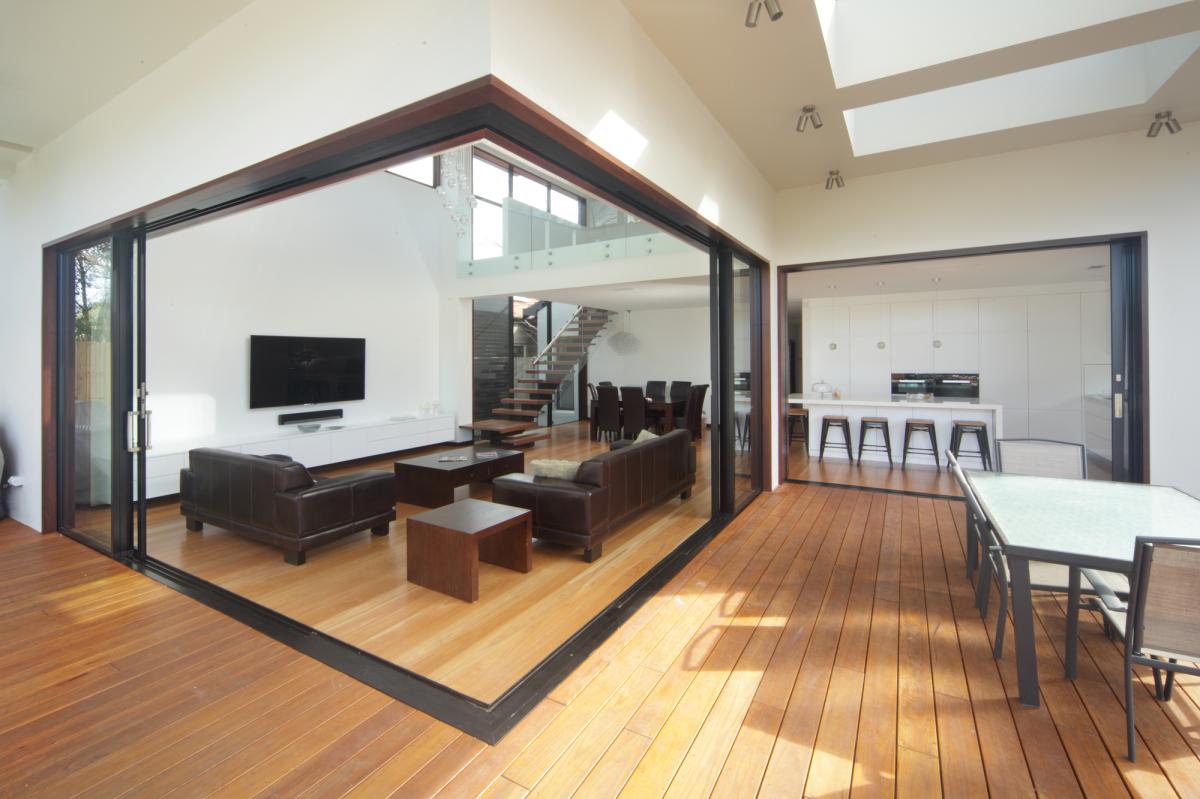

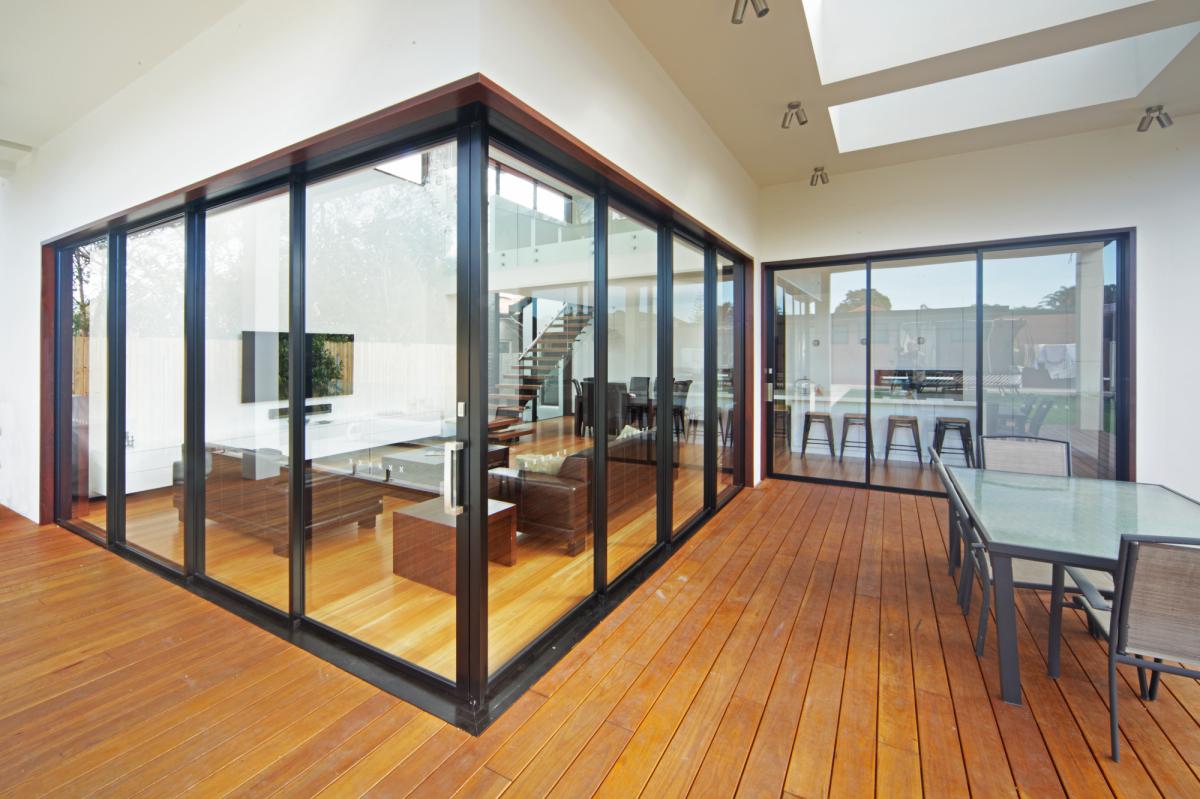

  • 90º corner opening sliding door available.
  • The Series 618 sliding door will accept Centor™ screen.
Adaptability

Adaptability

Flush sills with optional integrated, bold, stacking flydoor.

Screening

Screening

Screens can be incorporated wholly within frame.

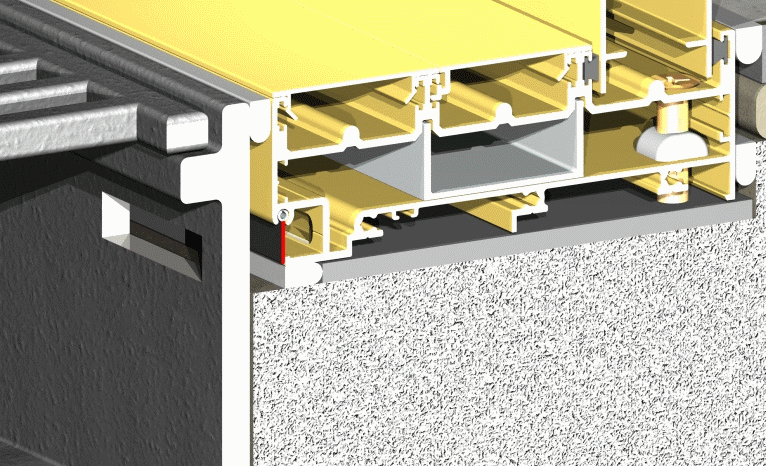

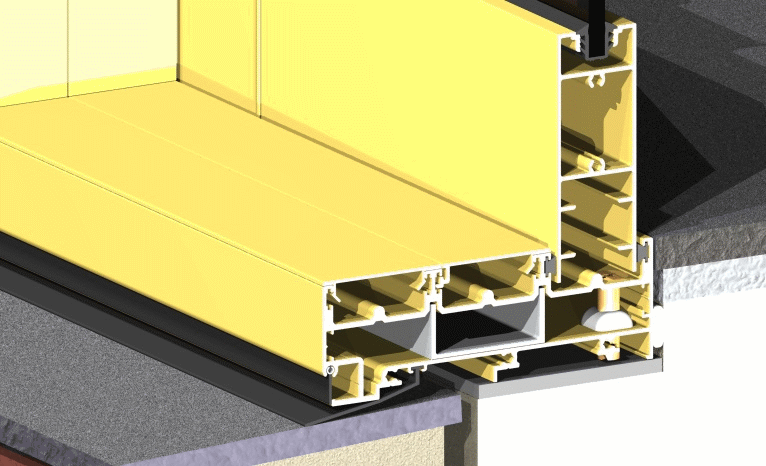

Sill Detail

Sill Detail

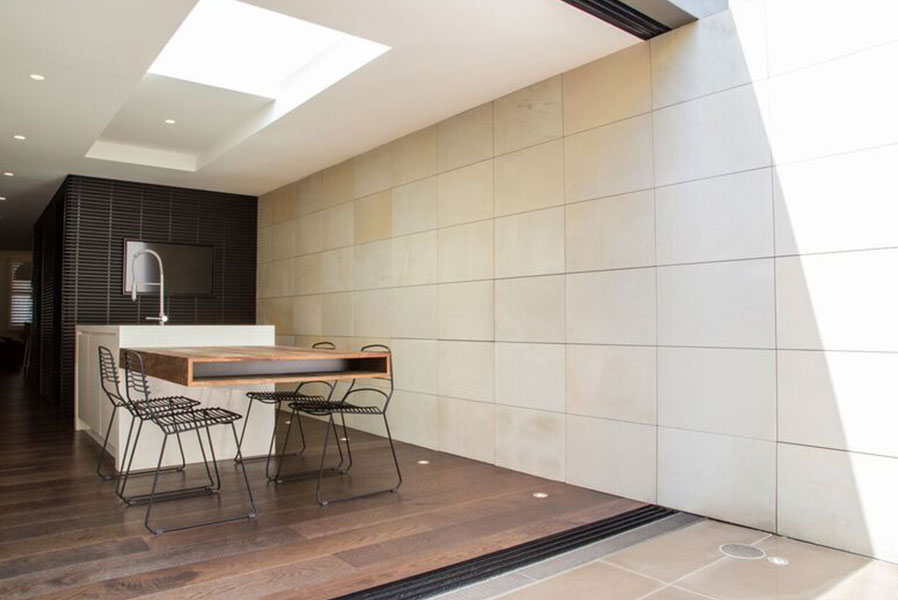

Flush sill option, popular in architectural homes.

Drainage

Drainage

Self draining sills with anti-blowback flap.

Mullions

Mullions

Standard and heavy duty mullions available to suit site wind load conditions.

Retractable Screen

Retractable Screen

Will accept Centor™ S1 retractable screening system
