MAGNUM™ Sliding Window (Beaded Fixed Light)

Residential

Series 601

MAGNUM™ Sliding Window (Beaded Fixed Light)

Share this product​

Fall in love with the clean, bold frame of these stunning, architecturally-inspired sliding windows from the Vantage® MAGNUM™ range.

Thank you for reading this post, don't forget to subscribe!
  • The option of very large sliding panels for an elegant, architectural style.
  • Heavy duty rollers for smooth operation.
  •  Flyscreens tuck neatly into the outside frame – no more ugly rivets.
  • 2mm inner radius for a soft appearance.
  • A clean junction between the frame and mullion.
  • Stylish mitred main frame.
  • Single sash design.
  • Fixed panel is glazed directly into the frame for a slimmer, more elegant appearance.
  • A range of glass options, including double glazing.
  • Perfectly complements the MAGNUM™ 618 sliding door.

Product Details

Brochure
Colour(Powder Coat Range).pdf

Colour(Powder Coat Range).pdf

Cancel
Download
WERS Ratings WERS Ratings

Product Size

  • Maximum Frame Height (mm) 1496
  • Maximum Panel Width (mm) 1350
  • Maximum Glass Thickness (mm) ≤ 20

*Maximum Frame Height and Panel Widths indicated are interdependent and subject to individual site conditions.

Energy Performance

  • Uw Range 4.9 - 6.5
  • SHGC Range 0.28 - 0.63

AS2047

Tested + Certified

ACOUSTICS

Tested + Certified

BAL40

Tested + Certified

Key Features

  • The Series 601 sliding window has been tested for compliance with the relevant Australian Standards and achieved a very high water resistance of 450Pa, making the product suitable for most applications including multi-storey apartments.
  • This sliding window has very low air infiltration, makes the product suitable for air conditioned buildings.
  • The extra strong meeting stiles allow large sliding windows to be fabricated in high wind load areas.
  • Clean splayed and rounded lines for improved visual appearance in these sliding windows.
  • Frame, mullion and transom have a soft 2mm internal radius.
  • Opening sliding window sashes can be fitted with surface or mortice deadlocks.
  • Sashes run on large diameter, heavy duty wheel carriages, including double bogey for very heavy sashes.
Rollers

Rollers

Concealed standard and heavy duty rollers available.

Screening

Screening

Integrated screening option.

Framing

Framing

Sliding and fixed options maintain visual consistency.

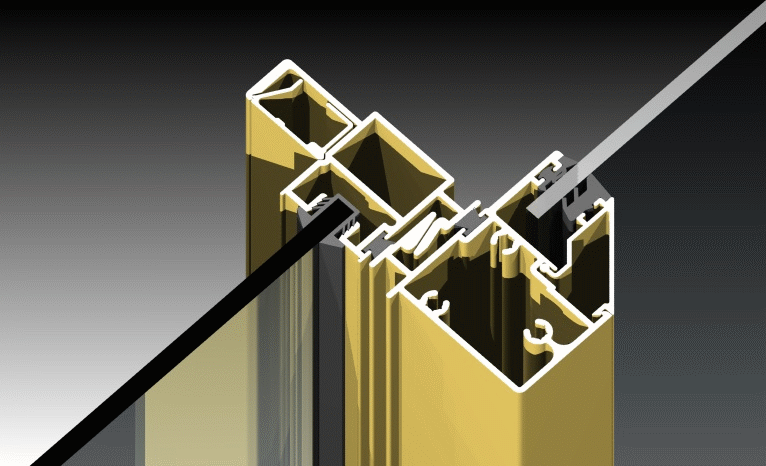

Interlock Options

Interlock Options

Various interlock options to suit site wind load conditions.

Splayed External Appearance

Splayed External Appearance

Splayed External Appearance

Custom Latch

Custom Latch

Custom Latch Secures the Flyscreen to Mullion
