MAGNUM™ Sliding Window (Double Sash Design)

Residential

Series 602

MAGNUM™ Sliding Window (Double Sash Design)

Share this product​

Sliding windows are a favourite in Australian homes and the Vantage® Designer Aluminium MAGNUM™ is undoubtedly one of the best.

Thank you for reading this post, don't forget to subscribe!
  • Incredibly large sliding panels.
  • Elegant, architectural style.
  • Clean, bold frames.
  • Heavy-duty rollers for smooth operation.
  • Flyscreens tuck neatly into the frame – no more ugly rivets.
  • 2mm inner radius for a soft appearance.
  • A clean junction between the frame and mullion.
  • Stylish mitred main frame.
  • Double sash design.
  • Fixed and sliding panels for a uniform appearance.
  • A range of great glass options, including double glazing.
  • The perfect complement to the MAGNUM™ sliding door.

Product Details

Brochure
Colour(Powder Coat Range).pdf

Colour(Powder Coat Range).pdf

Cancel
Download
WERS Ratings WERS Ratings

Product Size

  • Maximum Frame Height (mm) 1496
  • Maximum Panel Width (mm) 1356
  • Maximum Glass Thickness (mm) ≤ 20

*Maximum Frame Height and Panel Widths indicated are interdependent and subject to individual site conditions.

Energy Performance

  • Uw Range 4.9 - 6.5
  • SHGC Range 0.28 - 0.63

AS2047

Tested + Certified

ACOUSTICS

Tested + Certified

BAL40

Tested + Certified

CYCLONE

Tested + Certified

Key Features

  • The Series 602 sliding window is designed to complement our existing high quality product range.
  • This sliding window has been tested for compliance with the relevant Australian Standards.
  • The Series 602 sliding window achieves very high water resistance of 450Pa making the product suitable for most applications including multi-storey apartments.
  • Low air infiltration, makes this sliding window suitable for air conditioned buildings.
  • The extra strong meeting stiles allow large sliding windows to be fabricated in high wind load areas.
  • Double sash design with the external sash fixed.
  • Frame, mullion and transom on this sliding window have a soft 2mm internal radius.
  • Series 602 sliding window has a more squared off appearance when compared to Series 601.
  • Both fixed and opening sashes on this sliding window can be installed, replaced and/or reglazed from inside the building. This could be an important feature in elevated situations.
Rollers

Rollers

Concealed standard and heavy duty rollers available.

Double Sash

Double Sash

Double sash design

Interlocking Mullion

Interlocking Mullion

Various interlocking mullion options available to suit site wind load conditions.

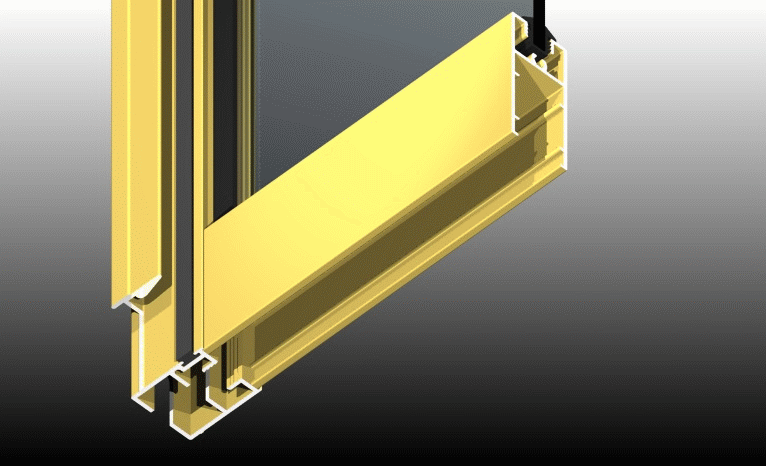

Jamb Detail

Jamb Detail

Sliding and fixed options maintain visual consistency.

Sill Options

Sill Options

Sill with matching square fixed sidelight.

Screening

Screening

Fully integrated screening option.
