Residential Awning/Casement Window (102mm frame)

Residential

Series 517

Residential Awning/Casement Window (102mm frame)

Share this product​

Product Details

Brochure
Colour(Powder Coat Range).pdf

Colour(Powder Coat Range).pdf

Cancel
Download
WERS Ratings WERS Ratings
View in SpecifyAWS

Product Size

  • Maximum Frame Height (mm) Various
  • Maximum Panel Width (mm) Various
  • Maximum Glass Thickness (mm) ≤ 20

*Maximum Frame Height and Panel Widths indicated are interdependent and subject to individual site conditions.

Energy Performance

  • Uw Range 2.5 - 6.9
  • SHGC Range 0.18 - 0.76

AS2047

Tested + Certified

ACOUSTICS

Tested + Certified

BAL40

Tested + Certified

Key Features

Seried 517 Fixed Frame

  • Series 517 can be manufactured as a fixed frame window.
  • The Series 517 awning window has been successfully tested for compliance with AS 2047.
  • The 102mm wide frame allows the fabrication of chain winder awning windows with the winder contained within the frame line.
  • Very high water resistance (450Pa) allows this awning window to be used in most situations.
  • This framing system has been designed to align with and snap to the Vantage Series 541 and 542 sliding doors head or jamb and the Series 548 French doors.
  • Awning window type sashes are fitted with heavy duty corrosion resistant chain winders with 304 stainless steel chains as standard.
  • The fixed light beading matches opening sashes on this awning window.
  • Series 517 will snap to the head of Series 541 and 542 sliding doors to create fixed or awning highlights. There are three types of couplers, pick the one that suits the width and design wind load.
  • The 102mm fixed light framing system can be used when tall fixed lights are required in a high wind load area.
  • Optional sash and mullion strengths for this awning window cover a large variety of design wind load areas.
  • This awning window system can be fabricated as a fixed window system.
Sash

Sash

Standard and heavy duty sash options.

102mm Frame

102mm Frame

102mm perimeter frame.
Winders

Winders

Colour matched, key operated chainwinders.

Compatible Hardware​

Manual Chainwinder

ANDO™

Manual Chainwinder

Related Products

VANTAGE® Residential Series Vantage Residential windows and doors that share similar style and performance qualities to Residential Awning/Casement Window (102mm frame)

LouvreMASTER™ Adjustable Louvre Window

LouvreMASTER™ Adjustable Louvre Window

Learn more
High Performance Bi-fold Window

High Performance Bi-fold Window

Learn more
Thermally Broken Awning/Casement Window

Thermally Broken Awning/Casement Window

Learn more
Residential Sliding Window

Residential Sliding Window

Learn more
SoundOUT™ Secondary Glazed Sliding Window

SoundOUT™ Secondary Glazed Sliding Window

Learn more
MAGNUM™ Sliding Window (Beaded Fixed Light)

MAGNUM™ Sliding Window (Beaded Fixed Light)

Learn more
MAGNUM™ Sliding Window (Double Sash Design)

MAGNUM™ Sliding Window (Double Sash Design)

Learn more
MAGNUM™ Double Hung Window

MAGNUM™ Double Hung Window

Learn more

ClearVENT™ Sashless Double Hung Window

Learn more
MAGNUM™ Awning/Casement Window

MAGNUM™ Awning/Casement Window

Learn more
Residential Double Hung Window

Residential Double Hung Window

Learn more
Residential Awning/Casement Window (50mm frame)

Residential Awning/Casement Window (50mm frame)

Learn more
SoundOUT™ Secondary Glazed Casement Window

SoundOUT™ Secondary Glazed Casement Window

Learn more
LouvreMASTER™ Sun Control Shutter

LouvreMASTER™ Sun Control Shutter

Learn more
Architectural Sliding Window (double sash design)

Architectural Sliding Window (double sash design)

Learn more

Complementary Products​​

Project Features

feature_170_gallerybanner

Longford, Victoria

  • Residential
feature-148-hero-banner

Paddison House

  • Designer Notes, Residential
feature-144-hero-banner

Peregian Beach

  • Residential
feature-113-Hero-banner

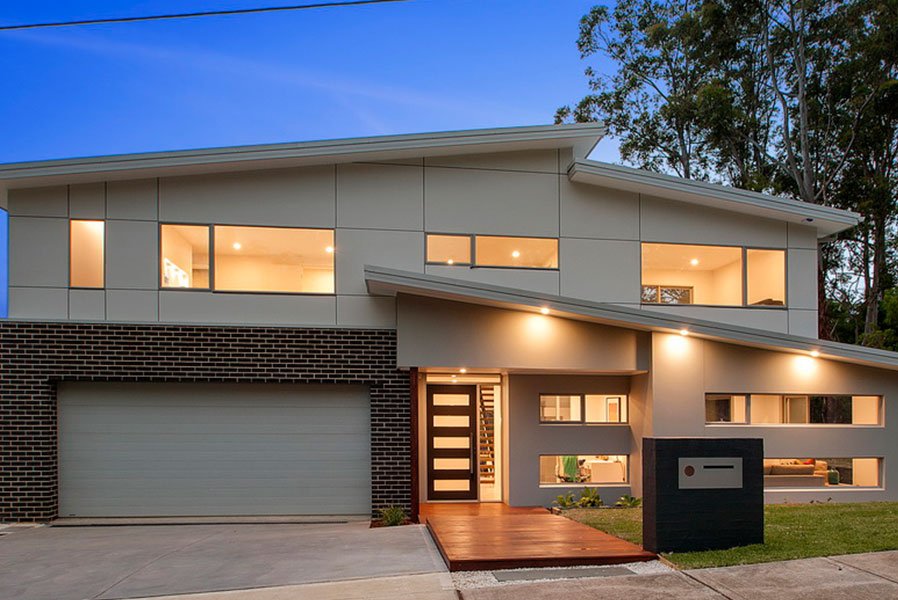

Castle Hill
