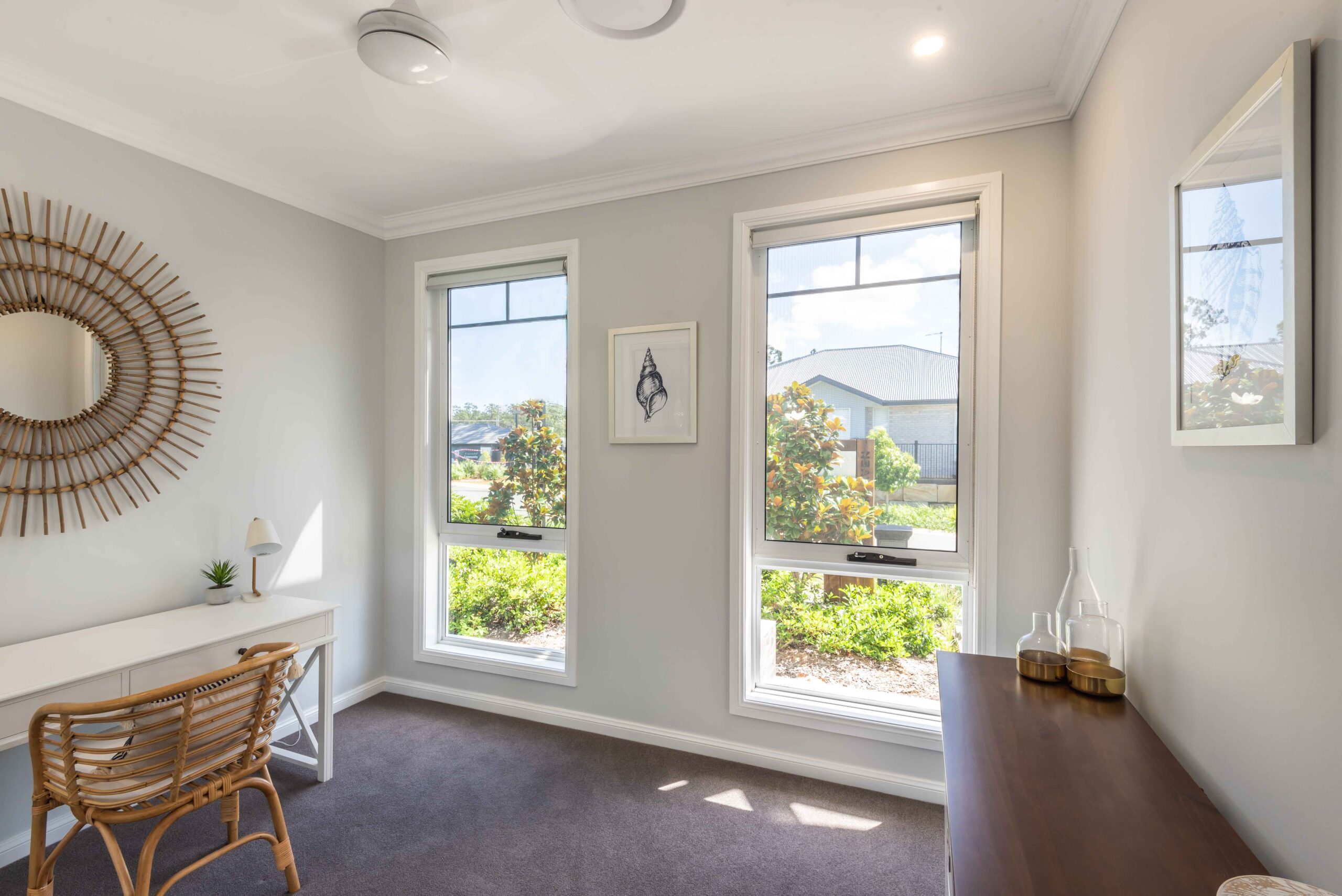

Residential Awning/Casement Window (50mm frame)

Residential

Series 516

Residential Awning/Casement Window (50mm frame)

Share this product​

Australians can’t get enough of the amazing value and performance of the Vantage® Residential Series aluminium awning windows.

Thank you for reading this post, don't forget to subscribe!

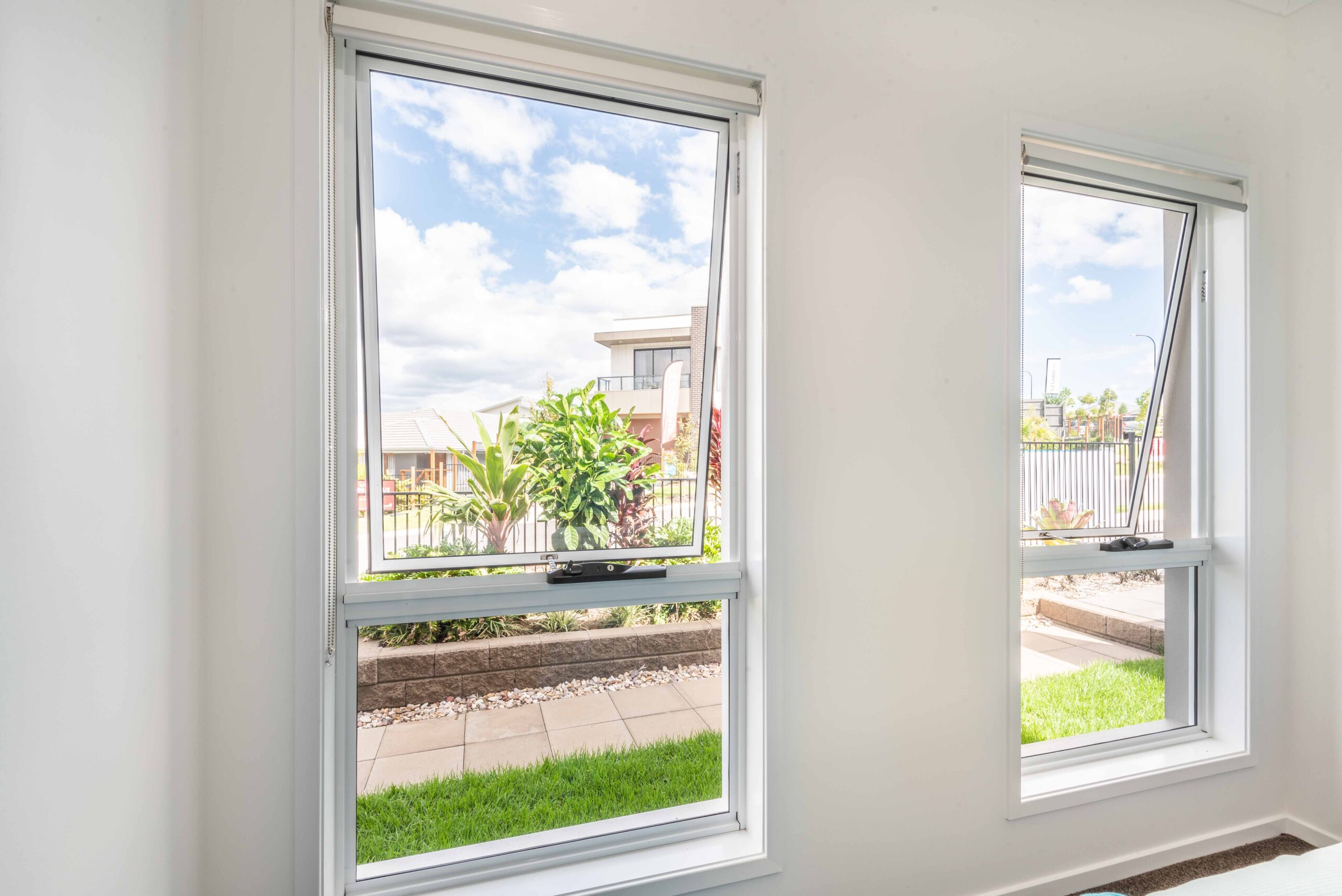

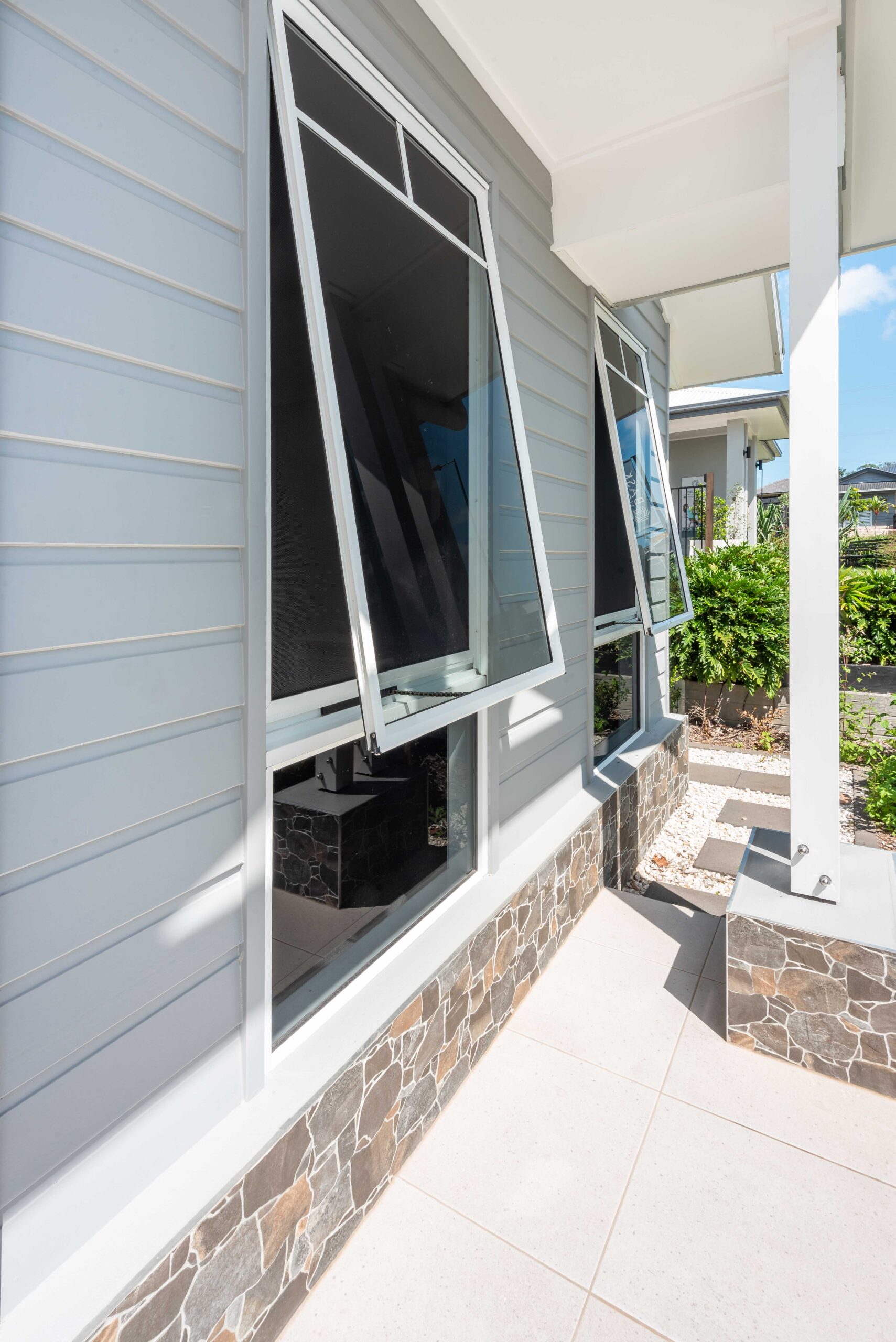

  • Opens out from the bottom for great ventilation and protection from unexpected showers.
  • 50mm aluminium frame.
  • Perfect for single or double glazing.
  • A huge variety of performance-glass options to maximise energy efficiency.
  • Can be supplied with a chain winder.
  • Casement type sash option available. These sashes are fitted with stainless steel friction stays and wedgeless cam handle

Product Details

Brochure
Colour(Powder Coat Range).pdf

Colour(Powder Coat Range).pdf

Cancel
Download
WERS Ratings WERS Ratings
View in SpecifyAWS

Product Size

  • Maximum Frame Height (mm) Various
  • Maximum Panel Width (mm) Various
  • Maximum Glass Thickness (mm) ≤ 20

*Maximum Frame Height and Panel Widths indicated are interdependent and subject to individual site conditions.

Energy Performance

  • Uw Range 3.4 - 6.6
  • SHGC Range 0.21 - 0.66

AS2047

Tested + Certified

ACOUSTICS

Tested + Certified

BAL40

Tested + Certified

Key Features

Seried 516 Fixed Frame

  • Series 516 can be manufactured as a fixed frame window.
  • This awning window has been successfully tested for compliance with AS 2047.
  • Optional sash and mullion strengths cover a large variety of design wind load areas for this residential awning window.
  • Continuous hinge hood protects the top of the sash from water intrusion.
  • Water resistance rating of 450Pa allows this awning window to be used in most exposed locations in Australia.
  • Awning type sashes are fitted with heavy duty corrosion resistant chain winders with 304 stainless steel chains as standard.
  • Casement type sash option available. These awning window sashes are fitted with stainless steel adjustable friction stays and wedgeless cam handles.
  • Adjoining fixed sidelights and/or lowlights have matching splayed glazing beads.
  • Fixed sidelight and lowlight sills can be supplied with optional self draining ball valve that drains condensation water back to the outside while preventing blow backs through the drainage hole (Australian Registered Design).
  • 50mm wide perimeter frame will couple to a large variety of adaptors for the Series 516 awning window, no screws or rivets required.
  • This awning window system can be fabricated as a fixed window system.
Sash

Sash

Standard and heavy duty sash options.

Fly screens

Fly screens

Designed to accept screen when used with chainwinder.

Glazing

Glazing

Will accept single or double glazing up to 20mm IGUs.

Fixed Lights

Fixed Lights

Can be configured as a fixed light with internal or external beading.

Winders

Winders

Colour matched, key operated chainwinders.

Replacement Trims

Replacement Trims

Series 516 will accept replacement trims for a finished look on retrofits

Compatible Hardware​

Manual Chainwinder

ANDO™

Manual Chainwinder

Related Products

VANTAGE® Residential Series Vantage Residential windows and doors that share similar style and performance qualities to Residential Awning/Casement Window (50mm frame)

LouvreMASTER™ Adjustable Louvre Window

LouvreMASTER™ Adjustable Louvre Window

Learn more
High Performance Bi-fold Window

High Performance Bi-fold Window

Learn more
Thermally Broken Awning/Casement Window

Thermally Broken Awning/Casement Window

Learn more
Residential Sliding Window

Residential Sliding Window

Learn more
SoundOUT™ Secondary Glazed Sliding Window

SoundOUT™ Secondary Glazed Sliding Window

Learn more
MAGNUM™ Sliding Window (Beaded Fixed Light)

MAGNUM™ Sliding Window (Beaded Fixed Light)

Learn more
MAGNUM™ Sliding Window (Double Sash Design)

MAGNUM™ Sliding Window (Double Sash Design)

Learn more
MAGNUM™ Double Hung Window

MAGNUM™ Double Hung Window

Learn more

ClearVENT™ Sashless Double Hung Window

Learn more
MAGNUM™ Awning/Casement Window

MAGNUM™ Awning/Casement Window

Learn more
Residential Double Hung Window

Residential Double Hung Window

Learn more
Residential Awning/Casement Window (102mm frame)

Residential Awning/Casement Window (102mm frame)

Learn more
SoundOUT™ Secondary Glazed Casement Window

SoundOUT™ Secondary Glazed Casement Window

Learn more
LouvreMASTER™ Sun Control Shutter

LouvreMASTER™ Sun Control Shutter

Learn more
Architectural Sliding Window (double sash design)

Architectural Sliding Window (double sash design)

Learn more

Complementary Products​​

Project Features

feature_153_hero_banner

2 in Twelve

  • Residential
feature_151_hero_banner

Grafton Residential Aged Care

  • Aged Care
feature_117_Hero_banner

Valley House

  • Residential
feature_85_hero

Southern Outlet House

  • Designer Notes, Residential
feature_57_hero

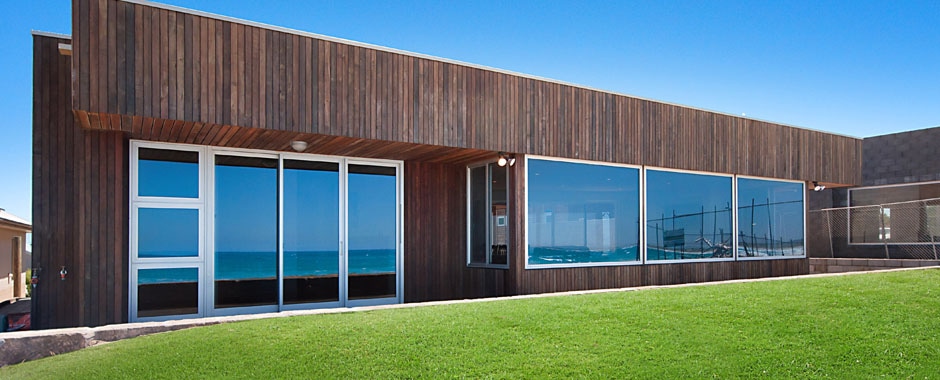

Port Fairy Residence
