Residential Double Hung Window

Residential

Series 514

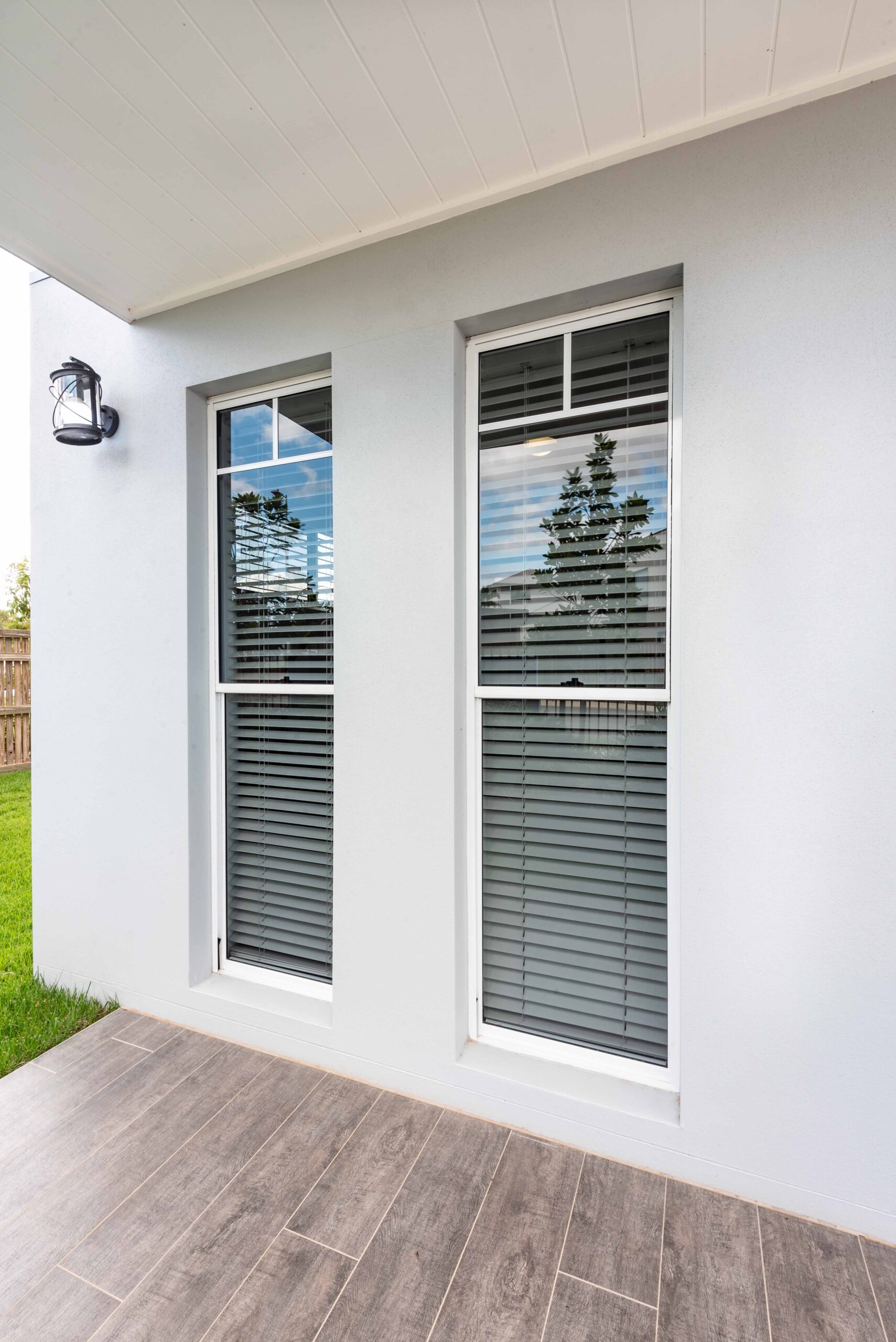

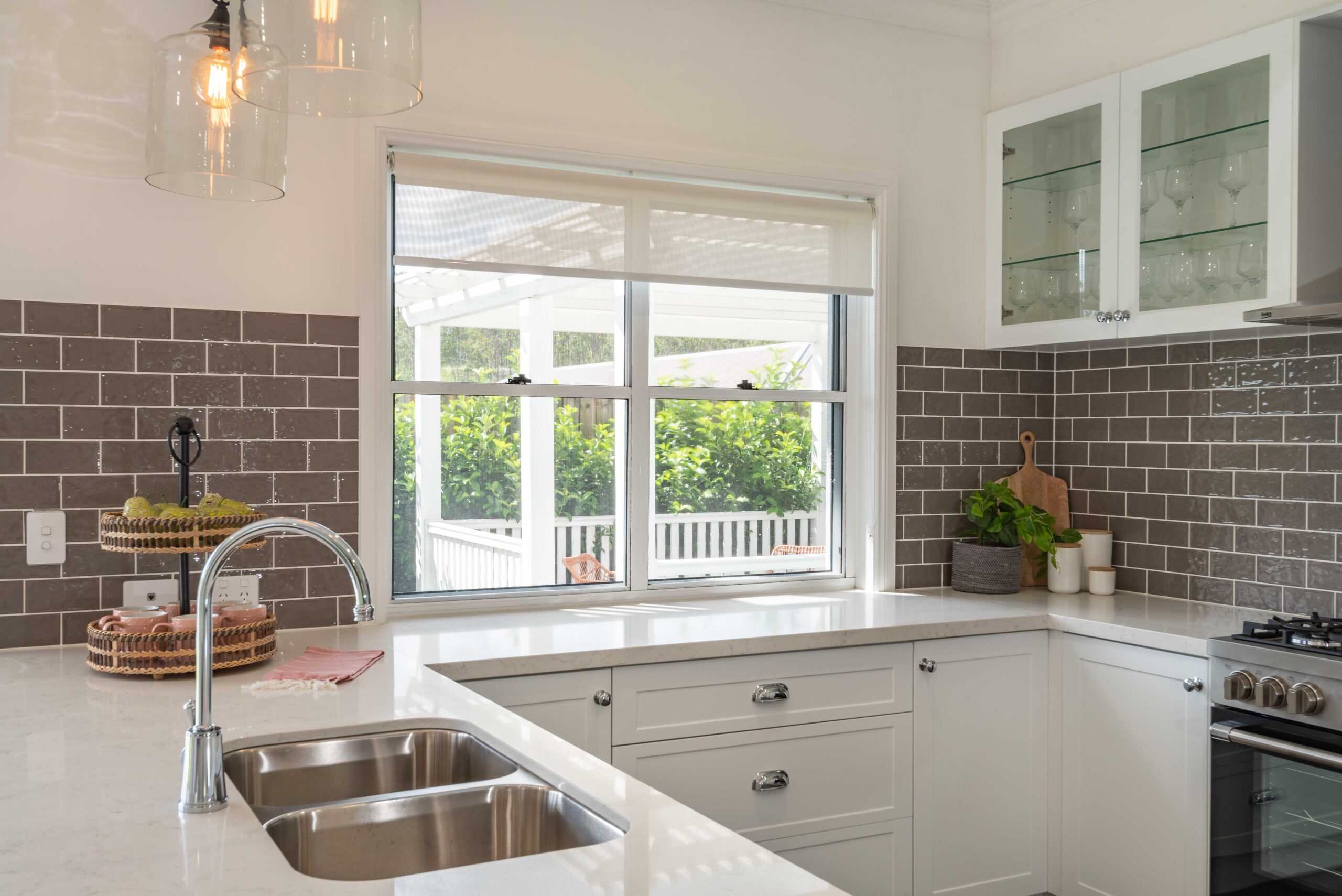

Residential Double Hung Window

Share this product​

Love the classics? This double hung window solution has your name all over it! Perfect for traditional and contemporary homes alike.

Thank you for reading this post, don't forget to subscribe!
  • Choose a slim 50mm frame or, if you prefer something wider, a 102mm frame extender.
  • Add cam or crescent latches – with keys or without – that can be colour-matched to your window.
  • Easy-open window sashes help to maximise ventilation within your home.
  • Allows for single-gazing up to 10.38mm.
  • Tested rigorously to the highest Australian standards.
  • Huge range of configurations to suit you.

Product Details

Brochure
Colour(Powder Coat Range).pdf

Colour(Powder Coat Range).pdf

Cancel
Download
WERS Ratings WERS Ratings

Product Size

  • Maximum Frame Height (mm) 1050
  • Maximum Panel Width (mm) 1210
  • Maximum Glass Thickness (mm) ≤ 7.52

*Maximum Frame Height and Panel Widths indicated are interdependent and subject to individual site conditions.

Energy Performance

  • Uw Range 4.3 - 6.2
  • SHGC Range 0.31 - 0.74

AS2047

Tested + Certified

ACOUSTICS

Tested + Certified

BAL40

Tested + Certified

Key Features

  • This residential double hung window has been successfully tested for compliance with AS 2047.
  • Optional mullion and transom strengths for this double hung window to cover a large variety of design wind load areas.
  • 50mm wide perimeter frame will couple to a large variety of adaptors in this double hung window without visible rivets or screws.
  • Finger grip built into the top and bottom sash rails of this residential double hung window.
  • The same frame can be used for Double-Hung or fixed sidelights in standard wrap around glazing or individually glazed sashes.
  • Double hung sashes will bypass each other to allow cleaning of all glass from inside the building.
  • Double hung sashes run on spring balances with adjustable spring shoes.
  • Interlocking meeting rails.
  • Fixed sill has built-in drainage to take care of condensation.
  • Standard sill will rate to 200Pa water resistance plus there is a tubular sill option for 300Pa water resistance projects.
Locking

Locking

Heavy duty colour matched locking.

Screens

Screens

Integrated fly screens.

Sill Options

Sill Options

Standard and high performance sill options.

Transom

Transom

Standard, medium and heavy duty transom options.
