Home > Products > Residential Sliding Door

Residential

Series 541

Residential Sliding Door

Share this product

Looking for a sliding aluminium door to complement your home and patio? The Vantage® Residential Series aluminium sliding door is for you!

Thank you for reading this post, don't forget to subscribe!

Your choice of standard, high-performance, or lowline sills for greater accessibility.
Wide rollers for smooth operation.
Flyscreen doors can be fitted easily to the outside.
A range of single and multi-point locks.
Can be single or double glazed.
A huge variety of performance-glass options to maximise energy efficiency.

Product Details

Brochure

Colour(Powder Coat Range).pdf

Cancel

Download

WERS Ratings

Product Size

Maximum Frame Height (mm) 2400
Maximum Panel Width (mm) 1200
Maximum Glass Thickness (mm) ≤ 20

*Maximum Frame Height and Panel Widths indicated are interdependent and subject to individual site conditions.

Energy Performance

Uw Range 3 - 6.2
SHGC Range 0.21 - 0.72

AS2047

Tested + Certified

ACOUSTICS

Tested + Certified

Livable
Housing Design

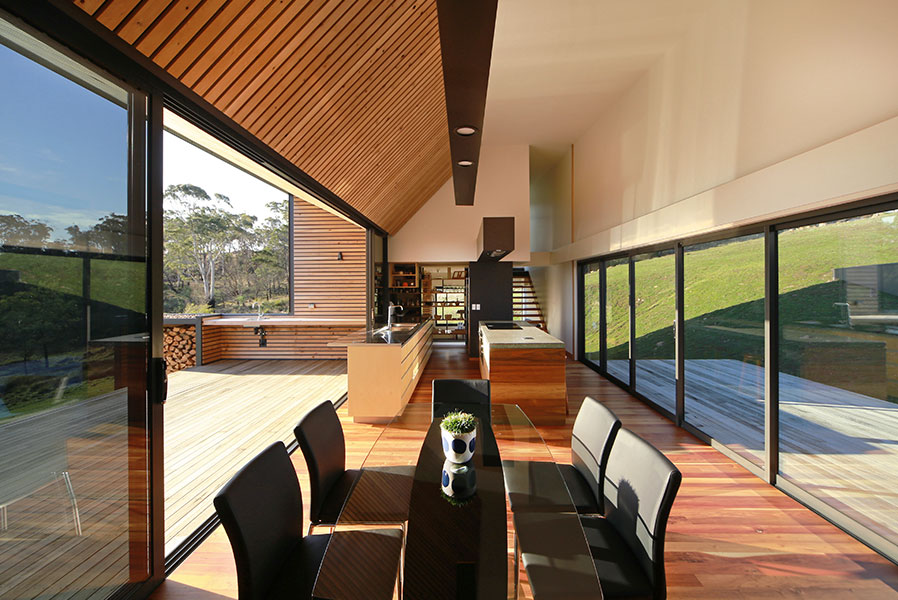

Gallery

Key Features

The Series 541 sliding door has been successfully tested for compliance with AS 2047.
This sliding door 102mm frame with 26mm thick stiles.
The Series 541 sliding door provides an optional meeting stile strengths cover a large variety of design wind load areas.
The meeting stiles in this sliding door have been designed to withstand high wind loads, and equally important the lock stile has enough body strength to carry the lock and not flex excessively while opening and closing the sliding door.
This sliding door provides two heavy duty sill options – one for standard water performance and a slightly taller sump type sill for high water performance.
Low line nursing home sill option also available for this sliding door.
Flydoors slide on the outside and run on large diameter wheels.
Glass door external meeting stile has built-in interlock to accept the flydoor interlock.
Sliding door panels can be re-handed on site (slide direction reversed).
Sliding door panels can be glazed with thick or insulating glass units.
Optional tall bottom rail available.

Screening

Screens housed wholly within frame.

Sill Options

Standard, high performance and nursing home sill options.

Glazing

Accepts single and double glazing up to 20mm IGUs.

Jamb Adaptors

Longreach and Homebush frame extenders.

Mullions

Heavy duty mullions available to suit site wind load conditions.

Rollers

Concealed heavy duty rollers for smooth operation.

Compatible Hardware

1 / 1

ANDO™

Single Point Surface Mounted Sliding Door Lock

ANDO™

Twin Point Surface Mounted Sliding Door Lock

ANDO™

Slimline Surface Mounted Sliding Door Lock

MIRO™

Sliding Door Lock
