Residential Sliding Window

Residential

Series 504

Residential Sliding Window

Share this product​

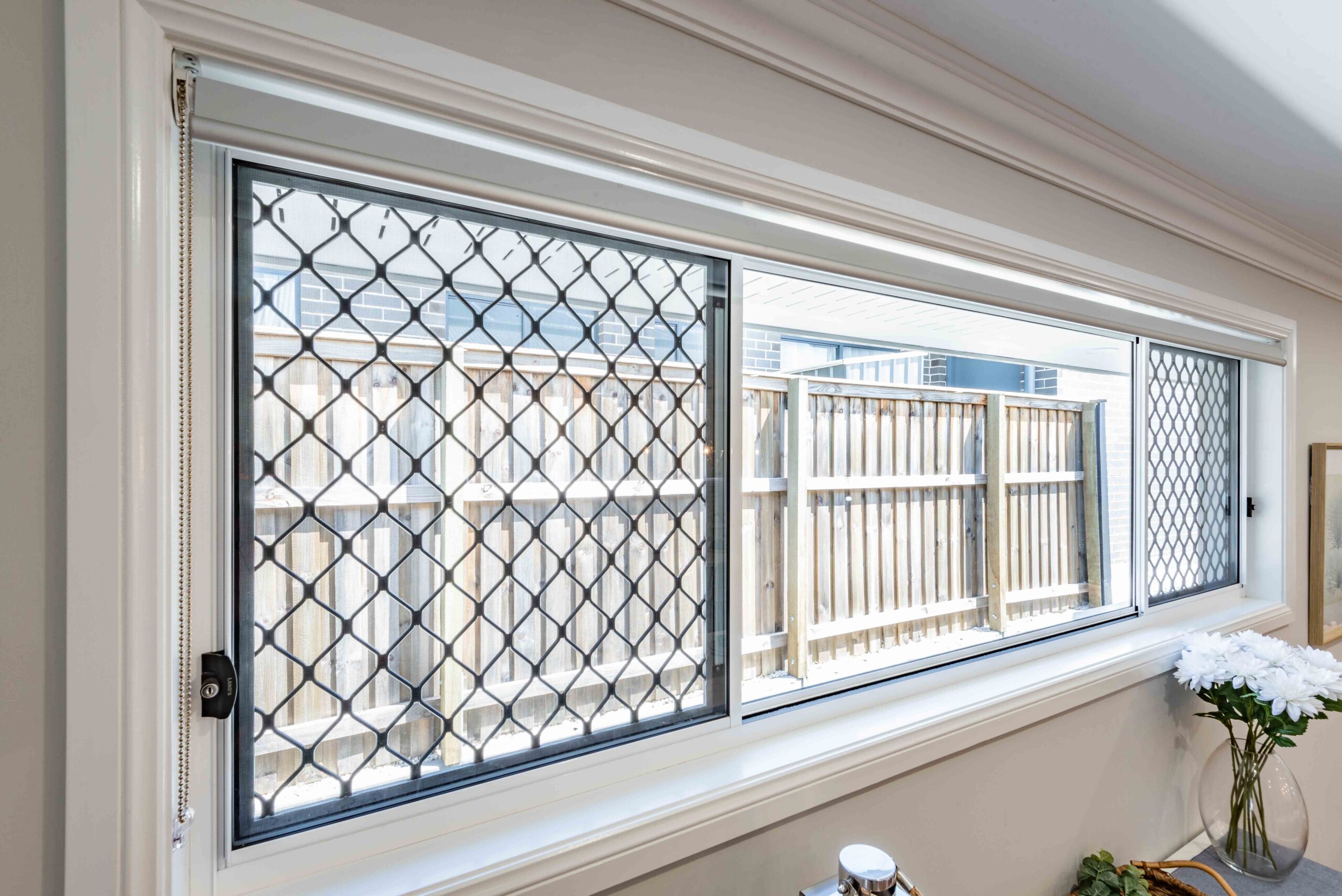

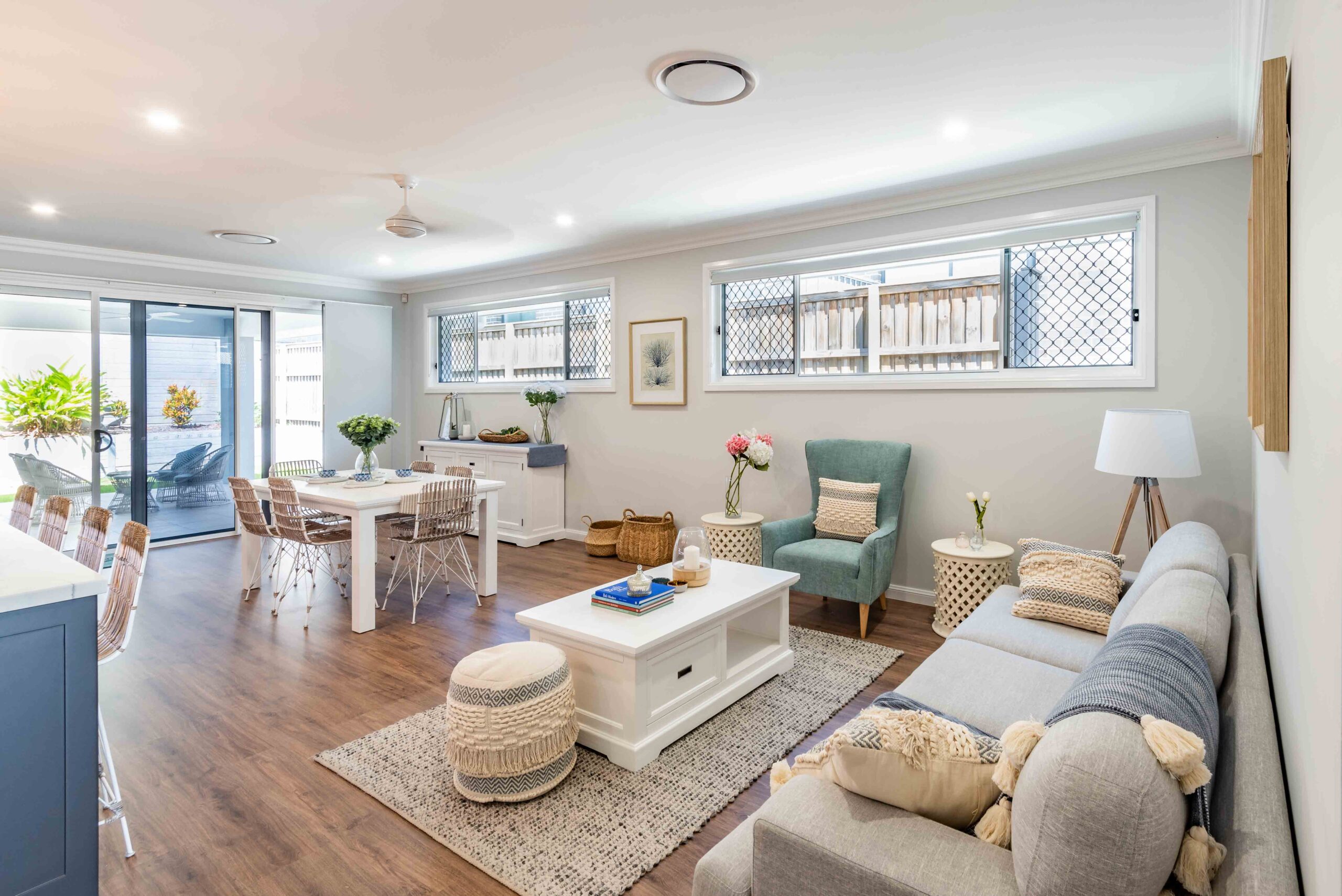

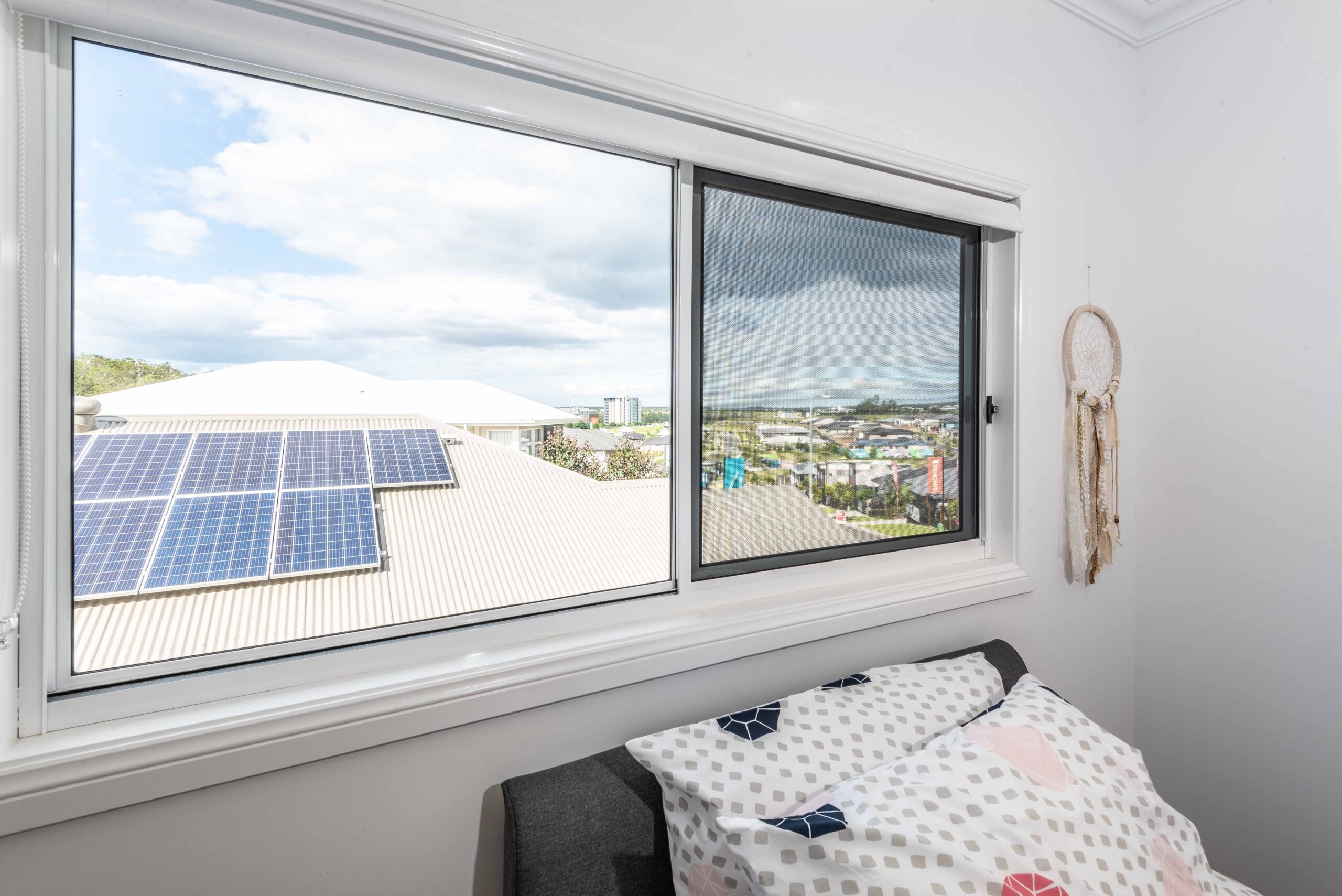

If you want maximum ventilation and views, the Vantage® Residential Series aluminium sliding window is the ideal choice.

Thank you for reading this post, don't forget to subscribe!
  • A slim 50mm frame or, if you prefer a chunkier look, 102mm frame extenders.
  • Wide sash wheels so your windows always work smoothly.
  • The option of high-performance sills if your home is exposed to harsh elements.
  • Flyscreens that tuck neatly into the head and sill – no more ugly rivets.
  • Built-in sill drainage for reduced condensation.

Product Details

Brochure
Colour(Powder Coat Range).pdf

Colour(Powder Coat Range).pdf

Cancel
Download
WERS Ratings WERS Ratings

Product Size

  • Maximum Frame Height (mm) 1500
  • Maximum Panel Width (mm) 1050
  • Maximum Glass Thickness (mm) ≤ 20

*Maximum Frame Height and Panel Widths indicated are interdependent and subject to individual site conditions.

Energy Performance

  • Uw Range 3.2 - 6.4
  • SHGC Range 0.3 - 0.73

AS2047

Tested + Certified

ACOUSTICS

Tested + Certified

BAL40

Tested + Certified

Key Features

  • The Series 504 sliding window has been successfully tested for compliance with AS 2047.
  • This sliding window provides optional meeting stile strengths to cover a large variety of design wind load areas.
  • It is easy to re-hand the sliding window after installation – change type ‘SF’ to ‘FS’.
  • Opening sliding window sashes run on large diameter wheels ensuring smooth operation.
  • 50mm wide perimeter sliding window frame will couple to a large variety of adaptors – no screws or rivets required, refer to installation section for more information.
  • Tubular type sump sills available for extra high water resistance.
  • The Series 504 sliding window fixed sill has built-in drainage to take care of condensation.
  • Fixed glass hard up against the outer face, no ledges to catch dust and beaded from the inside, this allows reglazing without expensive scaffolding.
  • Flyscreens on this sliding window tuck into the head and sill, held by nylon clips on the sides with no rivets.
  • The Series 504 sliding window can be supplied as tape and brace if required – frame can be built in and glazed sashes supplied later, this reduces the chance of mortar and chemical damage.
Locking Option

Locking Option

Central locking option.

Vent Lock

Vent Lock

Vent locking option for secure ventilation or restricted opening.
Interlock Options

Interlock Options

Various options to suit site conditions.

Transoms

Transoms

Standard transoms incorporating integrated drainage.

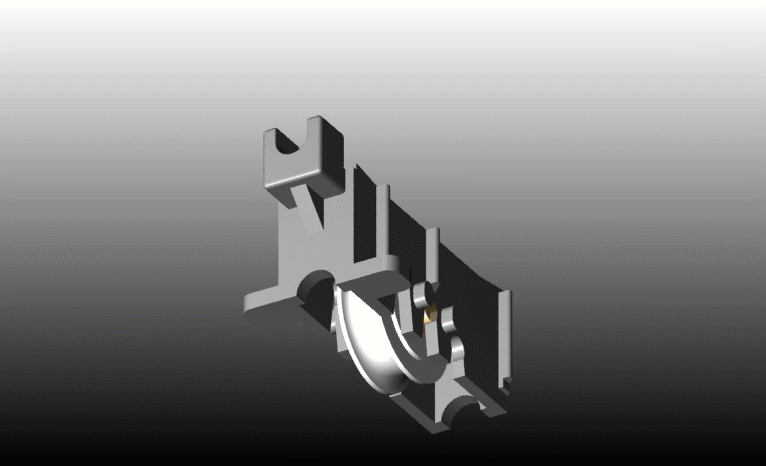

Rollers

Rollers

Concealed heavy duty rollers for smooth operation.

Replacement Trims

Replacement Trims

Series 504R will accept replacement window trims for a finished look on retrofits
