Residential Stacking Sliding Door

Residential

Series 542

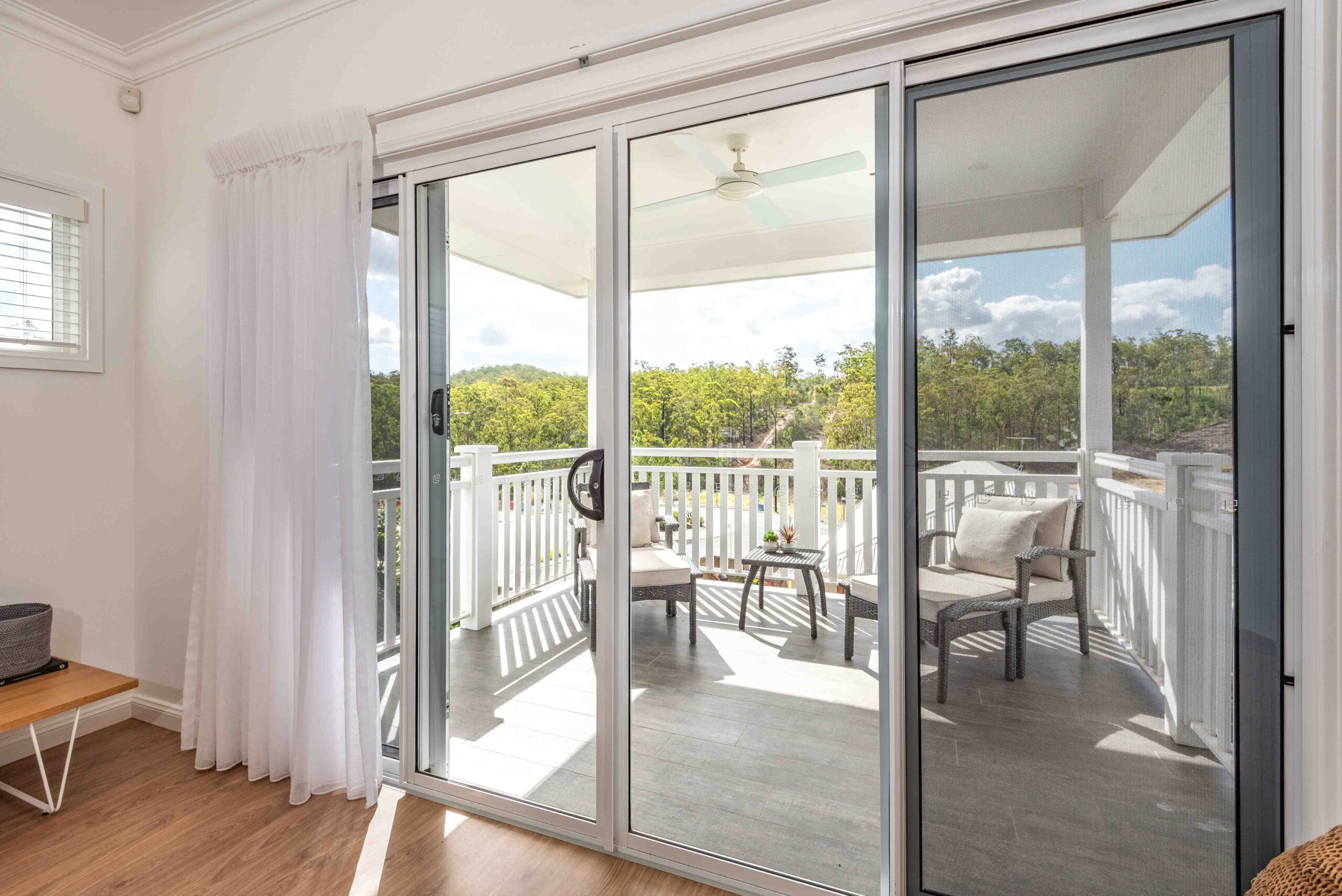

Residential Stacking Sliding Door

Share this product​

Want wide-opening windows that let you take full advantage of your patio or deck? Say hello to the Vantage® Residential Series DStacker™ stacking sliding door.

Thank you for reading this post, don't forget to subscribe!
  • Three-panel stacking door opens to two-thirds of its width. And if you select a bi-parting option, it can span eight metres!
  • Seamlessly connects your home to the great outdoors.
  • Great for ventilation.
  • Flyscreens that tuck neatly into the head and sill – no more ugly rivets.
  • Unused internal tracks are filled to keep the door sill clear from dust and debris.
  • Can be single or double-glazed.
  • Heavy duty rollers smooth operation.

Product Details

Brochure
Colour(Powder Coat Range).pdf

Colour(Powder Coat Range).pdf

Cancel
Download
WERS Ratings WERS Ratings

Product Size

  • Maximum Frame Height (mm) 2700
  • Maximum Panel Width (mm) 1350
  • Maximum Glass Thickness (mm) ≤ 20

*Maximum Frame Height and Panel Widths indicated are interdependent and subject to individual site conditions.

Energy Performance

  • Uw Range 3 - 6.2
  • SHGC Range 0.21 - 0.72

AS2047

Tested + Certified

ACOUSTICS

Tested + Certified

BAL40

Tested + Certified

Livable
Housing Design

Key Features

  • High water resistance of 300Pa allows these stacking doors to be installed into most residential projects.
  • Series 542 stacking doors can be fabricated as ‘XXF’, ‘FXX’, ‘FXXXXF’, ‘XF’, ‘FX’, ‘FXF’, ‘XFF’, ‘FFX’ and ‘FXXF’.
  • The accompanying optional stacking multi-panel external flydoor system is snapped to the main frame. This applied flydoor system may not be required on high rise apartments.
  • The 109mm wide perimeter frame on this stacking door will couple to a large variety of Vantage adaptors.
  • Flat external fillers creates a clean closed-off frame appearance. On the sill, the infills guide water away from the door panels and improve water resistance.
  • Unused internal and external frame recesses are closed with snap-in flat fillers for improved appearance.
  • Heavy stacking door panels can be fitted with double bogey wheels for smooth long-term operation. Running rails can be replaced in the future if necessary.
  • Stacking doors can be fitted into commercial type sub-sill for higher water resistance.
  • Flydoors are fitted with snap-on interlocks for improved appearance and labour saving.
Glazing

Glazing

Will accept single and double glazing up to 20mm IGUs.

Screening

Screening

Additional fly screen adaptors for multi-stacking doors.

Multi-stacking

Multi-stacking

Multi-stacking doors up to 3 panels in each direction.

Screen Sill

Screen Sill

Integrated fly screen sill for multi-stacking applications.

Sill Options

Sill Options

Semi and fully recessed sill options.
