SlideMASTER™ Sliding Door (Bottom Rolling)

Commercial, Residential

Series 704B

SlideMASTER™ Sliding Door (Bottom Rolling)

Share this product​

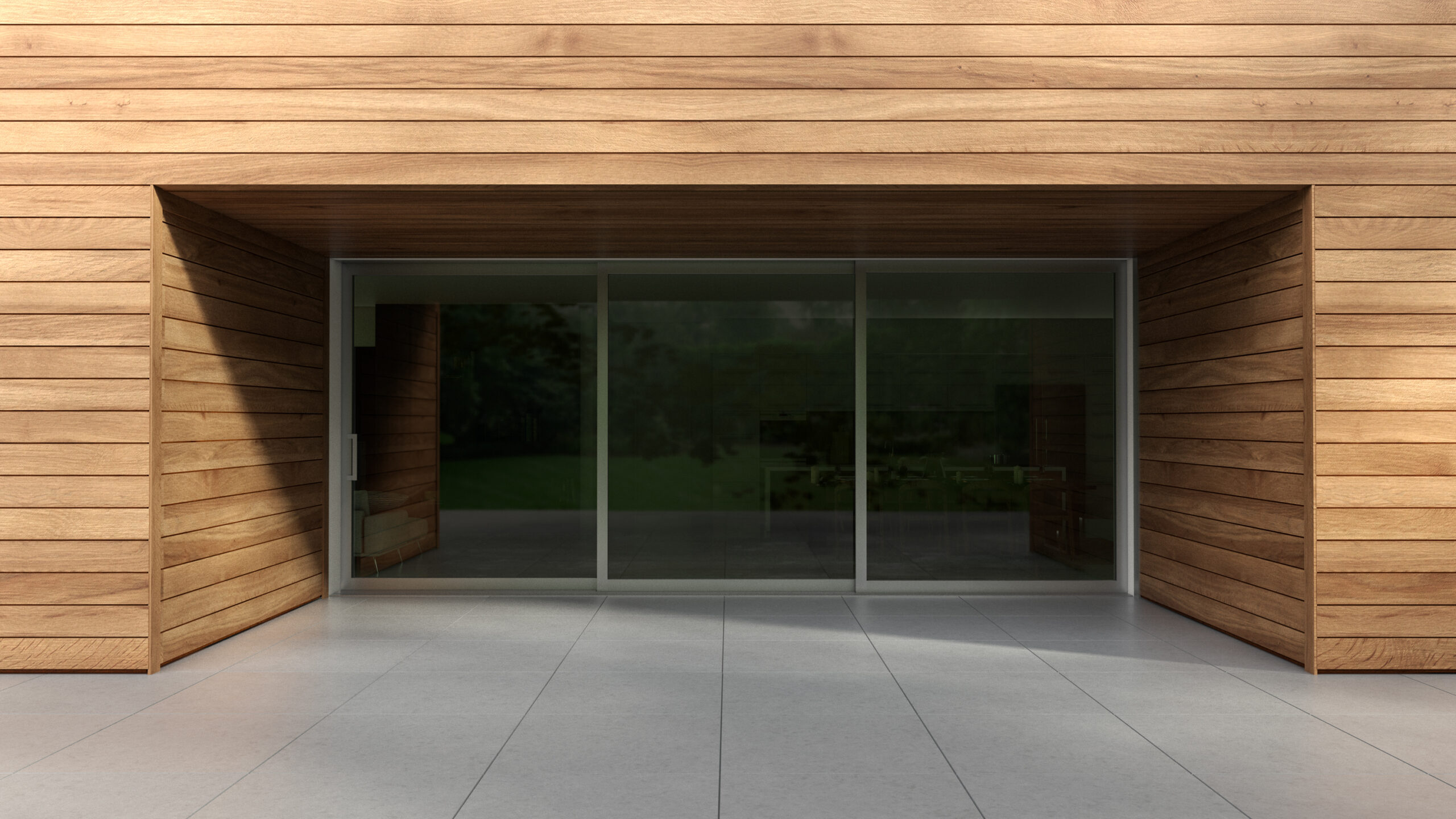

The bottom rolling SlideMASTER™ Stacking Sliding Door is designed for sliding door applications where bold wide panels are required and a minimal sill is preferred. The low line sill – only 35mm high – can be seamlessly recessed into the floor for a smooth transition between inside and outside living spaces. The SlideMASTER™ aluminium sliding door is a great choice for architecturally designed homes opening onto alfresco areas.

Thank you for reading this post, don't forget to subscribe!
  • Sliding door panels can be made with very large, up to 3300mm high x 2500mm wide
  • AS1428.1 wheelchair compliant sill
  • A range of sliding door configuration options including single and double sliding door panels, bi-parting sliding doors and corner sliding doors.
  • Compatible with Centor Screens for the ultimate solution in screening your home against flys and bugs. There is an alternative sliding stacking flydoor system which can be fitted to the outside of the door if a more conventional solution is desired.
  • A wide range of locking options are available including stylish ICON Stainless Steel handles.
  • Heavy duty rollers to ensure smooth sliding door operation and satisfaction for generations.
  • Optional high performance sill available for exposed lcoations.

Product Details

Brochure
Care & Maintenance(For your Windows & Doors).pdf

Care & Maintenance(For your Windows & Doors).pdf

Colour(Powder Coat Range).pdf

Colour(Powder Coat Range).pdf

Elevateu2122(Aluminium Systems).pdf

Elevateu2122(Aluminium Systems).pdf

Hardware(For Windows & Doors).pdf

Hardware(For Windows & Doors).pdf

Cancel
Download
WERS Ratings WERS Ratings

Product Size

  • Maximum Frame Height (mm) 3300
  • Maximum Panel Width (mm) 2500
  • Maximum Glass Thickness (mm) ≤ 24

*Maximum Frame Height and Panel Widths indicated are interdependent and subject to individual site conditions.

Energy Performance

  • Uw Range 3 - 6.2
  • SHGC Range 0.21 - 0.66

AS2047

Tested + Certified

BAL40

Tested + Certified

Livable
Housing Design

Key Features

  • Series 704B is a bottom rolling sliding door with minimal sill recesses.
  • AS14281.1 wheelchair compliant sill creating a continuous path of travel as required to meet the National Construction Code.
  • Sliding doors have been tested for compliance with the relevant Australian Standards.  Achieved a high water resistance of 450Pa with 55mm high sill. The 35mm sill is rated at 300Pa water resistance based on tests carried out on a similar sliding door/sill configuration.
  • Patented moulded nylon turbulence diverters protect the meeting stile junction at sill, guiding air and turbulence away from the inside.
  • The extra strong multi hollow meeting stiles allow large sliding doors to be fabricated in high wind load areas.
  • This door has been tested to 3300mm high and tested to 2500mm wide.
  • These panels are always fabricated with low bottom rail and rail stiffeners.
  • There are a large variety of sliding door combinations (XF,  FX, FXXF,  XXF,  FXX,  FXXXXF,  FX^XF,  FXX^XXF and cavity sliding doors ).
  • We can fit Centor roller screens behind Series 704 sliding doors up to 7500mm wide.
  • There is an alternative sliding stacking flydoor system that can be fitted on the outside.
  • Sliding doors can be fitted with surface mounted multipoint deadlock, mortice lock or multi point mortice lock.
  • Bottom rolling sliding doors run on heavy duty double or quad bogey wheel carriages.
  • Aluminium sub-sills are standard under Series 704B doors. We have a variety of sub-sills to choose from. We also offer heavy duty sub-heads.
  • Sub-sills are fitted with integrated co-extruded Santoprene drainage hole cover flap to prevent blow-back.
  • Sliding door panels will accept glass up to 8.50mm and 14.76mm thick single glazed or 20mm and 24mm double glazed IGU’s.
  • Optional AWS Ventient passive ventilation system can be fitted into tubular sub-head on 102mm and 150mm
Lowline and high performance sill options

Lowline and high performance sill options

2 sill options, 35mm lowline sill and 45mm sill for  applications requiring improved water performance

Bottom rolling panels

Bottom rolling panels

Panels are supported on heavy duty bottom rollers for smooth operation - no need for overhad lintel support
