SlideMASTER™ Sliding Door (Recessed)

Share this product

With recessed bottom rails, this elegant SlideMASTER™ door has all the hallmarks of a European inspired sliding door system with the benefit of being designed for Australian building conditions and environments.

Thank you for reading this post, don't forget to subscribe!

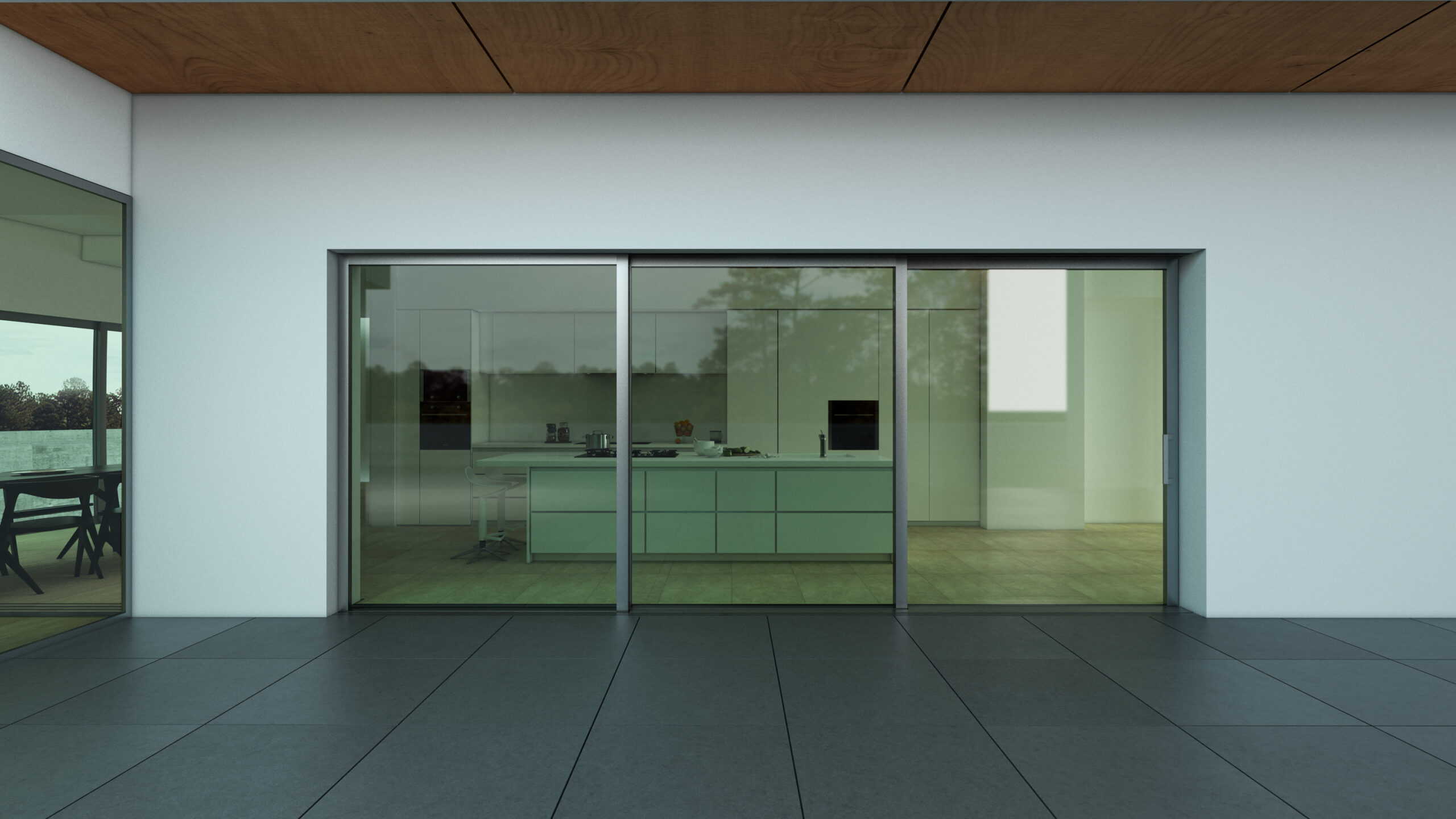

The recessed bottom rail creates clear glass sight lines for a truly stylish architectural finish.

Top hung door design allows doors to glide smoothly
A wide range of configuration options
Excellent weather performance
Tall, wide panels will accept a wide range of glass options

Product Details

Brochure

Care & Maintenance(For your Windows & Doors).pdf

Colour(Powder Coat Range).pdf

Elevateu2122(Aluminium Systems).pdf

Hardware(For Windows & Doors).pdf

Cancel

Download

WERS Ratings

Product Size

Maximum Frame Height (mm) 3300
Maximum Panel Width (mm) 2500
Maximum Glass Thickness (mm) ≤ 24

*Maximum Frame Height and Panel Widths indicated are interdependent and subject to individual site conditions.

Energy Performance

Uw Range 3 - 6.2
SHGC Range 0.15 - 0.59

BAL40

Tested + Certified

Gallery

Key Features

Series 704R is a top hung with a bottom rail that is completely recessed into the sill.
The custom Centor E3 quad rollers are fully adjustable up and down when doors are in the frame.
Doors have been tested for compliance with the relevant Australian Standards. Achieved a high water resistance of up to 300Pa.
Patented moulded nylon turbulence diverters protect the meeting stile junction at sill, guiding air and turbulence away from the inside.
The extra strong multi hollow meeting stiles allow large sliding doors to be fabricated in high wind load areas, refer panel strength tables earlier in this Section.
This door has been tested to 3300mm high and tested to 2500mm wide.
There are a large variety of door combinations (XF, FX, FXXF, XXF, FXX, FXXXXF and cavity sliding doors ).
We can fit Centor roller screens behind Series 704 sliding doors up to 7500mm wide.
Square clean lines with soft radius edges on internal meeting stile corners.
Doors can be fitted with surface mounted multipoint deadlock, mortice lock or multi point mortice lock.
Aluminium sub-sills are standard under Series 704R doors. We have a variety of sub-sills to choose from.
Sub-sills are fitted with integrated co-extruded Santoprene drainage hole cover flap to prevent blow-back.
Door panels will accept glass up to 8.50mm and 14.76mm thick single glazed or 20mm and 24mm double glazed IGU’s.

Recessed Bottom Rail

Fully recessed bottom rail provides a clear glass sightline at the sill for an elegant appearance. Combine with a FlowTHRU drain for the ultimate flush sill solution.

Compatible Hardware

1 / 1

ANDO™

Sliding Door Pull Handle

ANDO™

Twin Point Surface Mounted Sliding Door Lock

Complementary Products

1 / 1

Centor™ Screening

FlowTHRU™ Drain

AWS Trickle Vent

Project Features

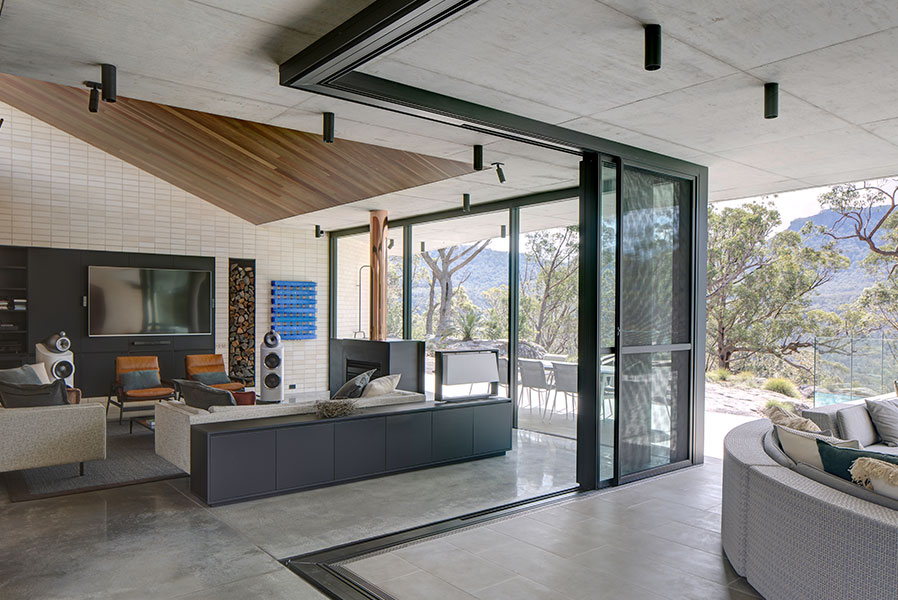

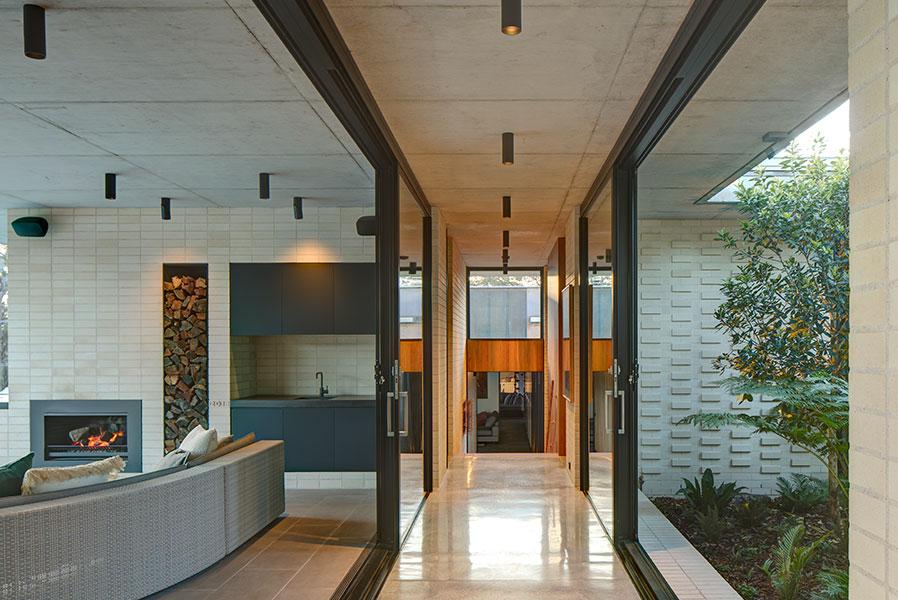

KV House
