Architectural Sliding Window 150mm Frame

Series 662

Architectural Sliding Window 150mm Frame

Share this product​

For superior strength and elegant styling in very large installations, you simply can’t beat these commercial-grade sliding windows.

Thank you for reading this post, don't forget to subscribe!
  • Extra strong sashes carry large spans of glass, tested for strength and performance in high wind and exposed areas to deliver energy efficiency and great comfort in even the harshest environments.
  • The convenient double sash design allows both fixed and opening sashes to be installed, replaced and/or reglazed from inside the building – which is incredibly useful in hard to reach places.
  • Choose from a massive range of configurations, with and without highlights and/or lowlights, to give you full design flexibility for your project.

Product Details

Brochure
Colour(Powder Coat Range).pdf

Colour(Powder Coat Range).pdf

Cancel
Download

Product Size

  • Maximum Frame Height (mm) 1600
  • Maximum Panel Width (mm) 1350
  • Maximum Glass Thickness (mm) ≤ 20

*Maximum Frame Height and Panel Widths indicated are interdependent and subject to individual site conditions.

Energy Performance

  • Uw Range
  • SHGC Range

AS2047

Tested + Certified

Key Features

  • Custom 150mm Elevate™ horizontal framing with Architectural series sash.
  • The extra strong sashes allow large sash windows to be fabricated for high wind load areas.
  • Double sash design with a fixed external sash.
  • Both fixed and opening sashes can be installed, replaced and/or reglazed from inside the building. This could be an important feature in elevated situations.
  • There are a large variety of window combinations possible (SF, FS, SS, SFS or FSSF) with and without highlights/lowlights.
  • Sashes run on heavy duty wheel carriages.
  • Unwanted frame recesses are fitted with snap-in flat closers to ensure that the clean looks are maintained.
  • Sub-sill is standard on Series 662 commercial sliding windows.

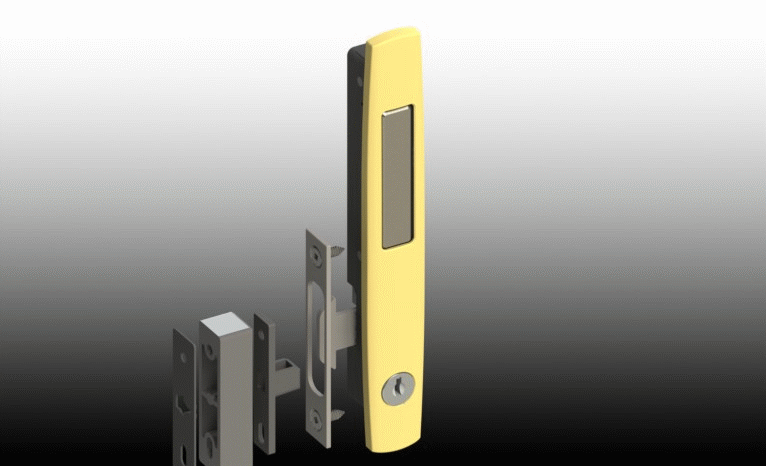

ANDO Mortice Lock

ANDO Mortice Lock

Custom ANDO™ mortice locks with colour matched aluminium cover plate

Custom Sub-sill

Custom Sub-sill

Custom sub-sill has central support leg to carry the weight of heavy sliding sashes.

ICON Mortice Lock

ICON Mortice Lock

Accepts ICON Stainles Steel custom mortice lock
