Thermally Broken 150mm CentreGLAZE™ Framing

Share this product

Do you have a large area but struggle for comfort? ThermalHEART CentreGLAZE™ Framing 150mm is the ideal complement to premium residential and commercial applications where energy efficiency is a priority.

Thank you for reading this post, don't forget to subscribe!

ThermalHEART technology delivers premium comfort and year-round liveability inside your home
Beautiful frames provides a chunkier, architectural-style design and plenty of support for larger windows.
This range delivers up to 33% more efficiency than standard double-glazed windows. Perfect for reducing those energy bills!

Product Details

Brochure

ThermalHEARTu2122(THERMALLY BROKEN SYSTEMS FOR MAXIMUM EFFICIENCY & COMFORT).pdf

Cancel

Download

WERS Ratings

Product Size

Maximum Frame Height (mm) Various
Maximum Panel Width (mm) Various
Maximum Glass Thickness (mm) ≤ 28

*Maximum Frame Height and Panel Widths indicated are interdependent and subject to individual site conditions.

Energy Performance

Uw Range 2.1 - 3
SHGC Range 0.26 - 0.61

AS2047

Tested + Certified

ACOUSTICS

Tested + Certified

BAL40

Tested + Certified

Gallery

Key Features

Series 806 is an innovative thermally broken aluminium CentreGLAZE™ framing system measuring 150mm x 60mm.
Incorporating ThermalHEART™ technology, Series 806 delivers excellent thermal performance and is ideal for tall commercial frames where minimising heat or cold transfer is desired.
To enable excellent thermal performance to be achieved, a “Thermal Break” is incorporated which separates the inside and outside elements of the frame providing an insulator to minimise the transfer of heat or cold between the elements.
This insulating strip is manufactured from polyamide and delivers the same structural properties as aluminium to ensure the integrity of the system is maintained.
Series 806 thermally broken CentreGLAZE™ framing has been designed specifically to accept 24mm Insulating Glass Units (IGUs).
The 28mm deep glazing pocket is designed to accept thick heavy IGUs and allows glass to be installed easily with room to spare (catering for glass manufacturing and installation tolerances).
This deep glazing pocket provides a 12mm bight as required by the IGU manufacturers and ensures compliance with glass warranties.
Reinforced tall glazing bead at sill tolerates high negative wind loads.
True captive glazing wedge on the outside reduces the chance of vandalism.
Wet top (silicone) glazing option also available.
Glazing wedges are recessed into the framing for a clean aesthetic appearance.
Wide range of thermally broken sub-frames to cover most installations, including sub-sills with integrated nailing fin ideal for residential installations.
Internal and external swing hinged door thresholds are also thermally broken.

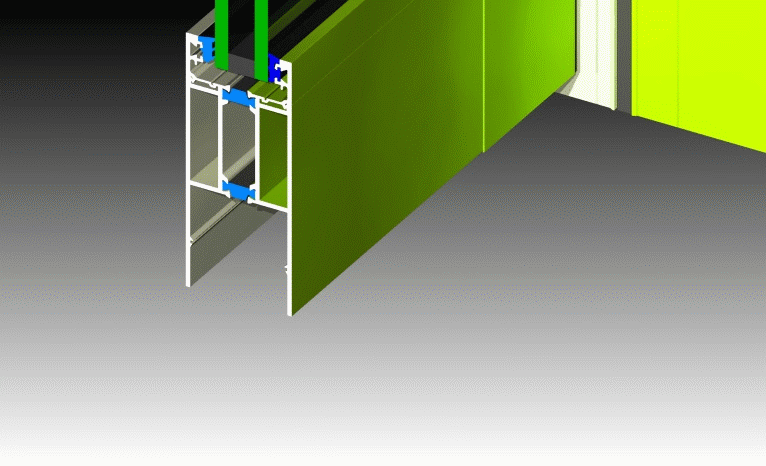

Sub-Sill

Sub-sill designed to support heavy double glazed frames and maintain the thermal break.

Accepts 24mm IGUs

Designed to accept 24mm IGUs.Glazing pocket gives required 12mm glass bight on IGUs.

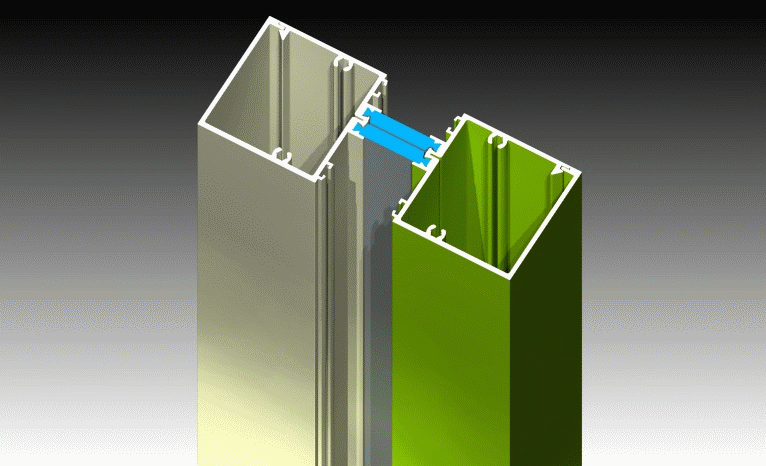

Mullions

We offer both snap together and expansion mullions.

Door Options

Accepts hinged, pivot or sliding doors. Doors are 50mm thick and will accept 24mm IGUs.

Internal Opening Thresholds

Threshold for internal opening doors, incorporates internal anti-blowback valve.

External Opening Thresholds

Dedicated threshold for external opening doors when you are looking for water resistance.
