Series 826

Thermally Broken 150mm FrontGLAZE™ Framing

Share this product

For amazing energy efficiency across even the widest glass spans, you can’t go past 150mm ThermalHEART FrontGLAZE™ framing.

Thank you for reading this post, don't forget to subscribe!

The strongest, boldest frame on the market, allowing for large glass expanses that give any space the wow factor.
Architectural-style design ensures there is no compromise on finish, delivering a flush, sleek exterior to your residential or commercial build.
ThermalHEART technology means your heat and cold transfer is minimised and you save on costly energy bills.
Used in conjunction with double glazing, FrontGLAZE™ Framing delivers up to 33% more efficiency than standard double-glazed windows.
Designed to fit multiple glass thicknesses, these frames allow easy and always compliant installation by your local supplier.

Product Details

Brochure

ThermalHEARTu2122(THERMALLY BROKEN SYSTEMS FOR MAXIMUM EFFICIENCY & COMFORT).pdf

Cancel

Download

WERS Ratings

Product Size

Maximum Frame Height (mm) Various
Maximum Panel Width (mm) Various
Maximum Glass Thickness (mm) ≤ 28

*Maximum Frame Height and Panel Widths indicated are interdependent and subject to individual site conditions.

Energy Performance

Uw Range 2.2 - 3.2
SHGC Range 0.21 - 0.62

AS2047

Tested + Certified

ACOUSTICS

Tested + Certified

BAL40

Tested + Certified

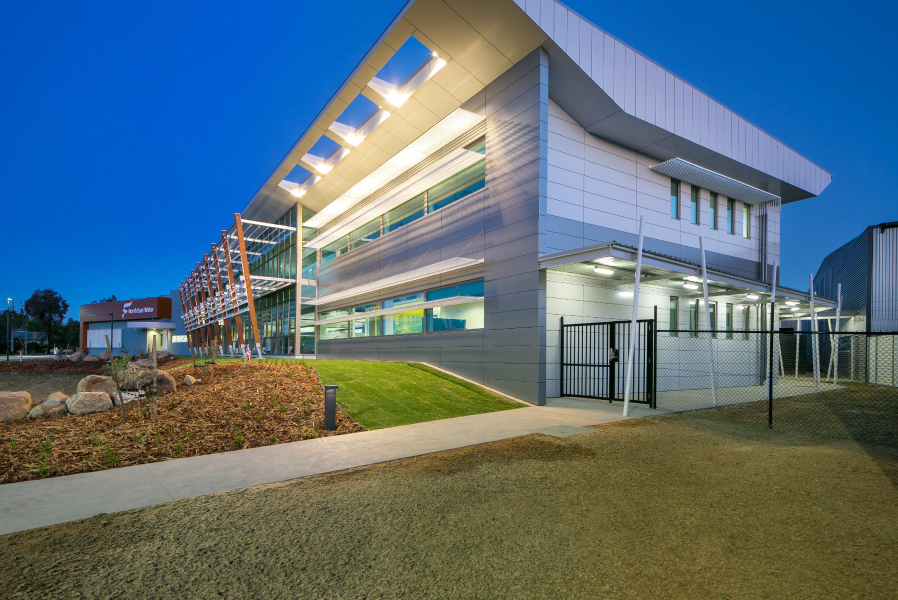

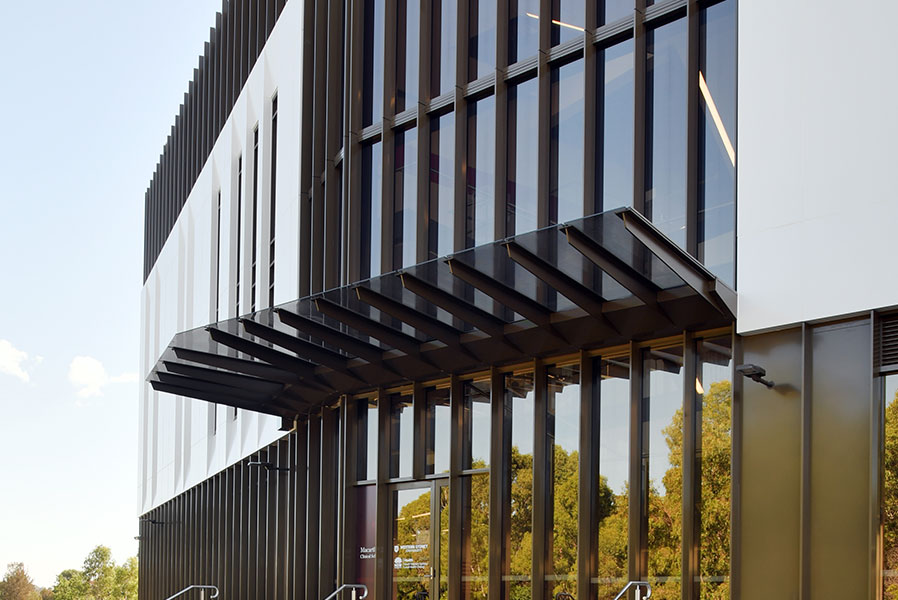

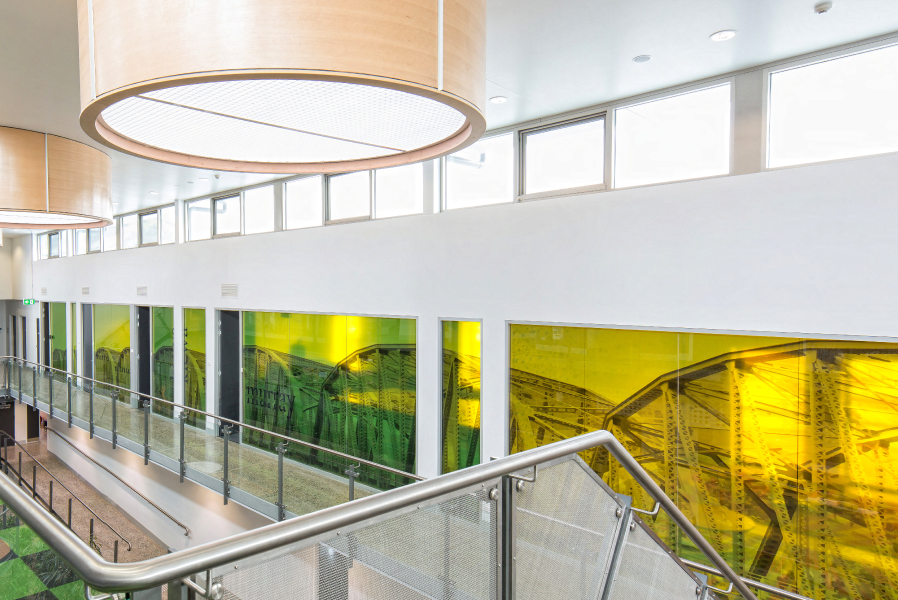

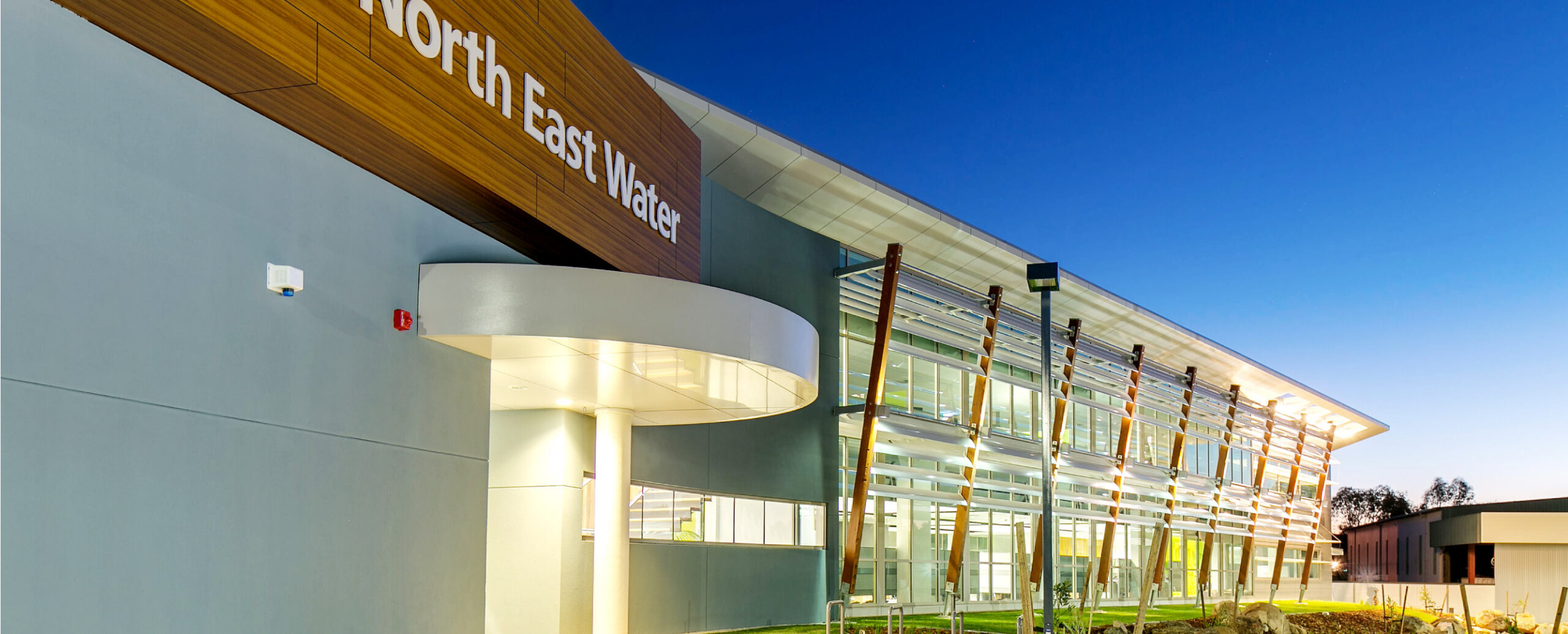

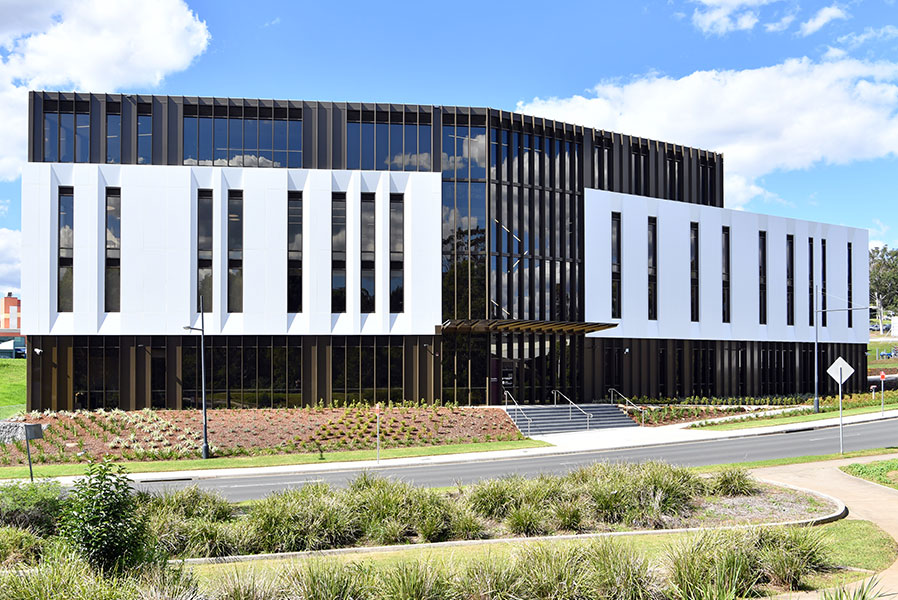

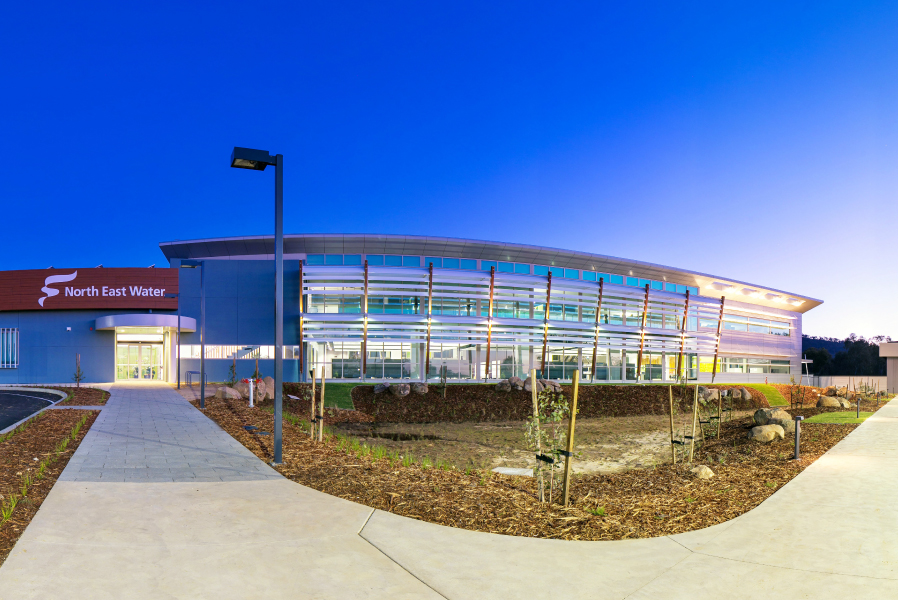

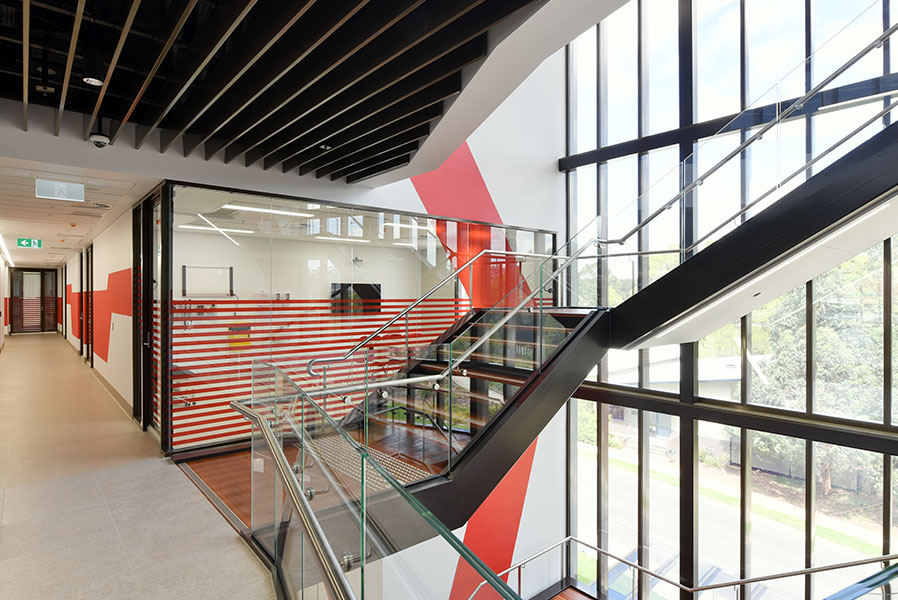

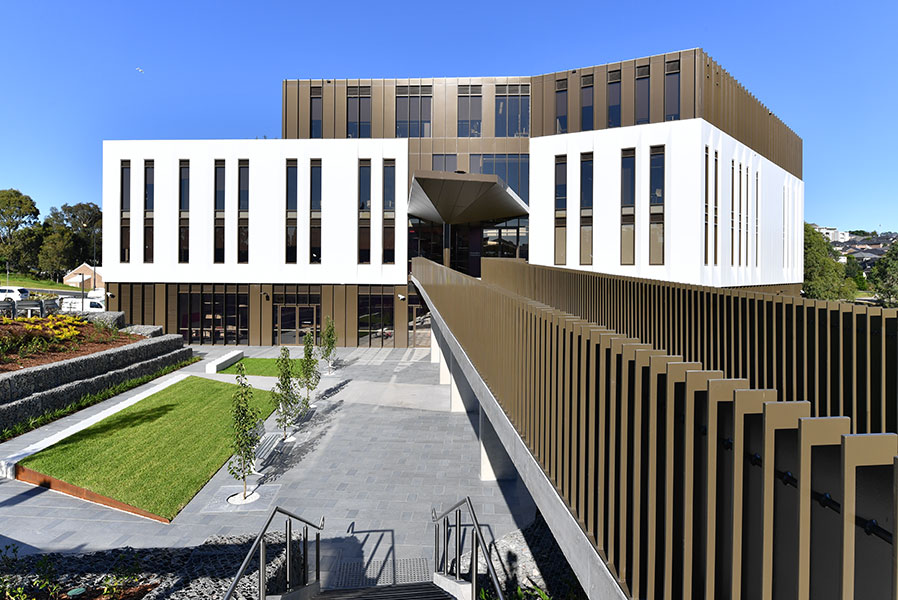

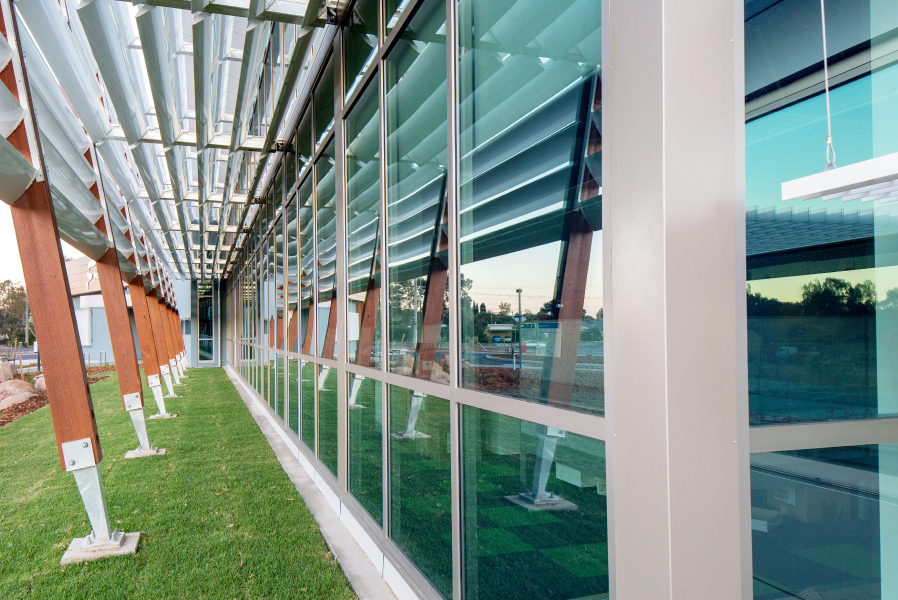

Gallery

Key Features

Series 826 is an innovative thermally broken aluminium FrontGLAZE™ framing system measuring 150mm x 60mm.
Incorporating ThermalHEART™ technology, Series 826 delivers excellent thermal performance and is ideal for tall commercial frames where minimising heat or cold transfer is desired.
To enable excellent thermal performance to be achieved, a “Thermal Break” is incorporated which separates the inside and outside elements of the frame providing an insulator to minimise the transfer of heat or cold between the elements.
This insulating strip is manufactured from polyamide and delivers the same structural properties as aluminium to ensure the integrity of the system is maintained
Series 826 FrontGLAZE™ framing has been designed specifically to accept 24mm Insulating Glass Units (IGUs).
The 28mm deep glazing pocket positioned at the front of the framing is designed to accept thick heavy IGUs and allows glass to be installed easily with room to spare (catering for glass manufacturing and installation tolerances).
This deep glazing pocket provides a 12mm bight as required by the IGU manufacturers and ensures compliance with glass warranties.
Reinforced tall glazing bead at sill tolerates high negative wind loads.
Available as internally glazed or externally glazed (bead on the outside).
True captive glazing wedge allows reglazing from inside – ideal in elevated applications. The captive wedge also offers increased security.
Glazing wedges are recessed into the framing for a clean aesthetic appearance.
Wide range of thermally broken sub-frames to cover most installations, including sub-sills with integrated nailing fin ideal for residential installations.
Internal and external swing hinged door thresholds are also thermally broken.

Sub-Sill

Sub-sill designed to support heavy double glazed frames and maintain the thermal break.

Sub-Jamb

Sub-jamb with pressure bead on the inner face can make installation easier and cleaner.

Concealed Drainage

Can be glazed from inside or outside. Concealed drainage holes.

Mullions

We offer both snap together and expansion mullions.

Heavy Duty Hinges

Heavy duty adjustable hinges support heavy door panels. Wide stiles accept wide backset locks.

Anti-Blowback Valve

Weather resistant threshold with internal anti-blowback valve to reduce air infiltration.
