Thermally Broken Awning/Casement Window

Residential

Series 726

Thermally Broken Awning/Casement Window

Share this product​

These awning and casement windows from our Vantage® ThermalHEART™ range are the ultimate choice to boost your home’s comfort and energy efficiency.

Thank you for reading this post, don't forget to subscribe!

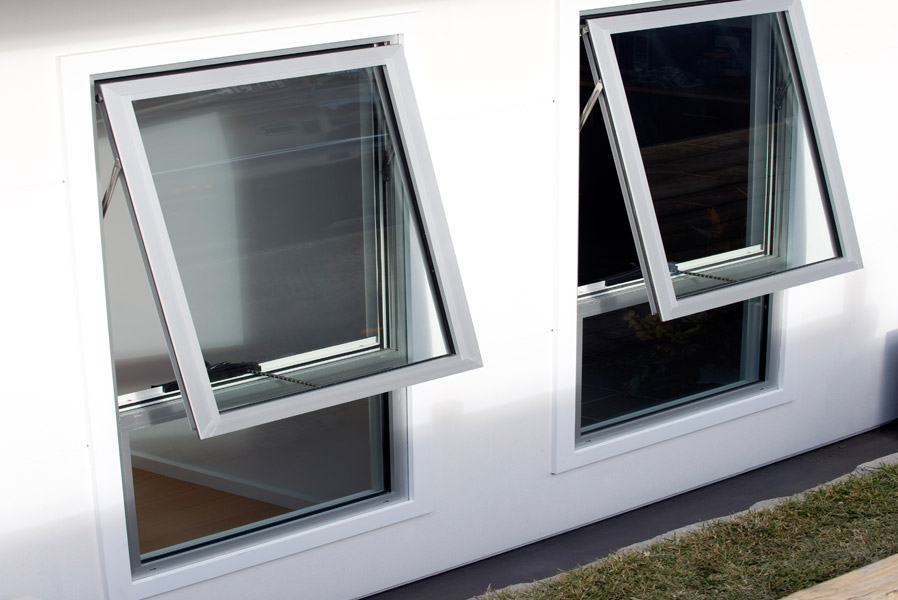

  • Choose top-hinged awning sashes or side-hinged casement sashes.
  • Perfect for architecturally designed homes.
  • Clean, bold frames incorporate a thermal insulation strip to minimise the transfer of heat and cold.
  • Sashes seal tightly against the frame for greater energy efficiency.
  • Used in conjunction with double glazing, they’re up to 32% more efficient than standard double-glazed windows.
  • The option of integrated flyscreens that nest neatly into the frame – no more ugly rivets or unsightly screws.
  • Your choice of manual or electric hardware.

Product Details

Brochure
ThermalHEARTu2122(THERMALLY BROKEN SYSTEMS FOR MAXIMUM EFFICIENCY & COMFORT).pdf

ThermalHEARTu2122(THERMALLY BROKEN SYSTEMS FOR MAXIMUM EFFICIENCY & COMFORT).pdf

Cancel
Download
WERS Ratings WERS Ratings

Product Size

  • Maximum Frame Height (mm) Various
  • Maximum Panel Width (mm) Various
  • Maximum Glass Thickness (mm) ≤ 32

*Maximum Frame Height and Panel Widths indicated are interdependent and subject to individual site conditions.

Energy Performance

  • Uw Range 2.6 - 6
  • SHGC Range 0.18 - 0.47

AS2047

Tested + Certified

ACOUSTICS

Tested + Certified

BAL40

Tested + Certified

CYCLONE

Tested + Certified

Key Features

Seried 726 Fixed Frame

  • Series 726 can be manufactured as a fixed frame window.
  • Series 726 awning windows incorporates ThermalHEART™ technology giving a true wide thermal break between the outside and inside faces. WERS (Window Energy Rating System) data shows that using the same IGU in a ThermalHEART™ awning is 32% more efficient than a standard non-thermally broken awning window.
  • A major advantage with ThermalHEART™ awning windows in cold climates is the reduction in internal condensation. This saves potential damage to timber reveals and paint finishes.
  • ThermalHEART™ is also suitable for hot climates – thermally broken windows and doors will help to reduce the airconditioning load in a hot climate.
  • We offer ThermalHEART™ in a range of stocked colours including dual colour ClearMIST™ (Clear anodised exterior and Surfmist powder coat interior).

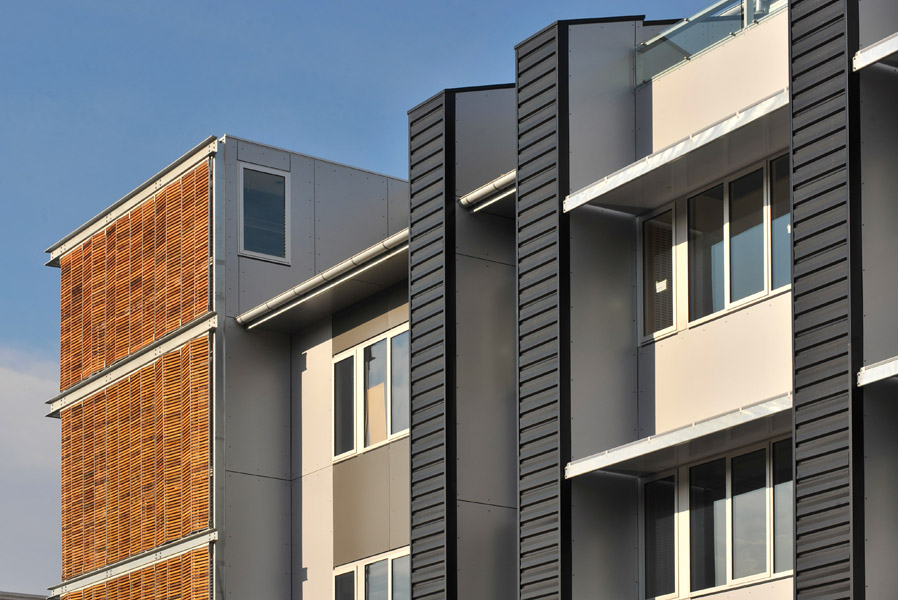

  • This awning window has been tested for compliance with the relevant Australian Standards and achieved a very high water resistance of 600Pa, this makes this awning window suitable for most applications including multi-storey apartments.
  • Very low air infiltration, makes this awning window suitable for airconditioned buildings.
  • The extra strong sash allows large sash windows to be fabricated for high wind load areas.
  • This awning window system can be fabricated as a fixed window system.
  • NOTE:Casment configuration not suitable for BAL-40 applications.
Thermal Break

Thermal Break

Incorporates multiple thermal breaks to minimise transfer of heat.

Colour Options

Colour Options

Available in a range of single or dual colour options.

Glazing

Glazing

Will accept single or double glazing up to 32mm IGU.

Winder Options

Winder Options

Manual chainwinders can be fitted with integrated flyscreens.
