Home > Products > Thermally Broken Bi-fold Door

Residential

Series 730

Thermally Broken Bi-fold Door

Share this product

These Vantage® ThermalHEART™ thermally broken bi-fold doors are the perfect way to maximise your home’s energy efficiency and comfort.

Thank you for reading this post, don't forget to subscribe!

Incorporates an innovative insulation strip to minimise transfer of heat and cold.
Wide openings to maximise views and natural light.
Clean, bold, architectural lines.
Door panels run on heavy-duty bottom rollers.
No need for an overhead lintel to support the frame.
Easily installed.
A huge range of hardware options.
Lever compression locking for the ultimate in security and airtightness.

Product Details

Brochure

ThermalHEARTu2122(THERMALLY BROKEN SYSTEMS FOR MAXIMUM EFFICIENCY & COMFORT).pdf

Cancel

Download

WERS Ratings

Product Size

Maximum Frame Height (mm) 2600
Maximum Panel Width (mm) 900
Maximum Glass Thickness (mm) ≤ 32

*Maximum Frame Height and Panel Widths indicated are interdependent and subject to individual site conditions.

Energy Performance

Uw Range 2.2 - 5.1
SHGC Range 0.18 - 0.52

AS2047

Tested + Certified

ACOUSTICS

Tested + Certified

BAL40

Tested + Certified

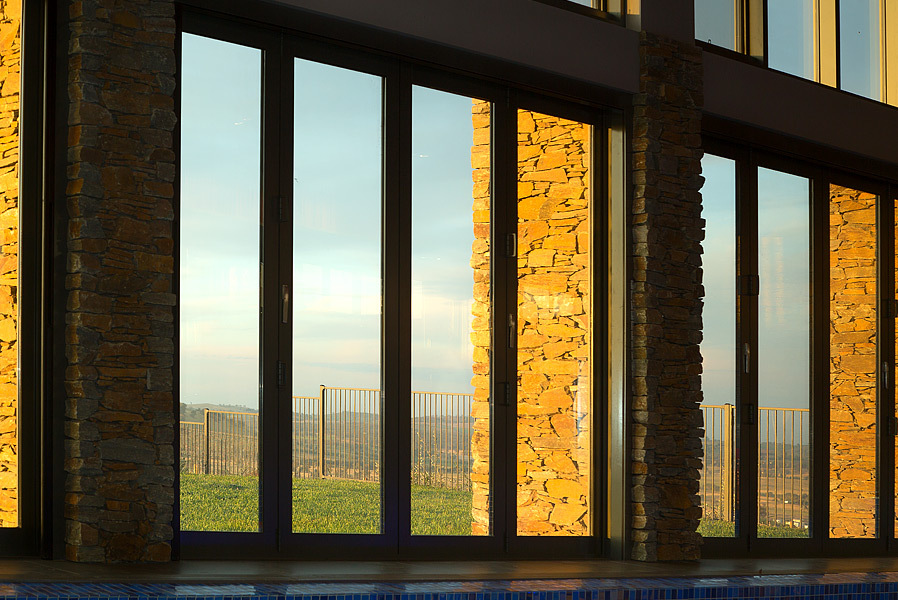

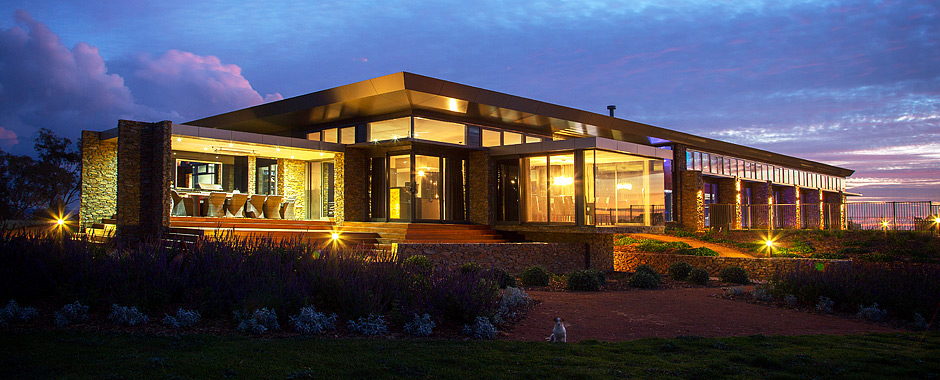

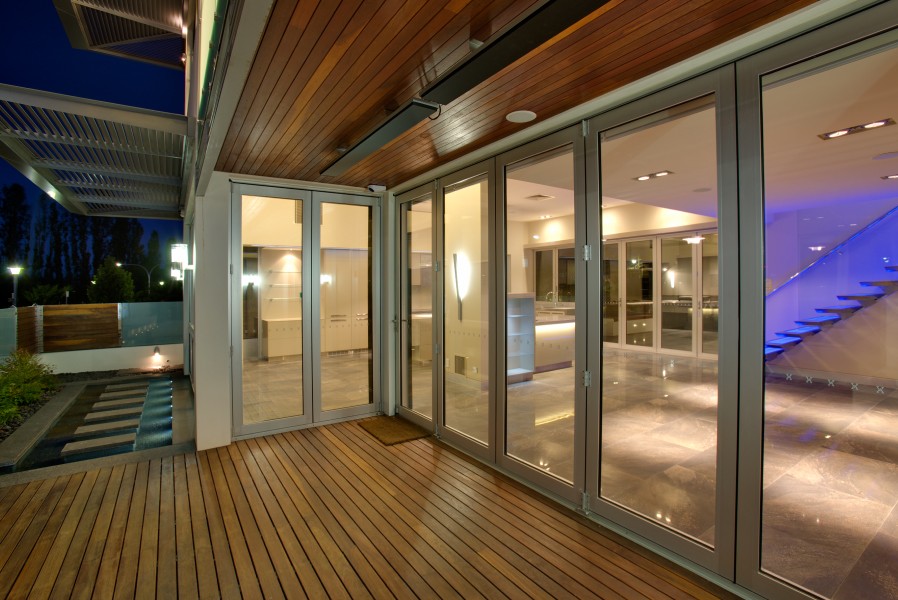

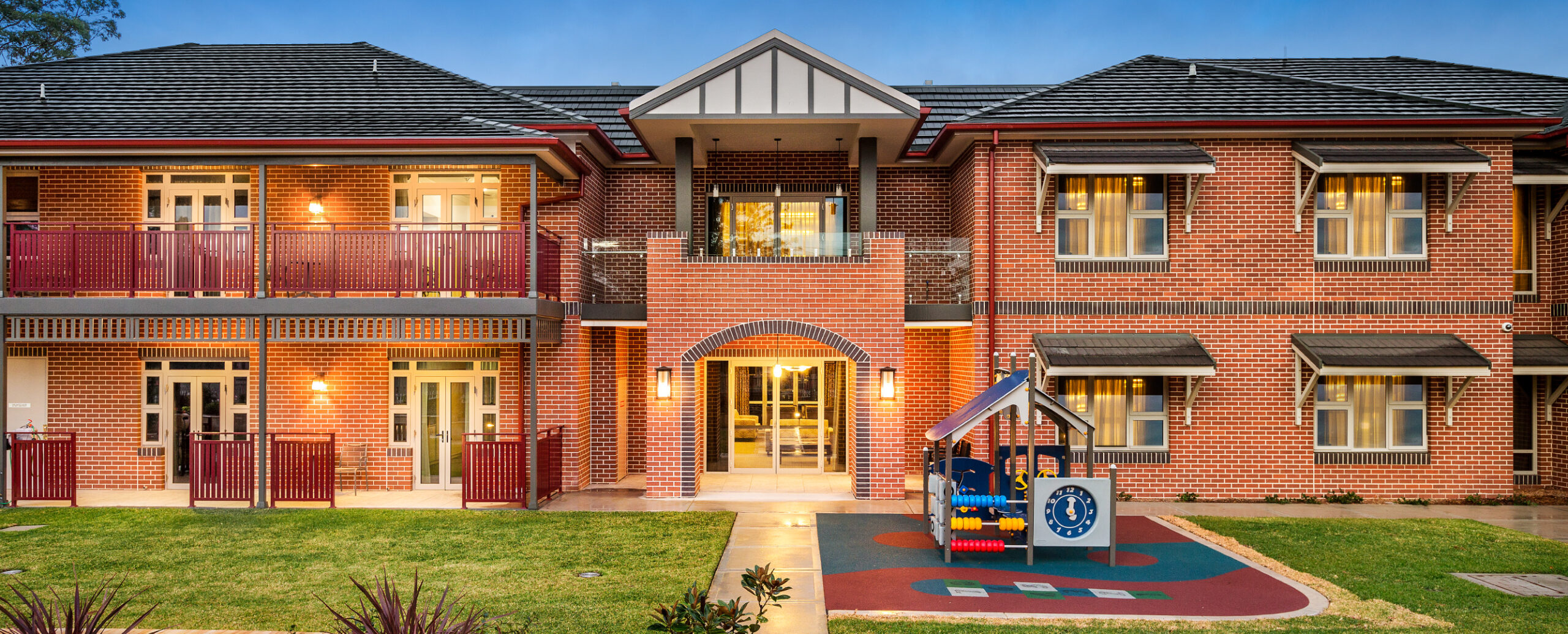

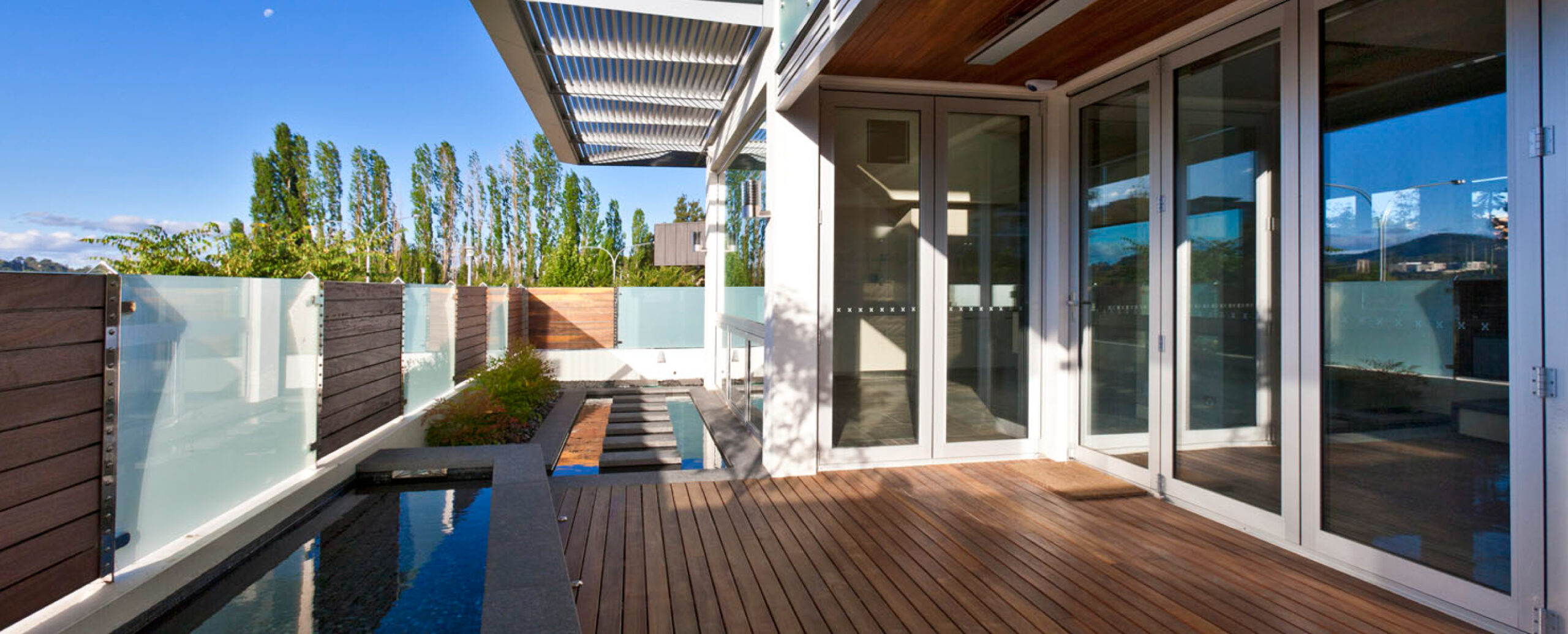

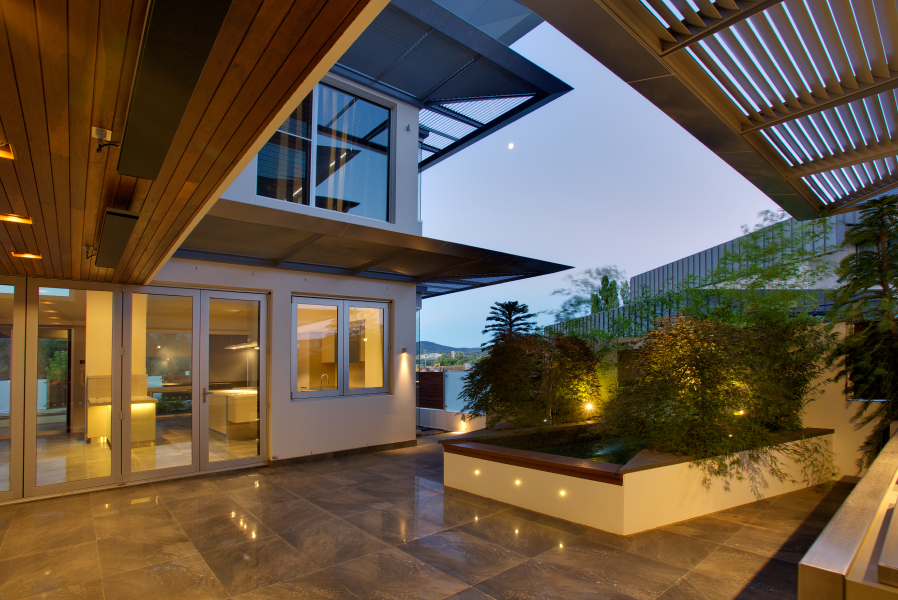

Gallery

Key Features

Series 730 bi-fold door incorporates ThermalHEART™ technology giving a true wide thermal break between the outside and inside faces. WERS (Window Energy Rating System) data shows that using the same IGU in a ThermalHEART™ Bi-fold door is 32% more efficient than a standard non-thermally broken Bi-fold door.
A major advantage with ThermalHEART™ bi-fold doors in cold climates is the reduction in internal condensation. This saves potential damage to timber reveals and paint finishes. ThermalHEART™ is also suitable for hot climates.
We offer ThermalHEART™ in a range of stocked colours including dual colour ClearMIST™, contact your local Vantage fabricator for details.
Running bi-fold doors on bottom rollers reduces the problems caused by lintel sag and allows us to offer optional highlights.
This bi-fold door has been tested for compliance with the relevant Australian Standards and achieved a high water resistance of 380Pa. This makes the product suitable for most residential applications.
Low air infiltration, makes this bi-fold door suitable for airconditioned buildings.
The extra strong door stiles on this bi-fold door allow oversize door panels to be fabricated.
Sharp square external glazing beads are standard on this bi-fold door product.
100mm frame and transom have a soft 2mm internal radius.
Series 730 bi-fold doors will accept Centor™ S1 screen.

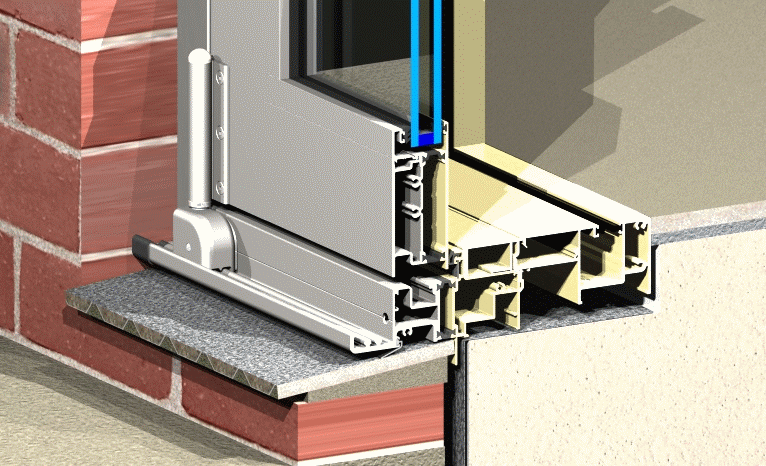

Sill Options

Stepped and fully recessed sill options available.

Bottom Rollers

Heavy duty bottom rollers colour matched or stainless steel.

Screening

Integrated Centor™ S1 retractable flyscreen available.

Screen Sill Detail

Flush threshold incorporating Centor™ S1 retractable flyscreen.

Floor Channels

Ability to incorporate floor channels for Bi-fold and screen.

Internal Trim

Jambs can be concealed using internal wall linings.
