Residential

Series 729

Thermally Broken Hinged Door

Share this product

Boost your home’s comfort and energy efficiency with thermally broken hinged doors from the Vantage® ThermalHEART® range.

Thank you for reading this post, don't forget to subscribe!

Incorporates an innovative insulation strip to minimise transfer of heat and cold.
Make the most of your views and natural light without letting the cold in.
Combined with double glazing, they’re up to 33% more energy efficient than traditional double-glazed doors.
Create a clean, bold, architectural look.
Perfect as a single-entry door or pair of French Doors.
Heavy-duty hardware for excellent durability and operation.
Panels include lever-compression locking at four points for excellent security and airtightness.

Product Details

Brochure

ThermalHEARTu2122(THERMALLY BROKEN SYSTEMS FOR MAXIMUM EFFICIENCY & COMFORT).pdf

Cancel

Download

WERS Ratings

Product Size

Maximum Frame Height (mm) 2600
Maximum Panel Width (mm) 900
Maximum Glass Thickness (mm) ≤ 32

*Maximum Frame Height and Panel Widths indicated are interdependent and subject to individual site conditions.

Energy Performance

Uw Range 2.4 - 6.2
SHGC Range 0.18 - 0.47

AS2047

Tested + Certified

ACOUSTICS

Tested + Certified

BAL40

Tested + Certified

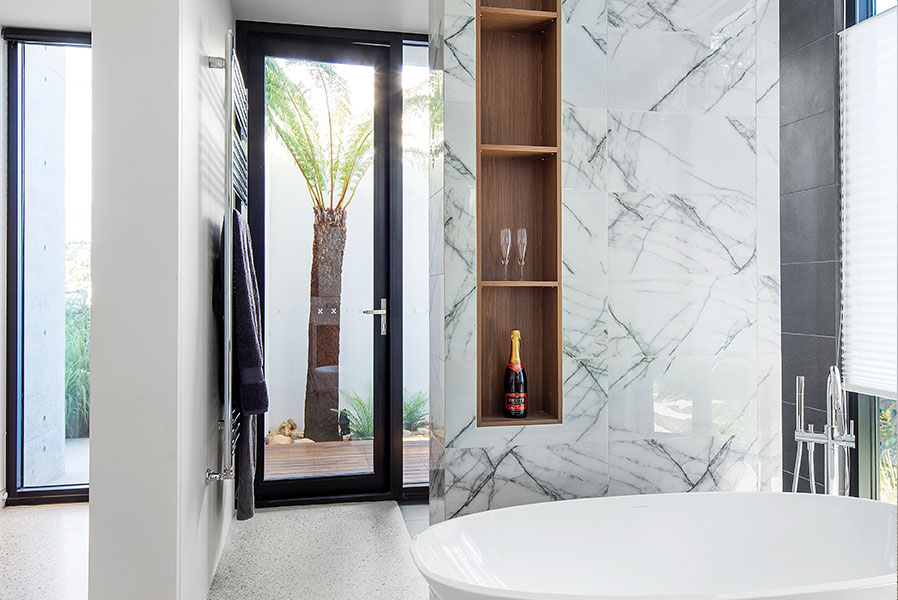

Gallery

Key Features

Series 729 hinged door incorporates ThermalHEART™ technology giving a true wide thermal break between the outside and inside faces. WERS (Window Energy Rating System) data shows that using the same IGU in a ThermalHEART™ hinged door is 32% more efficient than a standard non-thermally broken hinged door.
A major advantage with ThermalHEART™ hinged doors in cold climates is the reduction in internal condensation. This saves potential damage to timber reveals and floor finishes.
ThermalHEART™ is also suitable for hot climates – ThermalHEART™ windows and doors will help to reduce the cooling load on airconditioning units in hot climates.
We offer ThermalHEART™ in a range of stocked colours including dual colour ClearMIST™ (Clear anodised external with Surfmist powder coat internal).
The hinged doors have been tested for compliance with the relevant Australian Standards and achieved a high water resistance of 380Pa for external swing doors and 150Pa water resistance for internal opening doors, this making the product suitable for most residential applications.
Low air infiltration in hinged doors makes the product suitable for airconditioned buildings.
The extra strong hinged door stiles allow oversize door panels to be fabricated.
These hinged doors have sharp square external glazing beads are standard.
100mm frame and transom have a soft 2mm internal radius.

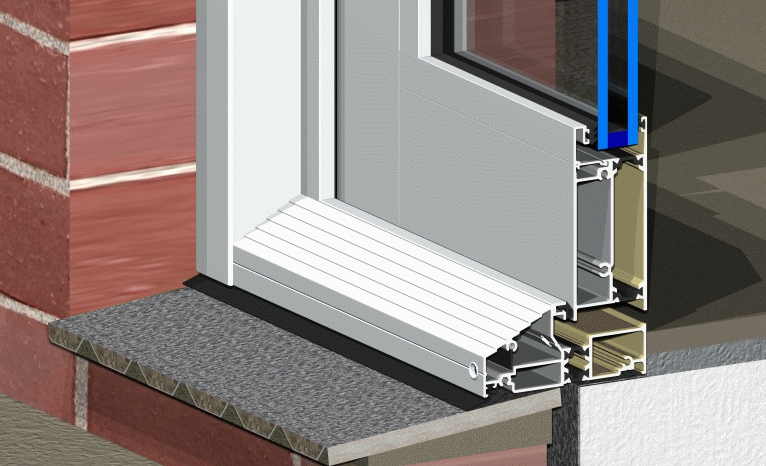

Threshold Options

Various open in and open out threshold design incorporating integrated drainage.

Screening

Fly screen fits seamlessly in door jamb.

Glazing

Will accept single or double glazing up to 32mm IGU.

Hinges

Parliament hinge option available for 180° opening.

Hardware

Accepts MIRO™ and ICON™ hardware.
