Thermally Broken Sliding Door

Residential

Series 731

Thermally Broken Sliding Door

Share this product​

Choose Vantage® ThermalHEART™ thermally broken sliding doors for a perfect balance of energy-efficiency and style. It’s the best of both worlds!

Thank you for reading this post, don't forget to subscribe!
  • Thermal insulation strip minimises the transfer of heat and cold.
  • Big, bold frames span wide openings up to 12 metres wide and 3 metres high.
  • Low Uw values deliver excellent insulation.
  • Combined with double-glazing they’re up to 32% more energy efficient than traditional double-glazed sliding doors.
  • Sliding panels run on heavy duty rollers for a lifetime of easy, smooth operation.
  • Unused frame tracks are filled with snap-in fillers for a neat, tidy appearance.
  • Sill can be recessed into a slab for a beautiful flush threshold.

Product Details

Brochure
ThermalHEARTu2122(THERMALLY BROKEN SYSTEMS FOR MAXIMUM EFFICIENCY & COMFORT).pdf

ThermalHEARTu2122(THERMALLY BROKEN SYSTEMS FOR MAXIMUM EFFICIENCY & COMFORT).pdf

Cancel
Download
WERS Ratings WERS Ratings

Product Size

  • Maximum Frame Height (mm) 3000
  • Maximum Panel Width (mm) 1995
  • Maximum Glass Thickness (mm) ≤ 32

*Maximum Frame Height and Panel Widths indicated are interdependent and subject to individual site conditions.

Energy Performance

  • Uw Range 2.2 - 5.1
  • SHGC Range 0.18 - 0.52

AS2047

Tested + Certified

ACOUSTICS

Tested + Certified

BAL40

Tested + Certified

Livable
Housing Design

Key Features

  • Series 731 sliding door incorporates ThermalHEART™ technology giving a true wide thermal break between the outside and inside faces. WERS (Window Energy Rating System) data shows that using the same IGU in a ThermalHEART™ sliding door is 32% more efficient than a standard non-thermally broken sliding door.
  • A major advantage with ThermalHEART™ in cold climates is the reduction in internal condensation. This saves potential damage to timber reveals and floor finishes.
  • ThermalHEART™ is also suitable for hot climates – ThermalHEART™ windows and doors will help to reduce the cooling load on airconditioning units in hot climates.
  • We offer ThermalHEART™ in a range of stocked colours including dual colour ClearMIST™ (Clear anodised external with Surfmist powder coat internal).
  • These sliding doors have been tested for compliance with the relevant Australian Standards and achieved a high water resistance of 300Pa, making the product suitable for most residential applications.
  • Low air infiltration makes these sliding doors suitable for air-conditioned buildings.
  • The extra strong door stiles in the sliding doors allow oversize door panels to be fabricated.
  • These sliding doors will accept Centor™ S4 screen.
Glazing

Glazing

Will accept single or double glazing up to 32mm IGU.

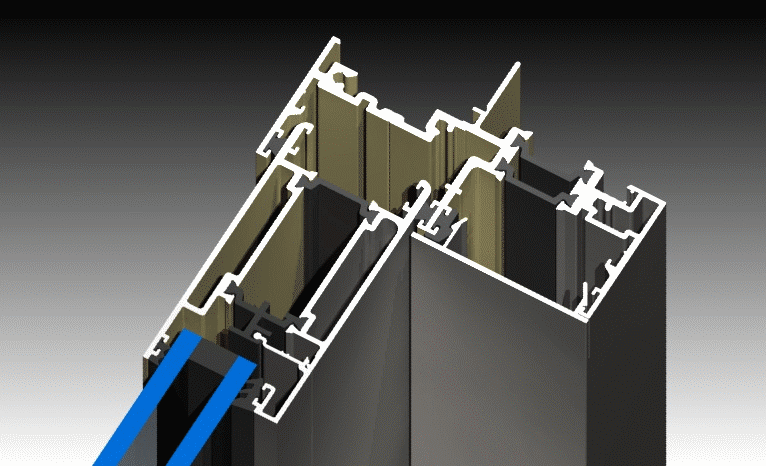

Thermal Break

Thermal Break

Incorporates multiple thermal breaks to minimise transfer of heat.

Mullion Options

Mullion Options

Standard and heavy duty mullions available to suit site wind load conditions.

Sill Detail

Sill Detail

Centor™ S1 retractable screens can be seamlessly incorporated.

Multi-Stacking

Multi-Stacking

4 panel stacking doors to enable wide openings to be spanned.

Heavy Duty Rollers

Heavy Duty Rollers

Concealed heavy duty rollers designed to support heavy panels and deliver smooth operation.
