ViewMASTER™ Bi-fold Door (bottom rolling)

Commercial, Residential

Series 412

ViewMASTER™ Bi-fold Door (bottom rolling)

Share this product​

For strength, beauty and whisper-quiet function, you can’t go past the ViewMaster bottom rolling bi-fold door!

Thank you for reading this post, don't forget to subscribe!
  • The system supports 50mm thick heavy-duty Series 50 and 52 door framing and is so strong it can carry panels up to 3000mm high.
  • With stainless steel bearing rollers in a heavy-duty concealed sill track, they’re not just strong, they’re stunning and built to last.
  • Surelock™ adjustment system delivers precision and the perfect fit every time.
  • Choose from great lever and lock options to suit a wide variety of style and security applications and finishes.
  • Rollers and pivots under the door panels are covered with a flexible silicone flap. It doesn’t just hide the mechanism but also keeps dust and water away from the rollers so they always move easily.
  • Tested to resist 450Pa water, they’re suitable for any environment throughout Australia. They can also be fitted with Centor Eco Screen for a retractable and discreet barrier against creepy crawlies.

Product Details

Brochure
Care & Maintenance(For your Windows & Doors).pdf

Care & Maintenance(For your Windows & Doors).pdf

Colour(Powder Coat Range).pdf

Colour(Powder Coat Range).pdf

Elevateu2122(Aluminium Systems).pdf

Elevateu2122(Aluminium Systems).pdf

Hardware(For Windows & Doors).pdf

Hardware(For Windows & Doors).pdf

Cancel
Download
WERS Ratings WERS Ratings

Product Size

  • Maximum Frame Height (mm) 3000
  • Maximum Panel Width (mm) 1000
  • Maximum Glass Thickness (mm) ≤ 28

*Maximum Frame Height and Panel Widths indicated are interdependent and subject to individual site conditions.

Energy Performance

  • Uw Range 3.3 - 6.1
  • SHGC Range 0.14 - 0.58

AS2047

Tested + Certified

ACOUSTICS

Tested + Certified

BAL40

Tested + Certified

Key Features

  • Series 412 Bi-fold door (bottom rollers) has been designed to accept the 50mm thick heavy duty Series 50 and 52 doors.
  • Bi-fold doors can be manufactured with compliant panels up to 3000mm high.
  • Series 412 bi-fold doors roll on Centor™ F3 stainless steel bearing rollers running in heavy duty concealed sill track.
  • Heavy duty F3 will carry bi-fold door panels up to 80kg.
  • The Surelock™ adjustment on the bottom pivots and carriers allow all panels to be lifted or lowered easily with a small flat screwdriver and spanner.
  • These bi-fold doors can be fitted with Centor S4 Eco Screen
  • Sill rollers and pivots are positioned under the door panels and covered with flexible silicone flap. This sill flap folds over the sill carrier brackets as they roll along the sill.
  • The sill flap on Series 412 bi-fold doors keeps dust and water away from the sill rollers.
  • As the rollers are under the doors there is no external projections. The 102mm frame is flush inside and out.
  • Carriers, pivots, hinges and fixings supplied in 304 / 316 stainless steel for the Series 412 bi-fold doors.
  • Top guide runs in semi rigid PVC channel insert to reduce noise for bi-fold doors.
  • Snap-on jamb adapter allows us to offer an extensive range of jambs to cover almost any situation.
  • Run through conventional CentreGLAZE™ jambs allow us to offer highlights over bi-fold doors with run through jambs. Run through jambs are significantly stronger and waterproof.
  • A variety of lever and lock options are available for this bi-fold door including multi-point locking for added security.
Recessed Sill Detail

Recessed Sill Detail

The sill can be recessed into floor finish and fitted with stainless steel Creative Drain drainage system.
Hardware

Hardware

A full range of hardware available including multiple 4-point locking mechanisms.
Screening

Screening

All Elevate™ systems can incorporate Centor roll-away screens.
Concealed Bottom Roller

Concealed Bottom Roller

Doors supported on concealed articulated rollers with built-in track sweeper.
Heavy Duty Head Guide

Heavy Duty Head Guide

The stainless steel head guide rolls in semi-rigid PVC guide to reduce operation noise.

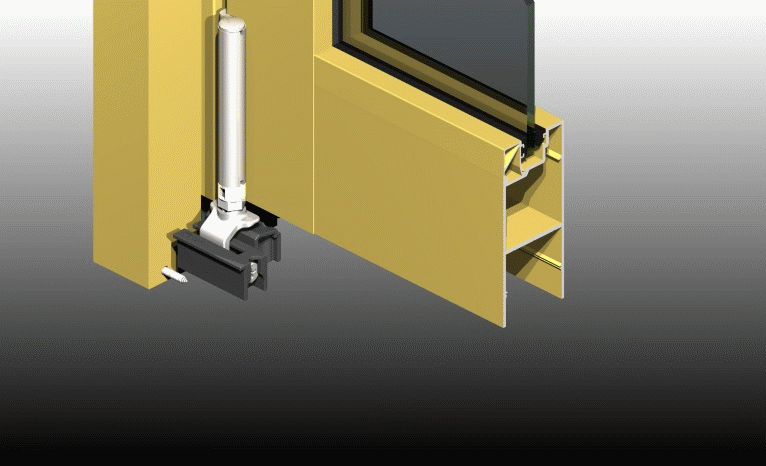

Adjustment

Adjustment

Door panels can be adjusted up, down and sideways.
